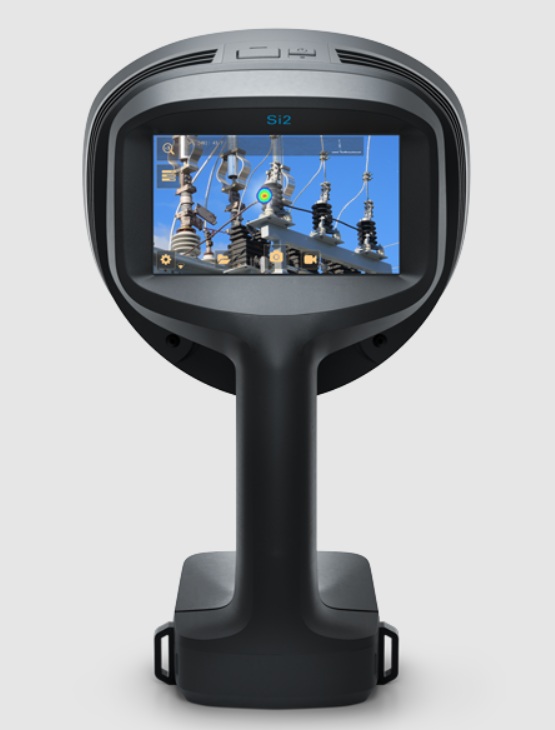

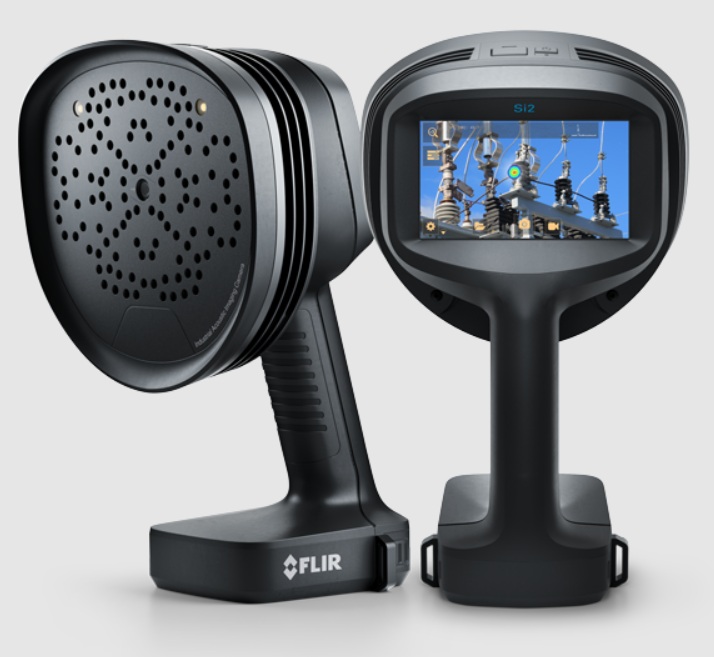

FLIR Si2-PD Acoustic Camera for Partial Discharge Detection

Code: Si2-PD




Datasheet PDF, 0.18 Mb


Description

Si2-PD™
Industrial Acoustic Imaging Camera for Partial Discharge Detection

Key Features
• Detect, locate, classify, and assess partial discharge (PD) faults from up to 200 m (656 ft) away
• Identify PD 30x smaller than ever before
• On-camera and software-based severity assessment of PD issues, and PD type classification provides best-in-class decision support
• One-handed operation with automatic tuning, 8x zoom, a 12 MP digital camera, and IP54 rating
• Made for enterprise scaling through the use of fleet management functionality so that managers can ensure the tools are being used and maintained properly

Main Applications
• Monitor transmission & distribution conductors and components at long distances easily and reduce need for emergency repairs
• Inspect substation transformers to detect PD issues early, before they result in a dangerous and costly explosion
• Find PD issues in any piece of high-voltage equipment to reduce public complaints of radio interference and audible noise

The Flir Si2-PD acoustic imaging camera helps you reduce maintenance costs for electrical equipment by offering an effective solution for partial discharge (PD) detection and response. This camera detects, locates, classifies, and assesses PD faults from up to 200 m (656 ft) away, identifying PD issues 30 times smaller than previously possible. It provides on-camera and software-based severity assessments, giving you the decision support needed for precise maintenance decisions.

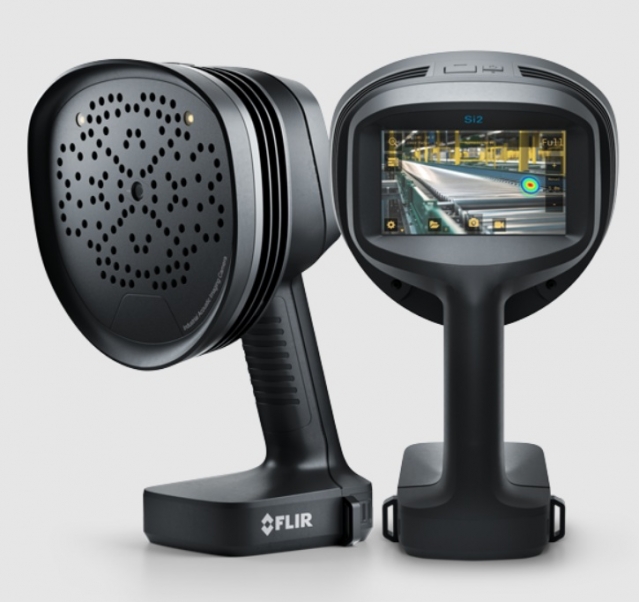

For specific applications, you can choose the Si2-LD for leak detection and bearing fault detection, or the Si2-Pro for comprehensive electric utility, leak detection, and bearing fault detection applications. These models are available in the related products section, allowing you to customize your maintenance approach to suit your needs.




Standard accessories

Camera
Battery (2 ea)
Battery charger
Power cable (4 ea)
Neck strap
Hard transport case
License card: FLIR Si-series Plugin for FLIR Thermal
Studio, Perpetual license
Printed documentation
USB memory stick



More products FLIR

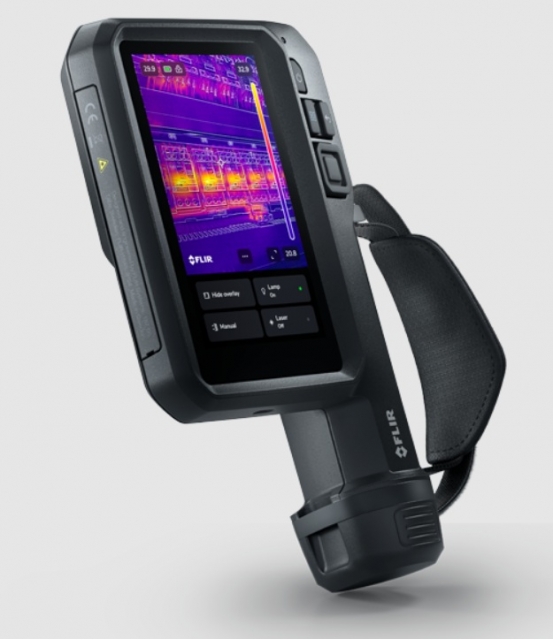

FLIR I34 INFRARED CAMERA WITH APPLICATION 240X320PXL

• App-Enabled Thermal Imaging Camera
• 240 × 320 thermal resolution
• <40 mK NETD



FLIR SI2-PD ACOUSTIC CAMERA FOR PARTIAL DISCHARGE DETECTION

• Detectează, localizează, clasifică și evaluează defectele de descărcare parțială (PD) de la până la 200 m (656 ft) distanță
• Identifică PD de 30 de ori mai mici ca niciodată
• Evaluarea severității problemelor PD, bazată pe cameră și pe software, și clasificarea tipului de PD oferă cel mai bun suport decizional din clasa sa
• Operare cu o singură mână cu reglare automată, zoom 8x, o cameră digitală de 12 MP și clasificare IP54

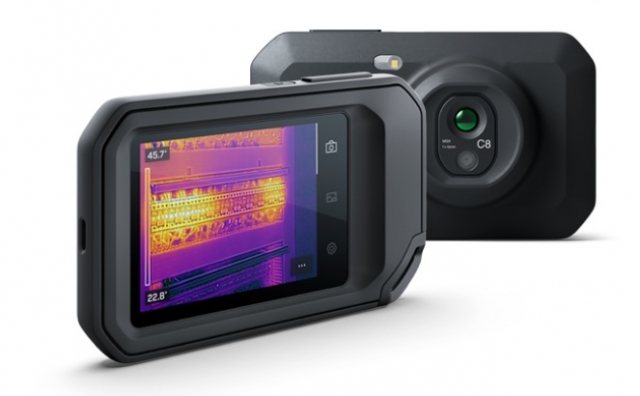

FLIR C8 COMPACT INFRARED CAMERA

• 320 × 240 thermal resolution
• Measures temperatures up to 450°C (842°F)
• 1-Touch Level/Span adjustable contrast

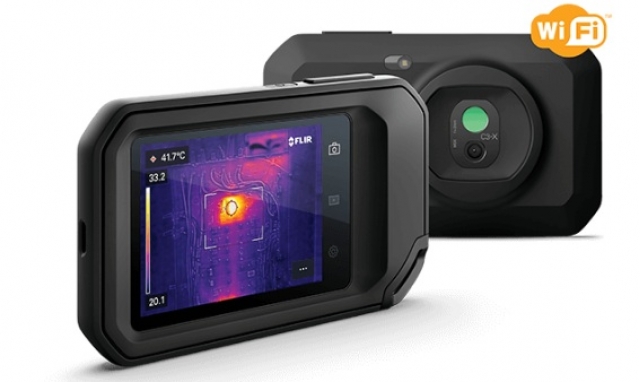

FLIR C3-X COMPACT INFRARED CAMERA

• 128 × 96 thermal resolution
• Measures temperatures up to 300°C (572°F)
• Automatic level/span

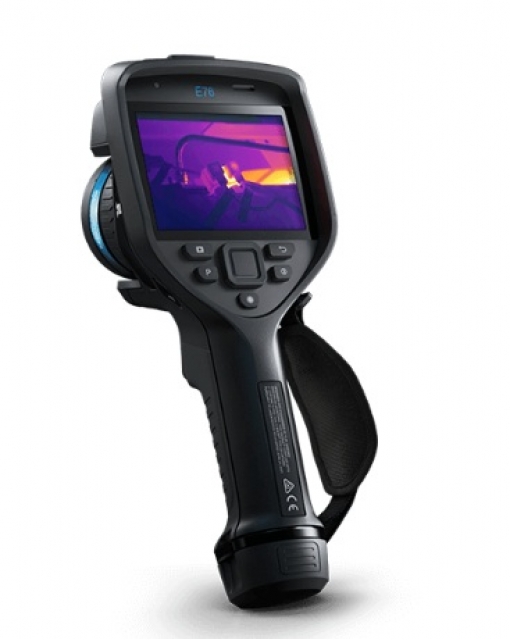

FLIR E76 THERMOVISION CAMERA 320X240

• 320 × 240 thermal imaging
• Measures temperatures up to 650°C (1202°F)
• Laser-assisted autofocus

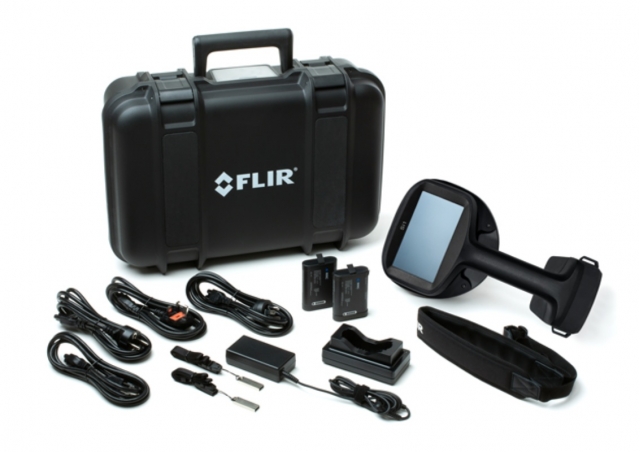

FLIR SI2-LD ACOUSTIC CAMERA FOR AIR LEAK DETECTIONS AND MECANIC FAULTS BEARING

• Detects, locates, and measures compressed air and gas leaks;
• including bearing fault detection, from up to 200 m (656 ft) away
• Built-in measurement and cost analysis for industrial gases including ammonia, hydrogen, CO2, methane, helium, and argon
• One-handed operation with automatic tuning, 8x zoom, and a 12 MP digital camera
• Mechanical fault mode, automatic selection, and optimization of filters simplifies finding critical mechanical issues, such as bearing
• faults

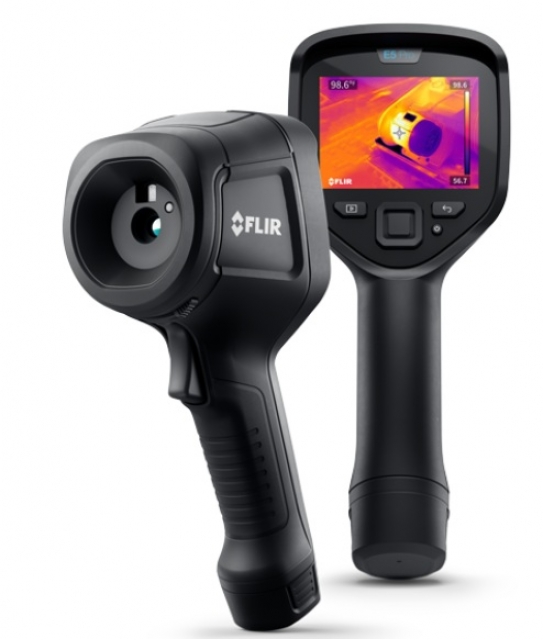

FLIR E5-PRO THERMAL INFRARED CAMERA

• 160 × 120 thermal resolution
• Measures temperatures up to 400°C (752°F)
• <60 mK thermal sensitivity

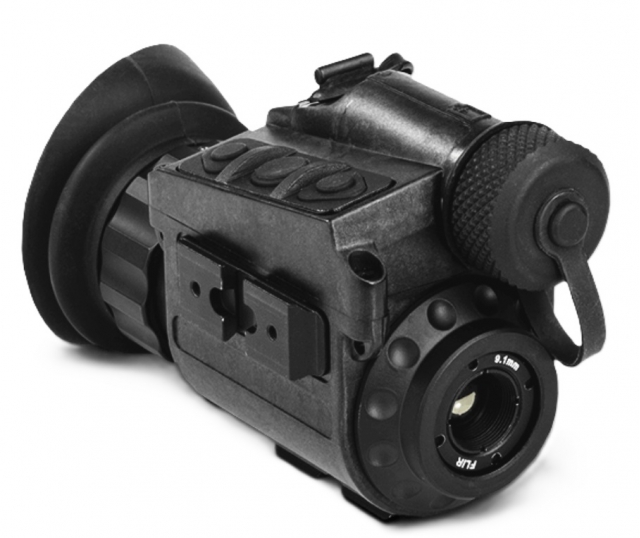

FLIR BREACH PTQ136 TACTICAL AND LAW ENFORCEMENT INFRARED MONOCULAR

• Built for the rigors of law enforcement
• FLIR Breach PTQ136 spots the heat of suspects and objects in total darkness.

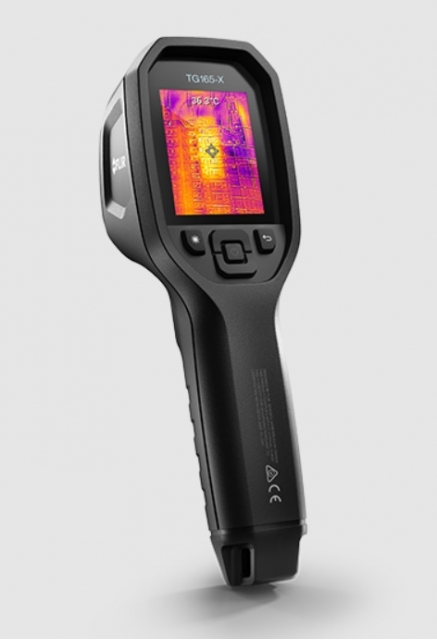

FLIR TG165-X

• 80 × 60 thermal resolution
• -25°C to 300°C (-13°F to 572°F)
• Interpret images with MSX®, which enhances thermal images with crisp visual details

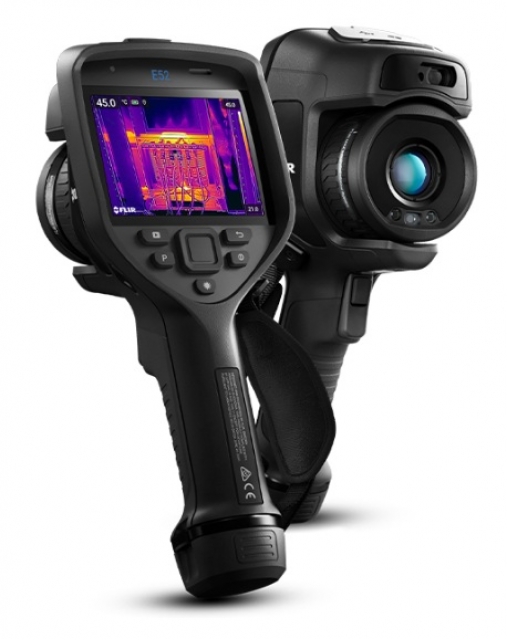

FLIR E52 THERMAL CAMERA 240X180PXL
