The VibraGAS enables fast and accurate location of smallest leaks in the gas installation. In addition to the visual and audible signal it provides also a vibration alarm. Without worrying inhabitants the user is drawn to the smallest traces of gas. The vibration increases with the gas concentration. The display does not need to be observed for the location of the leak.

The flexible goose neck with remote sensor, offers the possibility for an exact examinationof pipe sections, fittings and valves. Escaping gas is detected and displayed in very small concentrations.

The use of VibraGAS offers numerous advantages over the use of leak spray. Hemp-sealed connections swellwhen using leak sprays often they are briefly"tight" again. On hard to reachline partssmallbubbles can beverydifficult to detect. Here, theuseof a mirrorfor detecting therearbubblesis often necessary.TheVibraGASworks"dirt-free" and leaves notracesof wallpaper, walls orfloor materials, such as leakspray. The following operating modes are selectable from the menu:

Building inspection detection of smallest leaks in plumbing lines and connections. In addition to the optical and acoustic signal a vibration alarm is available.

Settings Custom configuration of the operating parameters such as the measuring unit, automatic switch off or the duty cycle of the backlight to the user�s requirements.

Adjustment Sensor sensitivity test and calibration of the device according to DVGW Note G 465-4 by applying test gas and set point adjustment by pressing a button

Features:

Rugged hand-held instruments with ergonomic aluminum housing
Wide range of applications in the gas installation
Powerful gas detector with vibration alarm and digital display reading for gas leak detection
High contrast LCD display with backlight for an optimal presentation of all measured values
Easy replacement of batteries with innovative battery Management
Setting the zero point by pressing
No need to display observation for leak detection
Simple operation with intuitive menu navigation Practical accessories for all applications

More products ESDERS

ESDERS SIGI EX FLAMMABLE GASES TESTER

• Improved sensor technology and adjustment options
• Increased operating temperature range of -20 to +50 ° C
• By up to 44% larger display area for better readability
• Red backlight for improved perception of alarm messages

ESDERS ELLI PORTABLE LASER METHANE CH4

• Colored LCD touch screen
• Selective detection of methane
• Integrated GPS and bluetooth functionality
• User-defined alarm threshold
• Rugged housing design IP54

ESDERS GOLIATH GAS ANALYZER

• Time-tested Esders operation concept.
• Very quick initial break-in phase after being switching on or changing application.
• Extremely short reaction times when measuring CH4 and CO2 in all concentrations.
• Oxygen and up to 3 toxic gas sensors are available as an option.
• Ethane analysis with automatic measurement result assessment can be integrated.
• Optional pressure measuring up to 2,000 hPa.

ESDERS GAS STANDPIPE

• Practical system with wide application
• Easy adaptation to many thread sizes, drilling saddles and fittings -directly or via electrically conductive tube
• Rapid extraction of gas by using the Venturi nozzle
• Flame arrestor for burning off the gas safely

ESDERS GASTEST DELTA3 GAS TESTER ACCORDING DVGW-TRGI 2008

• Usability test in accordance with G5952 or Esders express procedure
• Leak detection via external, digital hand sensor with integrated calibration and vibration alarm
• Automatic and manual test on controllers and safety valves
• Leak test with 150 mbar, strength test with 1 bar
• Pressure measurement up to 25 bar via external sensors

ESDERS GOLIATH BIOGAS ANALYZER

• Use of infrared sensors for CH4 and CO2 guarantee fast run-in period and extremely short response times and exclude cross-sensitivities to other gases.
• An oxygen and a hydrogen sulphide sensor are offered as an option.
• The measurement range for H2S is 0 to 2,000 ppm and cover the requirement for measurements at biogas plants ideal.

ESDERS SAFE ETHANTEST

• Taking the service box to the measurement site
• Activate device and connect sensor
• Feed sensor into sensor hole and start analysis at the touch of a button
• SAFE absorbs a gas sample and displays its concentration in vol.%
• The gas sample passes through the chromatographic column and the display of methane and ethane (if applicable) takes place

ESDERS VACUUM-PROBES-SYSTEM VSS 15

• Complete with connection cable and metal plug
• Stainless steel design with coarse filter and integrated water barrier
• Complete with connection cable and metal bush

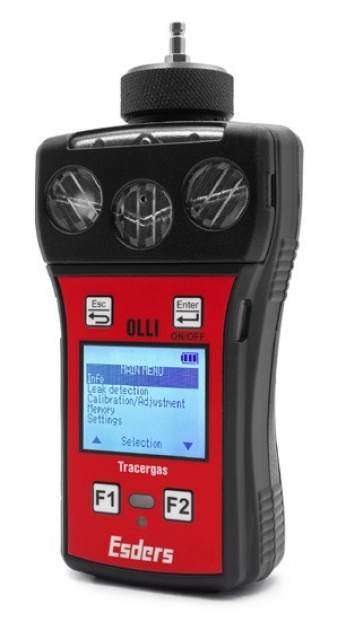

ESDERS OLLI GAS DETECTOR AND WARNING DEVICE FOR GAS LEAKS FOR INDOOR AND OUTDOOR WITH ATEX EXPLOSION PROOF

• Explosion-proof measuring device, Marking ATEX
• Up to three gas sensors can be installed (Ex/Ox/Tox)
• can optionally be equipped with a Li-ion battery pack, pump and pressure measurement

ESDERS VAKUMOBIL

• The Esders Vakumobil has a markedly improved suction power compared to conventional technology.
• The low pressure in the surface generated by one suction probe has an impact over several metres.
• This creates only a movement or distortion of the gas accumulation but not there elimination.
