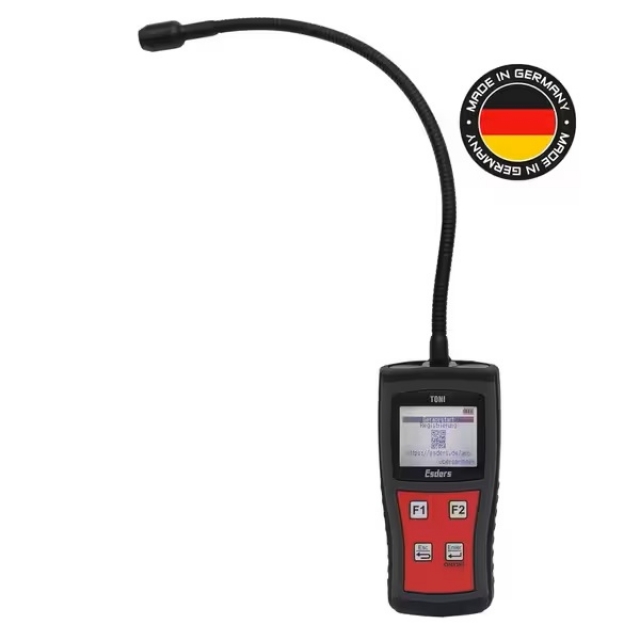

ESDERS TONI GasTest CH4 Gas Leak Detector with sensor on the gooseneck

Code: ESDERS TONI GasTest CH4 300010




Datasheet PDF, 0.83 Mb
User Manual ROMANIAN PDF, 0.68 Mb
User Manual ENGLISH PDF, 0.52 Mb


Description

  • Robust hand-held measuring device in an ergonomic housing with IP64 protection
  • Compact and handy size
  • t90 response time = approx. 4.5 seconds
  • Response time (start device, sensor warm-up, measured value increases) = 39 seconds
  • Magnets integrated in the back of the housing for mounting
  • Versatile use in gas installation
  • Effective gas leak detection technology with vibration alarm and digital display
  • High-contrast LCD graphic display with backlight for optimal display of all measured values
  • Built-in battery for more than 20 hours of operation when leak detecting
  • Digital interface and test report generation via app and free Esders Connect connection
  • Simple and easy operation thanks to intuitive menu navigation
  • Made in Germany, with quickly accessible contact persons
  • Optional soft case
  • Fast service guaranteed

Robust and precise gas leak detector with sensor attached on the gooseneck. Shows measured gas concentration on a display. Equipped with visual flashing, audio and vibrating gas alarm when selected concentration threshold is reached. Alarm can be silenced.


  • Measurement range: 0 - 10.000 ppm methane
  • Operating hours: > 25 in leak detection mode with fully charged battery and 20°C ambient temperature
  • Gooseneck length: 34,5cm
  • Housing dimensions: 13cm x 6,5cm x 3cm
  • Weight: approx. 260g

Description

The TONI GasTest CH4 is a handy measuring device for precisely locating methane leaks in domestic and commercial installations. Installers and service technicians benefit from the fast, reliable display of even the smallest amounts of gas even in hard-to-reach places such as fittings and valves.



The remote sensor makes it easy to check specific points, while the vibration alarm indicates leaks without the need to constantly look at the display. The robust device is designed for daily use and offers a long battery life for extended work assignments. Data transfer via Esders Connect supports easy documentation of measurements.

Technical data

DisplayLCD graphic display with 128 x 64 pixels + special characters, can be illuminated
Dimensions (without sensor head) 127 x 61 x 32 mm (gooseneck 347 mm)
Weightapprox. 265 g
Protection IP 64
Temperature range Operating: -20° to +50° C, Storage: -20° to +60° C
Calibration & Adjustment: +10° to +40° C
Operating time Display backlight off = approx. 31 hours
Display backlight on = approx. 20 hours
Power supply Long-lasting lithium-ion battery, rechargeable via USB-C
Cloud storageincl. after Esders Connect registration
Alarm level>95 dB (A)
Measuring range 0 ... 10.000 ppm methane (CH4)
Alarmoptical, acoustic and vibration
t90 response timeapprox. 4.5 seconds

Youtbe short presentation of TONI CH4 GasTest
