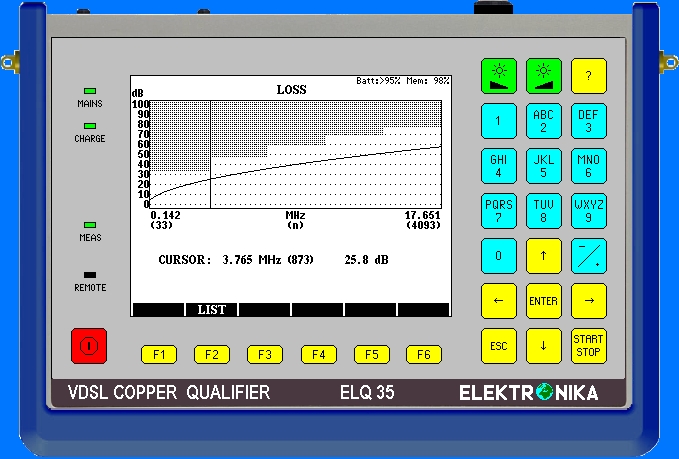

VDSL LINE QUALIFIER ELQ 35

Code: ELEKTRONIKA ELQ35




Datasheet PDF, 0.08 Mb

Description

ELQ 35 is a hand held battery operated, multifunction measuring instrument, intended for pre-qualification, installation, fault location and maintenance of balanced copper pairs



Features:

  • Pre-qualification in Master Slave mode
  • Pre-programmed Tolerance Masks
  • Automatic Data Rate Calculation
  • Immediate PASS/FAIL indication
  • Single Sided Measurements
  • Service Telephone Function
  • PC Supported Spectrogram
  • Long Time Micro Interruption Measurement
  • Long Time Impulse Noise Measurement
  • High Impedance Active Test Probe
  • PC Control Program
