The users of a telecommunication network expect high quality and reliable services. The users qualify the services with the timeframe of the services, the billing errors, failed calls, random errors, response time, and with the quality of the transmission. The subjective parameters measured by the users can be brought into connection with the objective technical parameters (traffic, number of successful calls, biterror ratio etc.), that must be checked on the elements and among the elements of the telecommunication networks during the installation and operation to ensure the high quality.

Features:

• Dual 2048 kbit/s receiver with high impedance

• Interface meets to ITU-T Rec.G.703 / G.704 / G.706 / I.431 / and ETSI ETS 300 011

• Monitoring and analysis

CAS systems

R1.5 and R2

CCS systems

No. 7 (SS7) ITU-T Q.7xx

MTP (L2 L3) decoding

ISUP, SCCP

ISDN DSS1

QSIG

V.5.1 / V.5.2

• Call trace and statistics

• PC software for analysis of signalling data and control

• Voice channels monitoring through built in speaker

• External clock input

• 320 x 240 dot LCD display

• LED indicators showing settings and status of line signal

• Selectable English or Russian languages

• Internal rechargeable battery-pack

• USB interface to connect to PC

More products ELEKTRONIKA

LAN TESTER ELT 10

• Simple, menu controlled operation
• Intelligent measurement port
• Storage of setups and results/statistics
• Results can be logged on PC via USB
• Software upgrade via USB

CABLE FAULT LOCATOR ELEKTRONIKA ECFL30

• Capacitance Measurements
• DC Fault Location Methods
• AC Fault Location Methods
• Graaf Fault Location Method
• TDR Measurements

ISDN ANALYSER EIT 10

• BRI TE and NT simulation, monitoring
• PRI TE and NT simulation, monitoring
• Dual U interface for troubleshooting between the NT and the Exchange
• B-channel voice and D-channel signaling monitor
• EDSS1, V5.1/V5.2, QSIG, SS7 protocols
• Analysis of CAS (R1,5; R2

XDSL SERVICE TESTER & TROUBLESHOOTER EX 30M

• Transmitted power
• Line attenuation
• Line alarms (LOS, LOF, LOP, LOM)
• Line errors (FEC, CRC, HEC)
• Ping test / trace route

UNIVERSAL COPPER QUALIFIER ELQ 30A+

• Analogue measurements on leased or switched circuits 20 Hz to 20 kHz
• Analogue-to-analogue measurements on PCM systems
• Loop holding and dialling (pulse or DTMF) for dial-up circuit testing
• Built-in loudspeaker and microphone, service telephone
• In-service talk/listen and voice monitoring facility

2,4 MHZ LEVEL TEST SET ET 91

• Psophometer
• Autmatic End to End Measurements
• High Resolution Spectrum Analyzer
• Measuring Bridge
• Memory Locations for Test Setups

DIGITAL LINE ANALYSER EDCT 20

• PC software for analysis of signalling data and control
• Storage of set-ups and results
• Voice channels monitoring through built in speaker
• External clock input
• Selectable English or Russian languages
• LED indicators showing status of line signal

XDSL LINE QUALIFIER ELQ 2+

• TDR for fault location
• Load coil detection facility
• DC-AC bridge option
• 2.2 MHz frequency range for fix-frequency and spectrum measurements
• Longitudinal voltage protection

6 MHZ LEVEL TEST SET ET 92

• Comfortable End to End Measurements
• High Resolution Spectrum Analyzer
• USB Ports for Result and Setup Transfer
• Memory for Test Setups

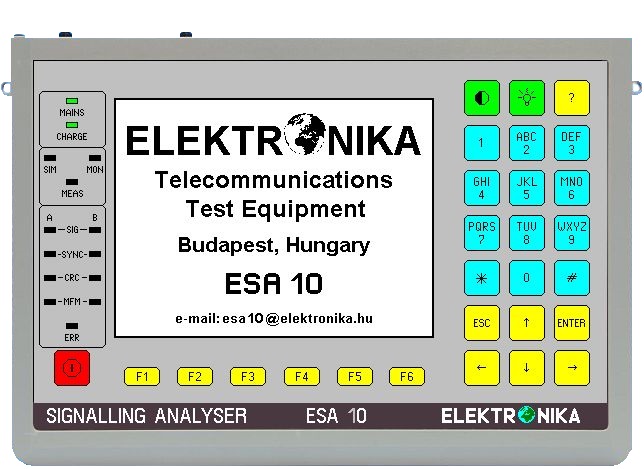

SIGNALLING ANALYSER ELEKTRONIKA ESA 10
