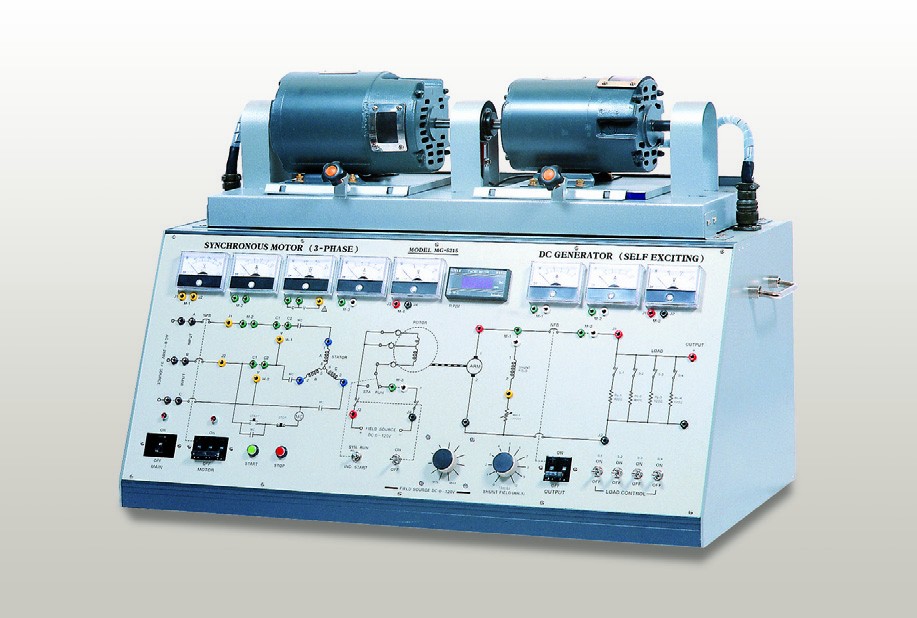

Synchronous Motor(3-phase)/DC Generator MG-5215

Code: MG-5215




Datasheet PDF, 0.58 Mb

Description

MOTOR SECTION

  • Winding Type : Synchronous Machine
  • Speed : 1750 RPM
  • Input Voltage : 120/208V, 3-phase 4 Wire
  • Frequency : 60Hz
  • Number of Poles : 4 poles
  • Horsepower : HP
  • Motor Current : 1.7A Approx.
  • Indication Meter : 2-voltage, 2-current, 1-RPM(digital), 1-watt
  • Overload Trip : 2A
  • Shunt Rheostat : 0~300?, 50W
  • Indication Meter : 2-current, 2-voltage
  • Overload Trip : 2A Approx.
  • Load Resistance : 48?~480?, 500W



GENERAL CHARACTERISTICS

  • Main Input Voltage : AC 220V, 3-phase
  • Rating : 30 minutes
  • Dimension : 990(W) x 670(H) x 475(D)mm
  • Weight : 91kg



GENERATOR SECTION

  • Winding Type : Shunt
  • Speed : 1800 RPM
  • Output Power : 120V, 1A
  • Number of Poles : 2 poles
  • Field Excitation : Self-excited



ACCESSORIES

  • Patch Cords(ø4 Plug) : 1set
  • AC Power Cord : 1ea
  • Reference Manual : 1ea
