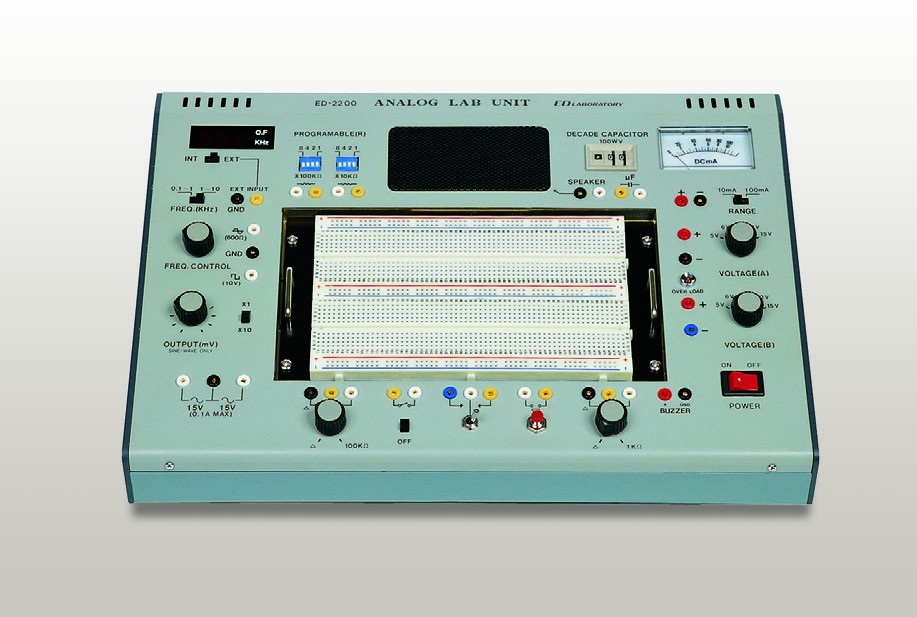

Analog Lab Unit ED-2200

• 7 experimental modules with a mainframe console
• Harmonic Analysis and Superheterodyne Receiver experiments
• PCM(TDM), Sample Hold, and Delta Modulation experiments



• Analog feedback loop & DC servo system
• Modularized by the function of servo circuits
• Overload protection for the servo amp's and power supply's output



• The Electronic Manual operable on PC comes with ED-1440 and e-learning is optimized by remote control of student’s operating program and evaluation of student’s online peport in real time.
• Through DS-1410, it provides Variable Power Supply(VPS), Function Generator(FG), Analog Output, Digital Output needed for experiments.



• SIMATIC STEP7-300 PLC programming and execution
• Modularization of the devices dssential for PLC I/O commands
• Experiments for basic command and various application program
• Binary data experiments with 4digits digital switch and display unit
• Customizable for various types of STEP7-300 series CPU



• Conversion processing experiments on the produced energy(power production / processing)
• Energy efficiency experiments followed by energy production and conversion
• Voltage and current characteristics curve
• Standalone or integrated operation of the energy experimental module
• Enriched teaching aids such as simulation software for power production



• Home network based experiments suitable for ubiquitous computing
• Integrated ubiquitous device using ZigBee/RFID and finger print recognition
• Designed to help develop home network on the ground of Lon Protocol
• Equipped with each PLC module(Power Line Communication) for home network
• Related experiments through Neuron C and MICOM programming



• Control of pressure, flow, level and temperature which are essential for process control
• Capable of stand-alone control and mixed combination in various types
• Real-time measurement and monitoring using data collection and signal conditioning
• Measurement of flow’s status and gain of the controlled data



• Mountable 5 type of MCU(8051,PIC, Atmega128, Atmega8535, Upd78f0547)
• Practice of various communications such as RS-232 USB and Ethernet
• Practice from basic I/O exercises to sensor application exercises with 5 MCU’s
• Possible of various practice by using of Bread Board and I/O Expansion Port
• Storage of sensor data display and Excel data using UI(LabVIEW)



• Modularized by each communicarion type
• PAM, PTM, PCM, DPCM, ADPCM, LDM, ADM, Delta-sigma
• No need to have additional generators (built-in power supply and signal source)
• Can display the test point and measure signals using an oscilloscope



• 24 Experimental Boards in two sections : (A) Semiconductor and (B) Electronic Circuit
• Experimental Board rack and board storage cabinet
