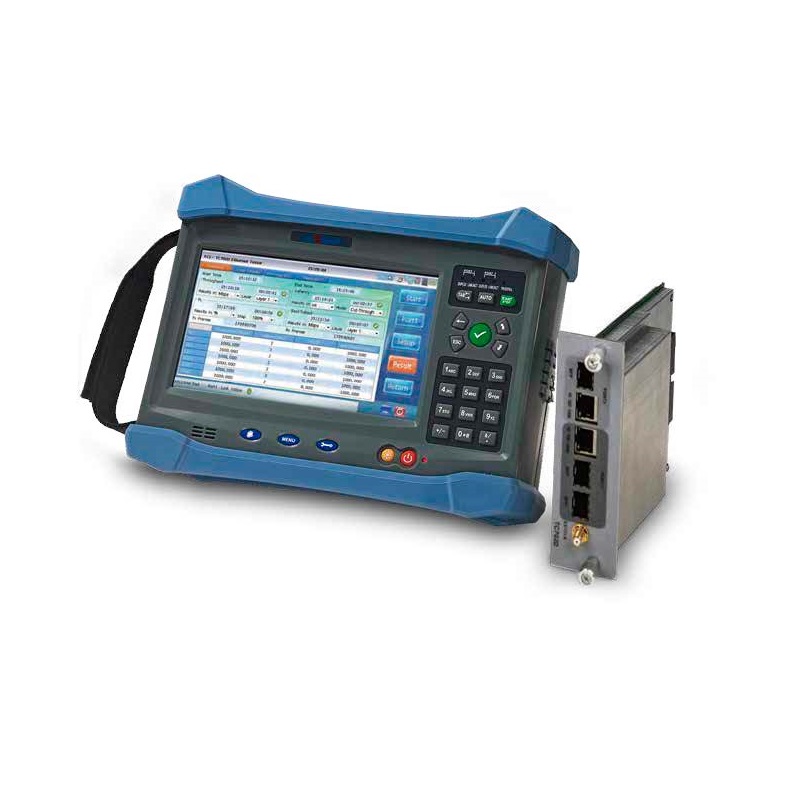

Deviser TC702 Gigabit Ethernet Module

Code: Deviser TC702




Datasheet PDF, 0.76 Mb

Description

The TC702 gigabit Ethernet modules are the latest modules to be added to the FC-1 family. The FC-1 platform is Deviser½s newest modular platform with advanced technologies that host a wide-range of test and measurement modules. In addition to the Ethernet module, the FC-1 supports other application modules, making FC-1 the only instrument required for testing from physical layer to service layer of emerging (or next generation) networks. TC702 Ethernet tester is Deviser's new Ethernet tester to qualify Ethernet service over LAN and RAN deployment. It is a highly efficient test instrument for service providers to ensure SLA KPIs with the subscribers.



Features:

  • RFC2544 measurement
  • ITU-T Y.1564 measurement
  • EtherBERT measurement
  • Packet stream generation and measurement
  • Loopback discovery
  • Smart Loopback and 802.3ah OAM Loopback
  • Through mode
  • Stream statistics in details
  • VLAN and Q-in-Q support
  • IPv6 and IPv4 support
  • Error statistics
  • Full dual port test
