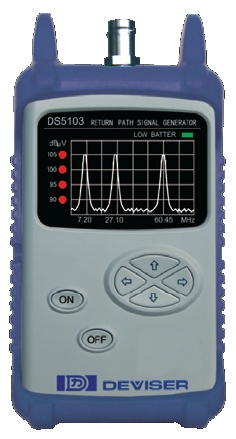

Fixed Points Frequency Source Deviser DS5103

• mainly applied for the installation of data service of HFC Network
• compatible with DOCSIS & Euro DOCSIS 1.1/2.0/3.0
• simple measurement of Analog TV, DVB-C and Spectrum
• 3.5 Inch TFT LCD
• USB storage and upgrade
• Toolbox - PC Management Software



• light source qualified in optical network, CATV and FTTX maintenance
• Multi wavelength output,
• CW mode or modulated mode, 270Hz, 330Hz, 1KHz, 2KHz
• Adjustable output power
• 30 hours working time



• 1 MHz.. 1 GHz Frequency Range
• 50 or 75 ohm input impedance
• Design QAM analysis, spectrum analysis and CATV analysis in one unit
• QAM analysis: MER, BER, EVM, Constellation Diagram etc
• Support QAM/ITU-T J.83 ANNEX A/B/C/D and QPSK, COFDM
• CATV analysis
• Battery and AC power supply



• High Speed Spectrum Analysis: 4~1000MHz
• Integrated DOCSIS 3.0 Cable Modem
• Integrated Upstream Signal Generator (no FEC)



• Perform comprehensive spectrum and signal analysis for complete site profile and monitoring of signal environment
• Test MIMO 4x4 antenna performance
• Detect signal degradation and system performance over time with trace overlay



• 1000Base-X optical port x 1, 10/100/1000Base-T electric port x 1
• Complete solution for activating, verifying & fault-diagnosing Ethernet service from 10Mbit/s to 1Gbit/s quickly and easily
• Convenient and intuitive user interface
• Integrates multiple software tools for field measurement, ensuring high cost-performance
• Professional PDF and CSV data report generation



• Analyze 8 CWDM channels simultaneously
• All day testing with field replaceable batteries
• Create test profiles for general functions such as relative power measurement
• Store up to 400 groups of data, and manage results with Toolbox management software



• 1U rack spectrum analyzer for remote head end monitoring
• 1 ~ 1000 MHz frequency span
• LAN connection
• Same performance as DS8831Q
• Workbench remote control software
• Cost-effective to modify network configuration
• Full 1 GHz performance RF matrix 16 x 1
• Units can be daisy chained to support up to 256 inputs



• Future-proof, all-in-one solution includes optical, cable TV (RF), and metallic testing for verifying the installation of FTTx, RFoG and RF PON networks
• Lightweight and compact design for easy mobility throughout the network
• Long battery life enables the user to test all day without stopping to charge the test equipment



• Analog TV measurements include: Level, V/A, HUM, C/N
• Auto-generates and saves up to 20 custom channel plans from a cable drop
• Auto test with pass/fail limits speeds up tests and simplifies results interpretation
