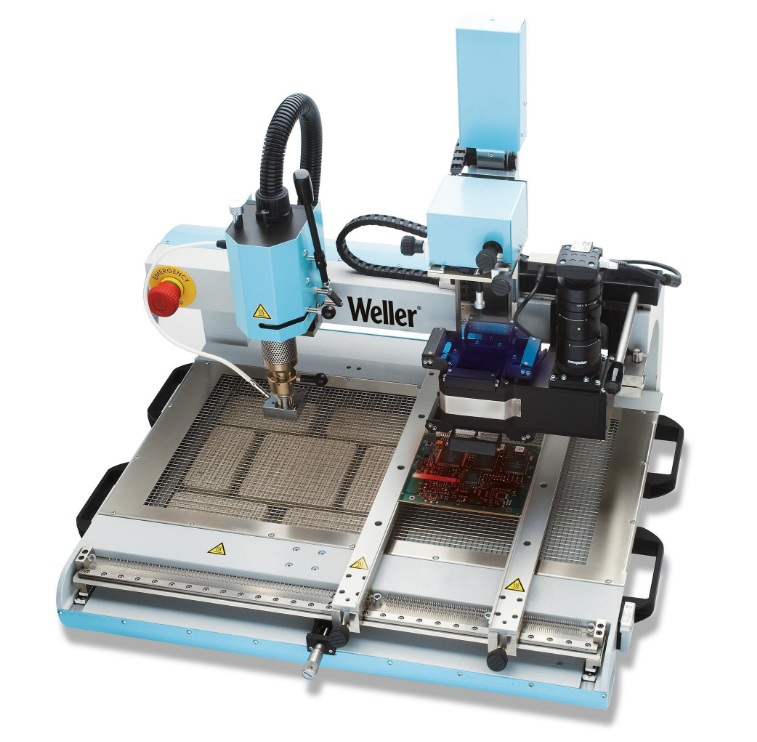

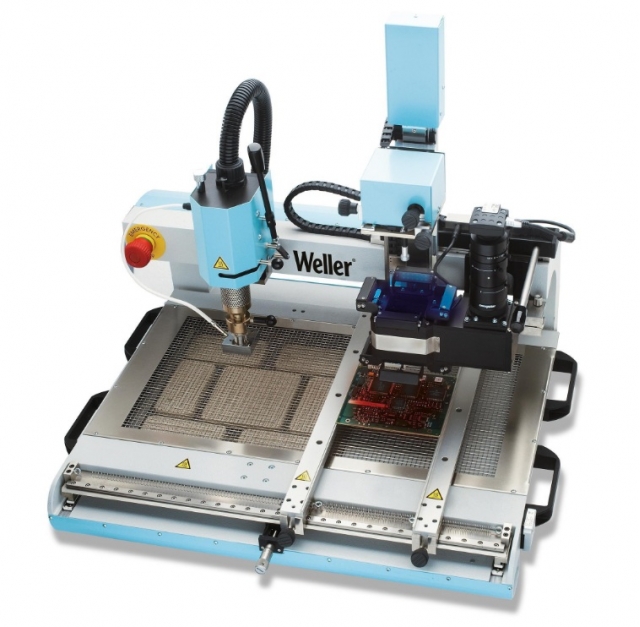

WELLER WQB4000SOPS T0053370599 BGA SMT Component Rework system 2300W with placing system camera support

Code: WELLER WQB4000SOPS T0053370599




Datasheet PDF, 0.45 Mb

Description

WQB4000SOPS 230V
Item No.: T0053370599
BGA/SMT Rework system 2300 W

Product features
2300 W / 230 V
BGA / SMT Rework system
For component placement with placing system camera support

Technical data
Height680mm
Length692mm
Dimensions L x W x H692.0 x 580.0 x 680.0mm
Air Consumption60 - 100 l/min
Compressed Air Connection (Outer Diameter)6.0mm
Compressed Air Connection AccessoryOil free, dry compressed air
Compressed Air Supply (kPa/bar)400 - 600 kPA / 4 - 6 bar
ESD SafeYes
Power2300 W
Power Consumption2300 W
Space Requirements (L x W x H)1099.8 x 650.2 x 680.7mm
Temperature Accuracy of Top Heating± 10°C, ± 18°F
Temperature Range of Bottom Heating50 - 400 °C
Temperature Range of Top Heating50 - 400 °C
Thermocouple ConnectionType-K
UPC4003019418275
Weight (Catalog)40.00 kg
Product FamilyBGA/QFP Soldering Station Repair



More products WELLER

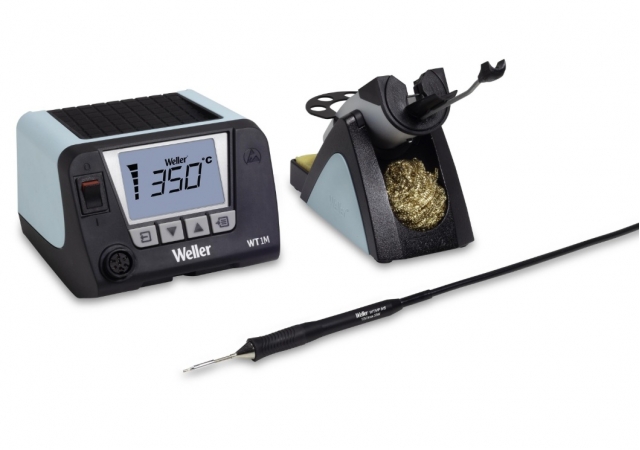

WELLER WT1010M T0053448699 SOLDERING STATION 95W

• 1 Channel Micro Soldering Kit, 95 W, 230 V
• Compact. Powerful. Versatile.

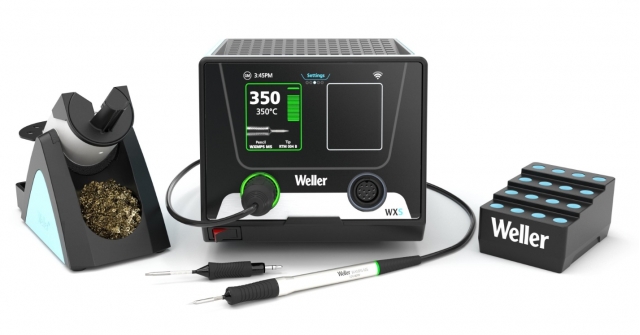

WELLER WXS2010 T0053454699 SOLDERING REWORG STATION 300W FOR MICRO NANO PICO APPLICATIONS

• Nano (Pico)/Micro Soldering Kit For every purpose
• A new soldering kit
• Optimized soldering set with 2 soldering tips for all pico (nano) and micro tasks in the electronics, medical and aerospace industries.

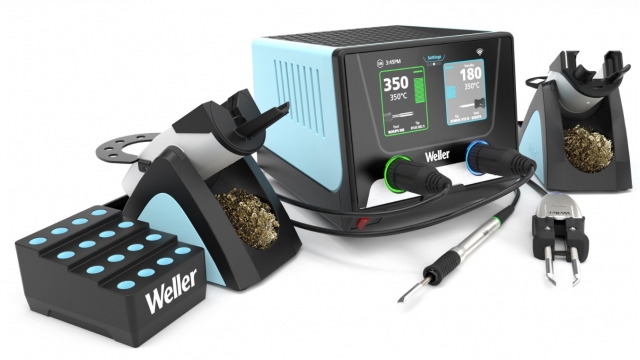

WELLER WXS2022 T0053458699 HEAVY DUTY SOLDERING STATION 150W

• Heavy Duty Rework Kit
• Weller's active tip technology (cartridge) provides optimized heat transfer with a maximum power of 150W, 24V.

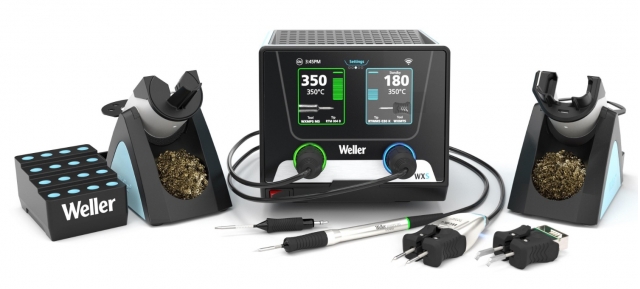

WELLER WXS2021 T0053457699 PICO MICRO SOLDERING SET

• Pico (Nano)/Micro Rework Kit For every purpose.
• Optimized rework system for all Pico (Nano) and Micro tasks in the electronics, medical, automotive and aerospace industry
• The set offers 1 soldering iron with 2 soldering tips from the smallest to bigger soldering application, as well as a desoldering tweezers with pico and micro tips.



WELLER WAD101 T0053266699N HOT AIR SOLDERING STATION IRON 105W

• Hot air station, 1 channel 105 W / 230 V
• Hot air station, 1 channel with HAP 1 soldering iron
• Small hot air set
• For hot air irons or soldering irons up to 100 W

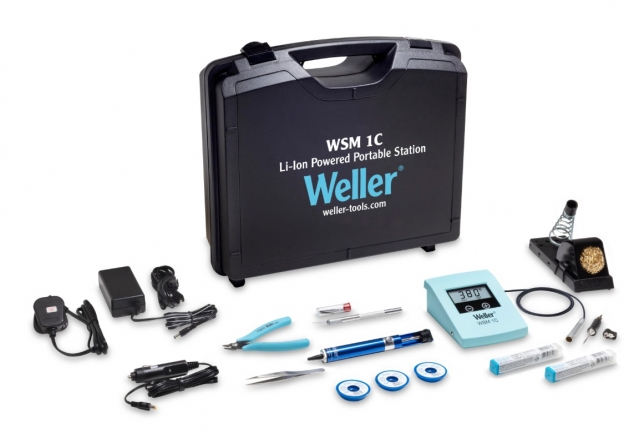

WELLER WSM1C T0053293390 MOBILE PORTABLE SOLDERING REPAIR KIT WITH BATTERY

• Mobile repair Kit with portable rechargeable battery soldering station
• The WSM1C is developed especially for users who need a portable, mobile and small soldering station for professional applications
• Powered by a rechargeable battery, the WSM1C soldering station can be easily operated outside laboratories or production lines, right where the job is.

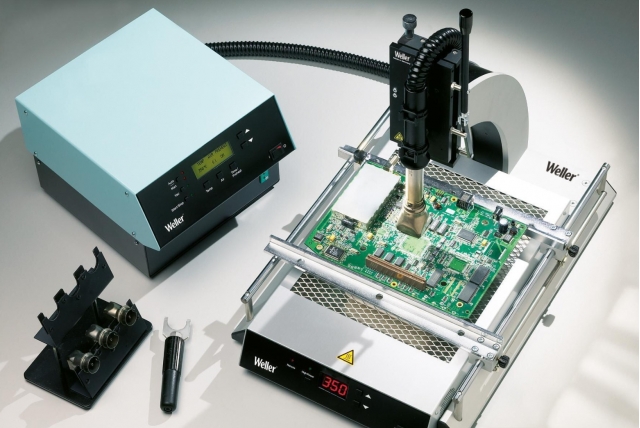

WELLER WHA3000PS T0053355699N HOT AIR REWORK STATION INFRARED PREHEATING PLATE AND CIRCUIT BOARD HOLDER

• 700 W
• Integrated turbine
• Set with Infrared preheating plate and circuit board holder

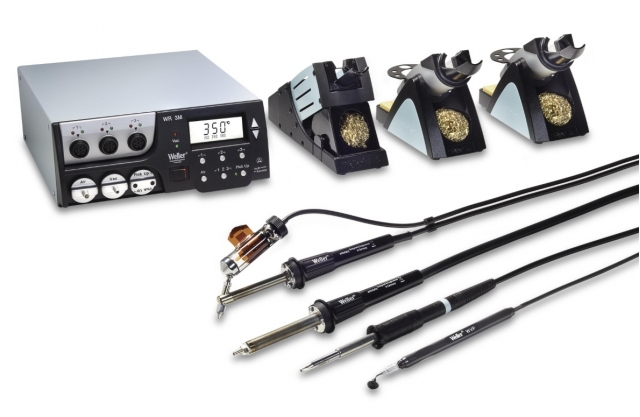

WELLER WR3000MER T0053368870N REWORK STATION SOLDERING DESOLDERING HOT AIR 3-CHANNELS

• Power unit WR 3M, 3 channels with soldering iron WP 120, desoldering iron DSX 120 and hot air iron HAP 200
• Large all round set for all repair jobs
• Desoldering iron DSX 120 for horizontal applications

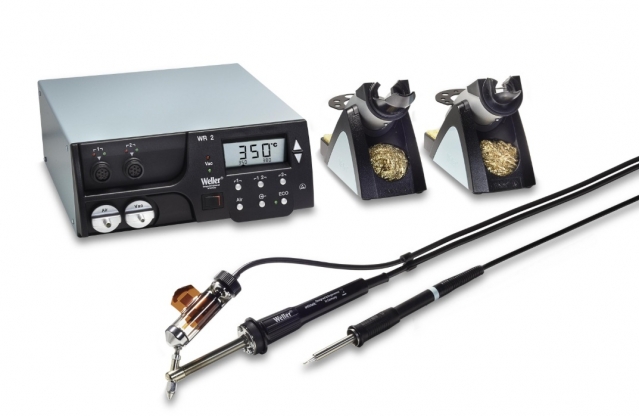

WELLER WR2002 T0053380699N SOLDERING DESOLDERING STATION 2-CHANNELS 250W

• Power unit WR 2, 2 channels with soldering iron WP 80, desoldering iron DSX 80
• Small repair set for all rework applications
• Simultaneous operation of up to 2 soldering tools (hot air and desoldering iron at the same time is not possible)

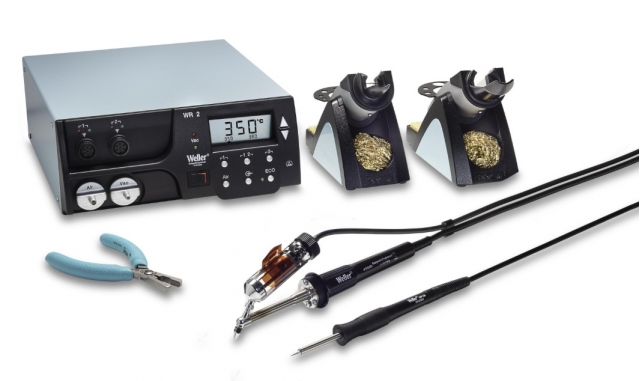

WELLER WR2000ER T0053380870N SOLDERING - DESOLDERING STATION 2-CHANNELS
