Description
FiberMASTER S40 - Cladding Alignment Fusion Splicer R301-S40K
FiberMASTER S60 - Active Core Alignment Fusion Splicer R301-S60K
S40 - Adaptive Clad Alignment Splicer
S40 delivers superior speed and splice performance in fibre optic installations where fibres of similar types are spliced. Using 4 motors for precision cladding alignment of any type of fibre providing fast splicing and dependable performance.
- Optimised for – Fibre to the home (FTTH), access networks, enterprise and campus networks.
- Fast Splice Time - 7 sec (Avg.)
- Magnification and Resolution - 320x
- Touch Screen - 4.3” Colour LCD
- Heating Time: Typical 20 sec
- Battery Capacity: 240 splice/heat cycles
- Data storage: 8,000 results

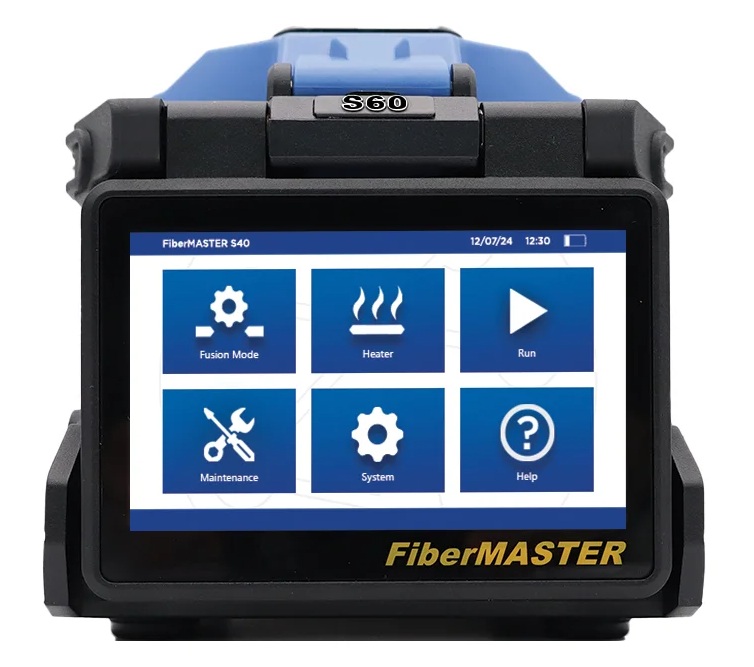

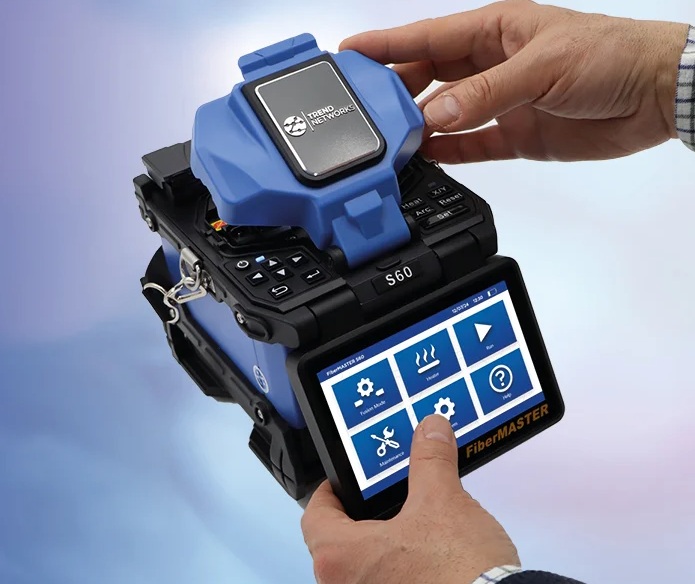

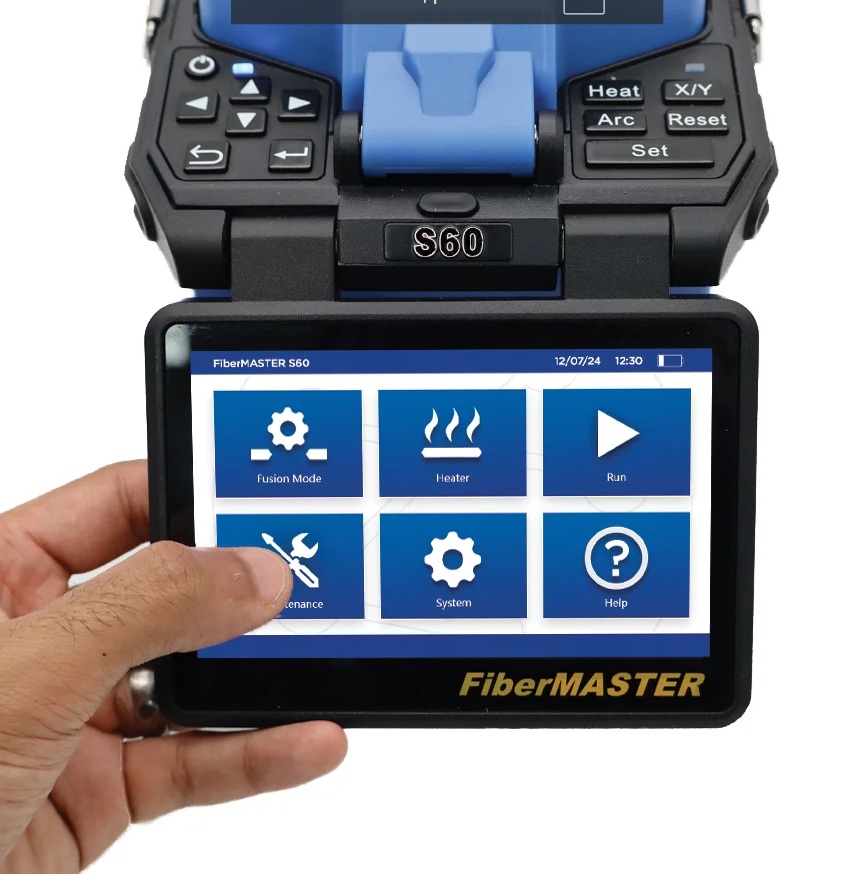

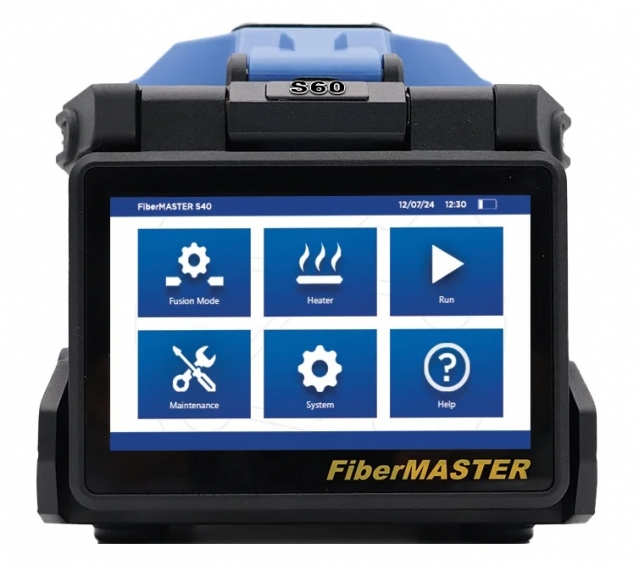

S60 - Active Core Alignment Splicer
S60 delivers superior low loss and repeatability when splicing dissimilar fibre types using automated detection. Using 2 additional camera motors (6 motors total) to optimise core detection and provide precise alignment for ultimate repeatability with any type of fibre.
- Optimised for – Trunk networks, telecom and high volume splicing.
- Fast Splice Time - 6 sec (Avg.)
- Magnification and Resolution - 400x
- Touch Screen - 5” Colour LCD
- Heating Time - Typical 18 sec
- Battery Capacity - 280 splice/heat cycles
- Data storage - 10,000 results + 100 images
FiberMASTER Fusion Splicer Series
The ultimate solution for fast and precise fusion splicing.
FiberMASTER S60 and S40 Fusion Splicers offer superior splice performance in as little as 6 seconds. With industry leading repeatability, your last splice will be as accurate as your first.
Spring into certainty with smarter testing and maximum savings. Click here.
Backed by a 3 Year Warranty
Industry leading with splice loss as low as 0.01dB
Sapphire Care Plan available to minimise downtime and avoid unexpected service or repair costs
Depend on local Technical Support to ensure rapid resolution
Product highlights
The new Fusion Splicer Series delivers exceptional speed, precision, and reliability, providing fibre optic technicians and network installers with industry-leading tools designed to improve both performance and efficiency.
The FiberMASTER S60 Fusion Splicer, featuring active core alignment technology, and the S40, with adaptive clad alignment, represent a significant leap forward in fusion splicing technology. Both models boast industry-leading repeatability with splice loss as low as 0.01dB, far exceeding ISO/EN/TIA standards and ensuring optimal network performance.
The FiberMASTER S60 is optimised for trunk networks and high-volume splicing in telecom applications, while the S40 is ideal for fibre-to-the-home (FTTH) installations and enterprise networks, providing tailored solutions for different types of fibre optic installations.
Key features
Experience Fast and Precise Fusion Splicing with Reliable Support, Backed by a 3 Year Warranty.
FiberMASTER S60 and S40 Fusion Splicers offers superior splice performance in as little as 6 seconds. With industry leading repeatability, your last splice will be as accurate as your first. Safeguarding your investment has never been easier with unmatched customer support and a 3 year warranty as standard. Sapphire Care Plan is also available to minimise downtime and avoid unexpected service or repair costs.
Robust and Reliable.
Built for field use in a variety of real-world conditions.
Dependable Performance.
Industry leading with splice loss as low as 0.01dB.
Consistent Repeatability.
FiberMASTER achieves maximum performance and industry leading repeatability over hundreds of splices.
Standard accessories

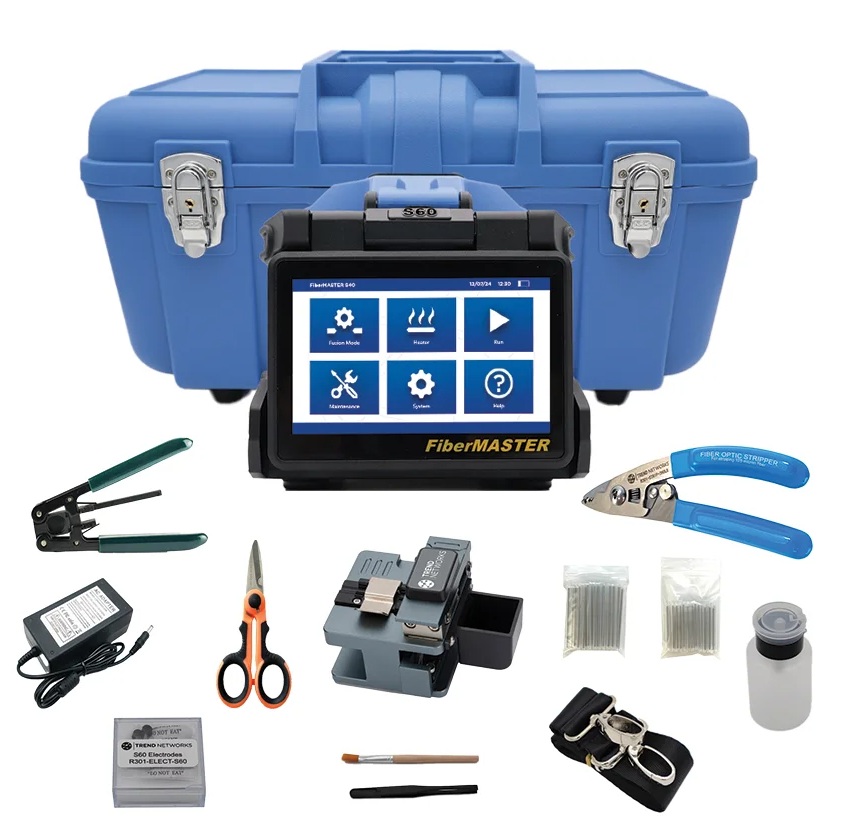

R301-S60K
FiberMASTER S60 Active Core Alignment Fusion Splicer
Includes FiberMASTER 6-motor Fusion Splicer, Carry
Case, Replacement Electrodes, Cooling Tray, Quick
Reference Guide, Power Supply, Cleaver, Alcohol
Dispenser, Cleaning Brush, Fibre Stripper, Drop Cable
Stripper, Kevlar Shears, USB Work Light, Heat Shrink
60 mm 50 pcs + 40mm 50 pcs

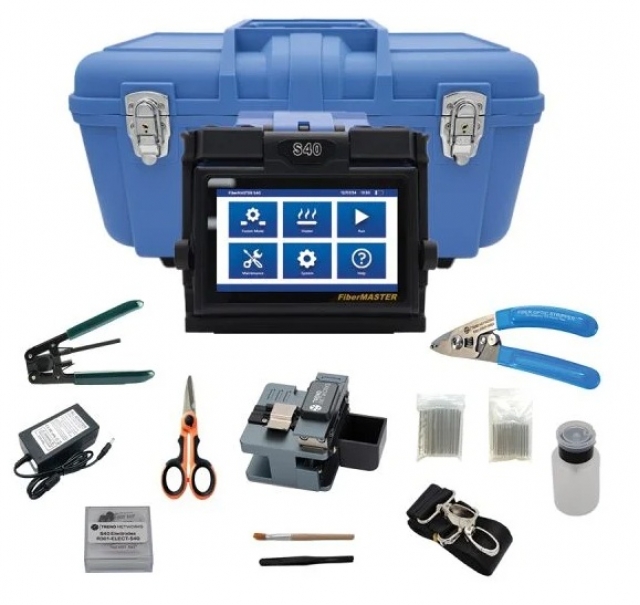

R301-S40K
FiberMASTER S40 Cladding Alignment Fusion Splicer
Includes FiberMASTER 4-motor Fusion Splicer, Carry
Case, Replacement Electrodes, Cooling Tray, Quick
Reference Guide, Power Supply, Cleaver, Alcohol
Dispenser, Cleaning Brush, Fibre Stripper, Drop Cable
Stripper, Kevlar Shears, USB Work Light, Heat Shrink 60
mm 50 pcs + 40mm 50 pcs
Recommended options
R301-CASE Robust Carry Case
R301-CLEAVE-STD Cleaver (Standard 2-Step Cleaver)
R301-CLEAVE-PRO Cleaver (Pro 1-Press Cleaver)
R301-BLADE-STD Cleaver Blade (Standard)
R301-BLADE-PRO Cleaver Blade (Pro)
R301-STRIP-3HOLE Fibre Stripper (3 hole)
R301-SHEAR-KEVLAR Kevlar Shears
Sapphire Care Plan
Part No. Kit Contents
SCP-S40-1Y S40 Sapphire Care Plan - 1 Year
SCP-S40-2Y S40 Sapphire Care Plan - 2 Year
SCP-S40-3Y S40 Sapphire Care Plan - 3 Year
SCP-S60-1Y S60 Sapphire Care Plan - 1 Year
SCP-S60-2Y S60 Sapphire Care Plan - 2 Year
SCP-S60-3Y S60 Sapphire Care Plan - 3 Year
TREND NETWORKS and FiberMASTER are trademarks or
registered trademarks of TREND NETWORKS.
TREND Networks
728 London Road, High Wycombe
Buckinghamshire, HP11 1HE, United Kingdom
Tel. +44 (0)1925 428 380
uksales@trend-networks.com Specification subject to change without notice. E&OE
© TREND NETWORKS 2024
www.trend-networks.com Publication no.: 301805. Rev 1.
Part No. Kit Contents
R301-BATT-S40 FiberMASTER S40 Battery
R301-BATT-S60 FiberMASTER S60 Battery
R301-ELECT-S40 Splicer Electrodes for 4-motor
R301-ELECT-S60 Splicer Electrodes for 6-motor
R301-PSU Splicer Power Adapter & Mains
Cords
R301-STRIP-THERMAL Thermal Stripper
More products TREND NETWORKS

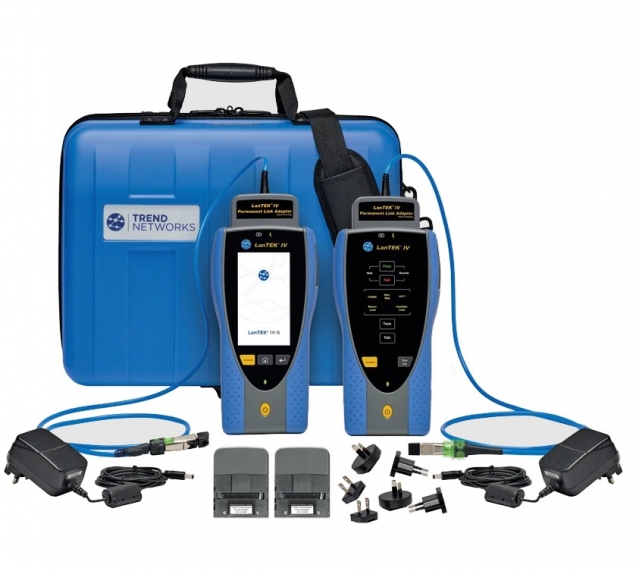

TREND NETWORKS LANTEK IV-S CABLE NETWORK CERTIFIER
