Description

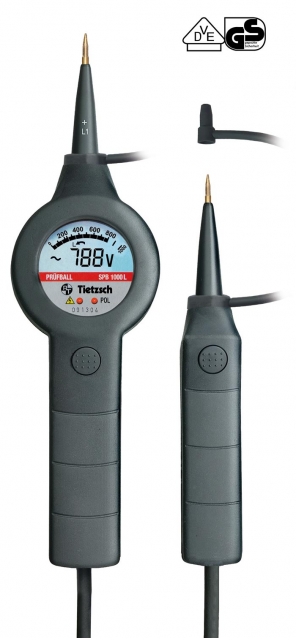

PRÜFBALL SPB DIGITAL
digital rubber encapsulated voltage tester
rubber casing, robust and digital
The digital test ball is a maintenance-free voltage and continuity tester for power supply and industry. Protected by its unique rubber housing, the test ball is indestructible, safe and durable..
The digital version of the test ball is the modern alternative to the classic analogue test ball.
Two different voltage ranges are available to suit your application. The voltage tester can be further adapted to your requirements with its extensive range of accessories.
nominal voltage range:
50 ... 1000 V AC / 50 ... 1000 V DC
display range:
24 ... 1000 V AC / 24 ... 1000 V DC
continuity tester
overvoltage category: CAT IV 1000 V
additional load for interference voltages and RCD tripping
load indication through LCD-display
Voltage tester:
precise display of the voltage 50 â�" 1000 V AC / DC
extremely resistant to voltage â�" CAT IV 1000 V - VDE certified
clear LED indicator for dangerous voltage
load connection for interference voltages and RCD tripping
full voltage indication without battery maintenance free
large LCD display with backlight
Continuity tester:
fast continuity test
continuity test with display up to 1000 kOhm
Phase and phase sequence tester:
phase tester with indication "POL and red LED
phase sequence tester with LED-display right / left
controller-monitored test with error detection to avoid false indications
phase and phase sequence tests can also be performed with insulating gloves
Further functions:
safety housing made of solid rubber is extremely shockproof
test electrodes with thread for screwing on accessories
easy handling
insulation fault detection by two-color cable insulation
extremely stable housing, even in cold environment
IP 65 waterproof
Datasheet
PDF, 2.47 Mb
