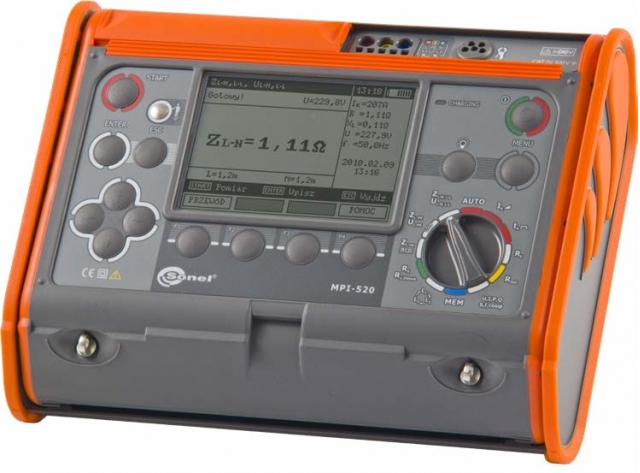

SONEL MPI-520 Multi-function Electrical Installation Tester WMGBMPI520

Code: SONEL MPI-520 MPI520 WMGBMPI520



Datasheet PDF, 0.97 Mb


Description

Professional measurements for every budget

Versatile yet simple to use, the Sonel MPI-520 multifunctional meter for electrical installations performs its tasks flawlessly when measuring the parameters of electrical installations. The instrument has been developed to meet the needs of installers as well as measurement engineers. Intuitive operation will allow beginners to use the device, while advanced measuring capabilities will meet the expectations of the most demanding specialists. A number of modern solutions have been applied in the meter, which translate into additional functions and greater capabilities of the device.

In this way the Sonel MPI-520 meter significantly improves the performance of measurements of electrical installations.

The cost-effective and versatile Sonel MPI-520 meter is a proven choice for users looking for a simple to use, precise instrument that combines functions of several devices for electric shock measurements. With the use of one meter, it is possible to perform the measurement of short-circuit loop impedance (also in circuits with RCD switches), the measurement of earth resistance as well as testing of parameters of residual current devices, types AC, A and B. Extended capabilities, precision of measurements and application of pioneer solutions combined with a favourable price make this model of the meter a proven and reliable choice.

Features

The meter offers a wide range of functionalities. It combines the measuring capabilities of several devices, while ensuring equally good accuracy. The device can be used for all measurements for commissioning of electrical installations in accordance with applicable regulations:

short circuit loop impedance (also in circuits secured with RCDs),
RCD parameters,
insulation resistance,
earth resistance (3-pole method),
continuity of protective and equipotential bondings,
phase sequence test,
AC voltage and AC current, frequency,
cosφ, active (P), reactive (Q) and apparent (S) power (using clamp).
Additional functions

Checking the correctness of PE connection using a contact electrode.
Measurement of voltage (0 500 V) and network frequency.
Memory of 990 results.
Wireless data transmission to a computer.
Application areas

MPI-520 is simple in design and use, providing user with many measurement options. It may be successfully used to test household and industrial electrical systems.

Inspection of electrical safety

Measurements can be easily automated with:

auto mode of residual current devices (RCD) tests,
the WS adapter that can be used for testing systems via standard 230 V sockets,
AutoISO-1000C adapter for automatic insulation resistance test of 3-, 4- and 5-conductor cables, without switching.
Increased resistance to environmental conditions

The meter will cope well in difficult environmental conditions. Protection against penetration of dust and water is ensured by a unique housing with a level of protection IP54. It is resistant to mechanical damage, and a special design allows you to easily protect the screen by shielding using the cover of the meter. In addition to the fact that it protects against damage, it also allows you to conveniently carry and use the device in different positions.

Communication and software

You can easily transfer measurement data to your computer via USB port or wireless communication. In order to generate a report on measurements for electric shock protection, use Sonel Reports PLUS software. Saving the downloaded data to the simplest formats and printing is provided by free Sonel Reader software.


Standard accessories

WS-03 adapter with

START button with

UNI-Schuko plug

(CAT III 300 V)

WAADAWS03

Test lead 30 m,

red (on a reel)

optional for MPI-520 Start

WAPRZ030REBBSZ

USB cable

WAPRZUSB

Test lead 15 m,

blue (on a reel)

optional for MPI-520 Start

WAPRZ015BUBBSZ

L-2 carrying case

standard for MPI-520

optional for MPI-520 Start

WAFUTL2

L-2 hanging

straps (set)

WAPOZSZEKPL

2x earth contact test

probe (rod), 30 cm

optional for MPI-520 Start

WASONG30

Crocodile clip 1 kV

20 A red / yellow

WAKRORE20K02

WAKROYE20K02

Pin probe 1 kV

(banana socket)

red / blue / yellow

WASONREOGB1

WASONBUOGB1

WASONYEOGB1 optional

for MPI-520 Start

Test lead 1.2 m

(banana plugs)

red / blue / yellow

WAPRZ1X2REBB

WAPRZ1X2BUBB

WAPRZ1X2YEBB

Battery pack 4xLR1

WAPOJ1

L-4 carrying case

optional for MPI-520

standard for MPI-520 Start

WAFUTL4

Factory calibration certificate



Recommended options

WS-04 adapter

with UNI-SCHUKO

angular plug

WAADAWS04

EVSE-01 adapter

for testing vehicle

charging stations

WAADAEVSE01

PRS-1 resistance

test probe

WASONPRS1

Foldable pin

probe, 1 kV, 2 m

(banana socket)

WASONSP2M

AutoISO-1000C

adapter

WAADAAISO10C

Crocodile clip

1 kV 20 A blue

WAKROBU20K02

C-3 clamp

(Ø 52 mm)

WACEGC3OKR

Test lead for fault

loop measurement

(banana plugs)

5 m / 10 m / 20 m

WAPRZ005REBB

WAPRZ010REBB

WAPRZ020REBB

Test lead for

earth resistance

measurement

25 m red / blue

WAPRZ025REBBSZ

WAPRZ025BUBBSZ

Test lead for earth

resistance measurement 50 m

WAPRZ050YEBBSZ

Test wire reel

WAPOZSZP1

Three-phase socket

adapter 16 A / 32 A

WAADAAGT16C

WAADAAGT32C

Three-phase socket

adapter 16 A / 32 A

WAADAAGT16P

WAADAAGT32P

Industrial socket

adapter 16 A / 32 A

WAADAAGT16T

WAADAAGT32T

Three-phase socket

adapter 63 A

WAADAAGT63P

Earth contact test

probe 80 cm

WASONG80V2

Cramp with

banana socket

WAZACIMA1

TWR-1J

RCD breaker

testing adapter

WAADATWR1J

CS-1 cable simulator

WAADACS1

L-3 carrying

case (for 80 cm

test probes)

WAFUTL3

Cable for battery

charging from car

cigarette lighter

socket (12 V)

WAPRZLAD12SAM

OR-1 USB wireless

receiver

WAADAUSBOR1

Ni-MH battery 4.8 V 4.2 Ah

WAAKU07

MPI charging set

(charger + battery)

WAKPLLADMPI520

Charging

Z-7 power supply

+ mains cable

WAZASZ7

AC-16 line splitter

WAADAAC16

Calibration certificate

with accreditation



More products SONEL

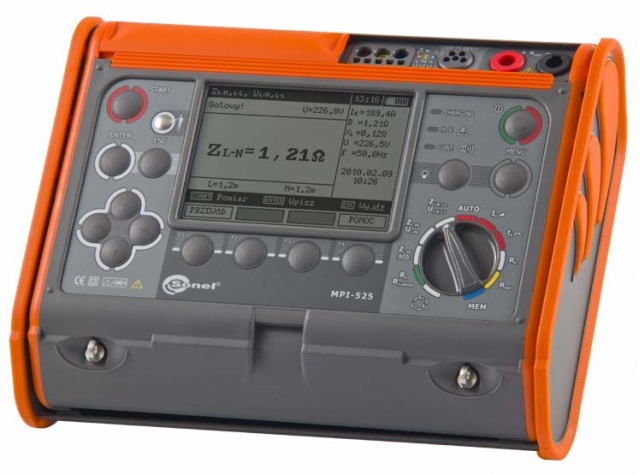

SONEL MPI-525 MULTI-FUNCTION ELECTRICAL INSTALLATION TESTER WMGBMPI525

• short circuit loop impedance (also in circuits secured with RCDs),
• RCD parameters,
• insulation resistance, with a voltage of 2.5 kV
• earth resistance (3-pole method),


SONEL MPI-520 MULTI-FUNCTION ELECTRICAL INSTALLATION TESTER WMGBMPI520

• short circuit loop impedance (also in circuits secured with RCDs),
• RCD parameters,
• insulation resistance,
• earth resistance (3-pole method),
• continuity of protective and equipotential bondings,
• cosφ, active (P), reactive (Q) and apparent (S) power (using clamp).
