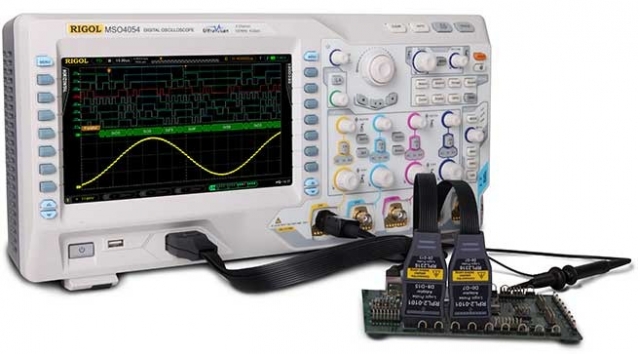

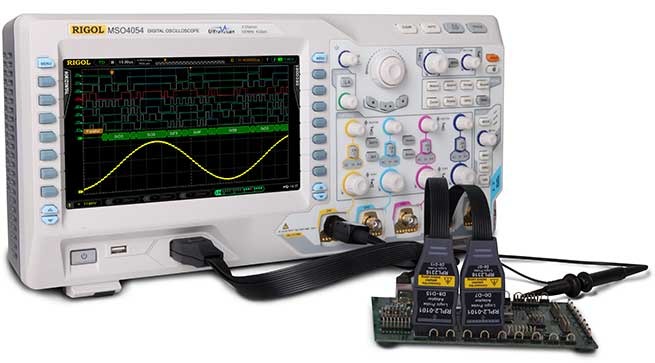

Rigol MSO4000 Mixed Signal Oscilloscope
OBSOLET PRODUCT ( * OUT OF USE )

Code: Rigol MSO4000 MSO4012 MSO4014 MSO4022 MSO4024 MSO4032 MSO4034 MSO4052 MSO4054



Datasheet PDF, 2.67 Mb

Description

MSO4012 2+16 Channel, 100MHz Bandwidth, 4GS/s Sample Rate, 140Mpts

MSO4014 4+16 Channel, 100MHz Bandwidth, 4GS/s Sample Rate, 140Mpts

MSO4022 2+16 Channel, 200MHz Bandwidth, 4GS/s Sample Rate, 140Mpts

MSO4024 4+16 Channel, 200MHz Bandwidth, 4GS/s Sample Rate, 140Mpts

MSO4032 2+16 Channel, 350MHz Bandwidth, 4GS/s Sample Rate, 140Mpts

MSO4034 4+16 Channel, 350MHz Bandwidth, 4GS/s Sample Rate, 140Mpts

MSO4052 2+16 Channel, 500MHz Bandwidth, 4GS/s Sample Rate, 140Mpts

MSO4054 4+16 Channel, 500MHz Bandwidth, 4GS/s Sample Rate, 140Mpts







  • Up to 500 MHz bandwidth
  • 4 GSa/s sample rate (analog); 1 GSa/sec (digital)
  • 2 or 4 Analog channels available
  • 16 Digital Logic Channels available
  • 140 MPts memory (analog), 28 Mpts memory (digital)
  • 110,000 Waveforms per second (analog); 85,000 Wfms/sec (digital)
  • Original UltraVision technology
  • Hardware allows for real-time, continuous waveform recording and waveform analysis







Model

MSO4054

MSO4052

MSO4034

MSO4032

MSO4024

MSO4022

MSO4014

MSO4012

Analog Channels

4

2

4

2

4

2

4

2

Digital Logic Channels

16

16

16

16

16

16

16

16

Frequency

500 MHz

350 MHz

 200 MHz

 100 MHz

Real-Time Sample Rate

4 GSa/s (analog); 1 GSa/s (digital)

Memory Depth

140 Million Points (analog); 28 Mpts (digital)

Waveform Acquisition Rate

110,000 Waveforms per Second (analog); 85,000 Wfms/sec (digital)







Standard accessories

Power Cord conforming to the standard of the country -

Front Panel Cover FPCS-DS4000

USB Data Cable C B - U S B A - U S B B -

FF-150

2 or 4 Passive Probes (500 MHz) RP3500A

1 Set logic analysis probe RPL2316

Quick Guide - Resource CD (User"™s Guide and Application Software) ""



Recommended options

Optional Accessories

Active Differential Probe (1.5 GHz) RP7150

Rack Mount Kit RM-DS4000



Decoding options

RS232/UART Decoding Kit SD-RS232-DS4000

I2C/SPI Decoding Kit SD-I2C/SPI-DS4000

CAN Decoding Kit SD-CAN-DS4000

FlexRay Decoding Kit SD-FlexRay-DS4000
