3 GHz frequency models available
All digital IF Design
100 Hz Minimum Resolution Bandwidth
Unique Widescreen Display and VGA output
Save thousands of measurements and system configurations with 1 GB of internal storage
Options including Tracking Generator, Advanced Measurements, PreAmplifier, and Case

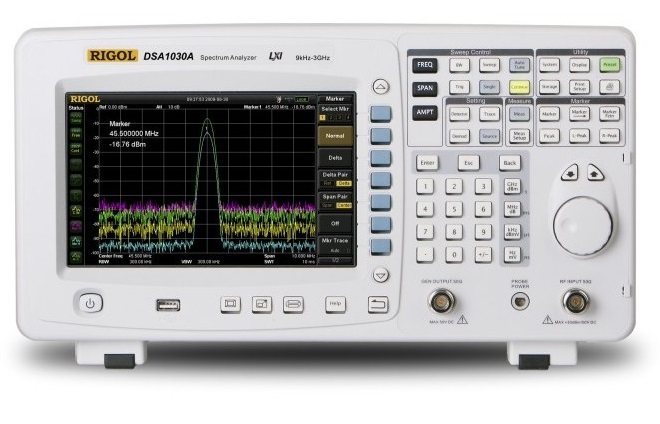

Model	DSA1030	DSA1020
Frequency Range	9kHz - 3GHz	9kHz - 2GHz
DANL *1	-138dBm	-120dBm
Phase Noise	<-80dBc/Hz @10kHz offset typical
Total Amplitude Accuracy*2	<1.5dB
Minimum RBW	100Hz
RF Input Maximum Level	+30dBm
Interfaces	USB host & device, LXI-C (Ethernet), GPIB (optional), VGA output, 10 MHz REF In, 10 MHz REF Out, External Trigger In
Trigger Source	Free Run, Video, External
External Trigger Level	5 V TTL
Dimensions	Width x Height x Depth = 399mm X 223mm X 159mm
Weight	6.2kg(without battery)

*1: 100Hz RBW; DSA-1020: 10 MHz and up, typical; DSA-1030: 10 MHz to 2.5 GHz, preamplifier on, typical
*2: 95% confidence level, see user's manual for complete specifications
