2 Analog channels plus external trigger
Up to 300MHz bandwidth
2GSa/s real-time sample rate and 50GSa/s equivalent-time sample rate.
Up to 2000wfms/s waveform update rate
5.7"� TFT QVGA (320X240) with 64K color LCD backlit display
Trigger modes: edge, pulse width, slope, video, pattern, continuous time, and alternate

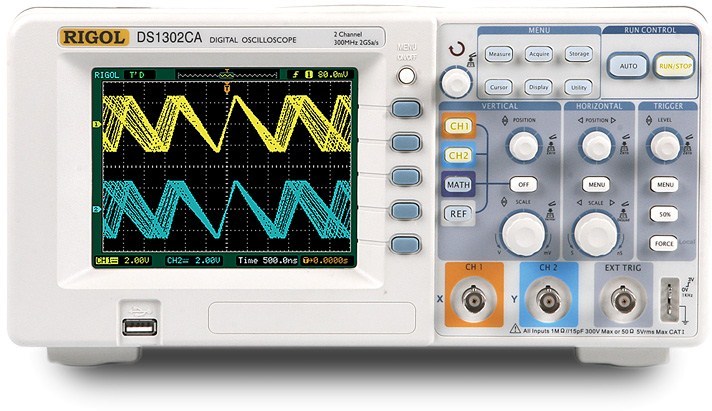

Model	DS1302CA	DS1202CA	DS1102CA	DS1062CA
Bandwidth	300 MHz	200 MHz	100 MHz	60 MHz
Analog Channels	2
Vertical Sensitivity	1 mV/div ~ 10V/div
Real-time Sample Rate	2 GSa/s�¼�each channel�¼��¼�1 GSa/s�¼�dual channels�¼�
Equivalent Sample Rate	50 GSa/s	25 GSa/s	10 GSa/s	10 GSa/s
Standard Interface	USB Host & Device, RS-232, P/F Out
Vertical Resolution	8 bits
Math	�¼�, �¼�, �-, FFT
Max Input Voltage	All inputs 1Ω"-15pF 300 V RMS CATâ��
Cursor Measurements	Manual, Track and Auto Measure modes

Standard accessories

Recommended options
