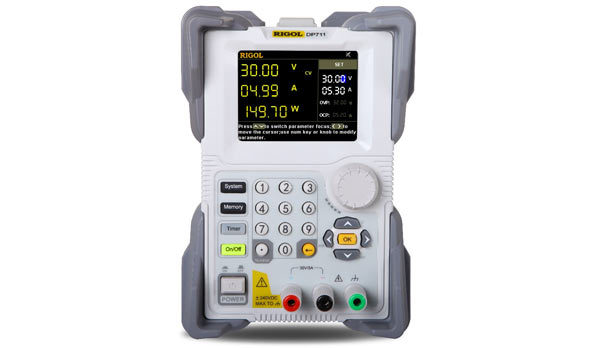

RIGOL DP711 DP712 Liniar DC Power Supply

Code: RIGOL DP711 DP712




Datasheet PDF, 2.2 Mb

Description

DP711: single output, 30 V/5 A, total power up to 150 W

DP712: single output, 50 V/3 A, total power up to 150 W

Low ripple and noise:

 DP711: <500 µVrms/3 mVpp; <2 mArms

 DP712: <500 µVrms/4 mVpp; <2 mArms

Excellent load and line regulation rate: <0.01% + 2 mV; <0.01% + 2 mA

Transient response time: <50 µs

1 mV/1 mA resolution (optional)

Sound overvoltage/overcurrent/overtemperature protection, with the response

 time for the overvoltage protection less than 10 ms

External trigger function supported, enabling synchronous output for

 multiple devices

Timing output supported (10 ms to 99999 s) for up to 2,048 groups

3.5-inch TFT-LCD; compact and elegant; easy to use

Front panel locking and any specified key locking supported

RS232 interface communication supported





Standard accessories

Model

Programmable Linear DC Power Supply (single channel, 30 V/5 A)

DP711

Programmable Linear DC Power Supply (single channel, 50 V/3 A)

DP712



Standard Accessories

Power Cord

-

Either one of the following specified fuses:

Fuse 50T-050H 250V 5A (AC Selector: 100 Vac or 120 Vac)

Fuse 50T-025H 250V 2.5A (AC Selector: 220 Vac or 240 Vac)

-



Quick Guide (hard copy)

-



Optional Accessories

High Resolution

HIRES-DP700

Trigger (external synchronous trigger input and output)

TRIGGER-DP700



Timer

TIMER-DP700



9-Pin RS232 Cable (female-to-female, straight)

CB-DB9-DB9-F-F-150



DP700 Series Rack Mount Kit (for a single instrument)

RM-1-DP700



DP700 Series Rack Mount Kit (for two instruments)

RM-2-DP700



DP700 Series Rack Mount Kit (for three instruments)

RM-3-DP700
