PROMAX-12 Cable TV QAM Analyser Radio FM MATV MMDS

Code: PROMAX-12 CATV QAM MATV MMDS




Datasheet PDF, 0.44 Mb


Description

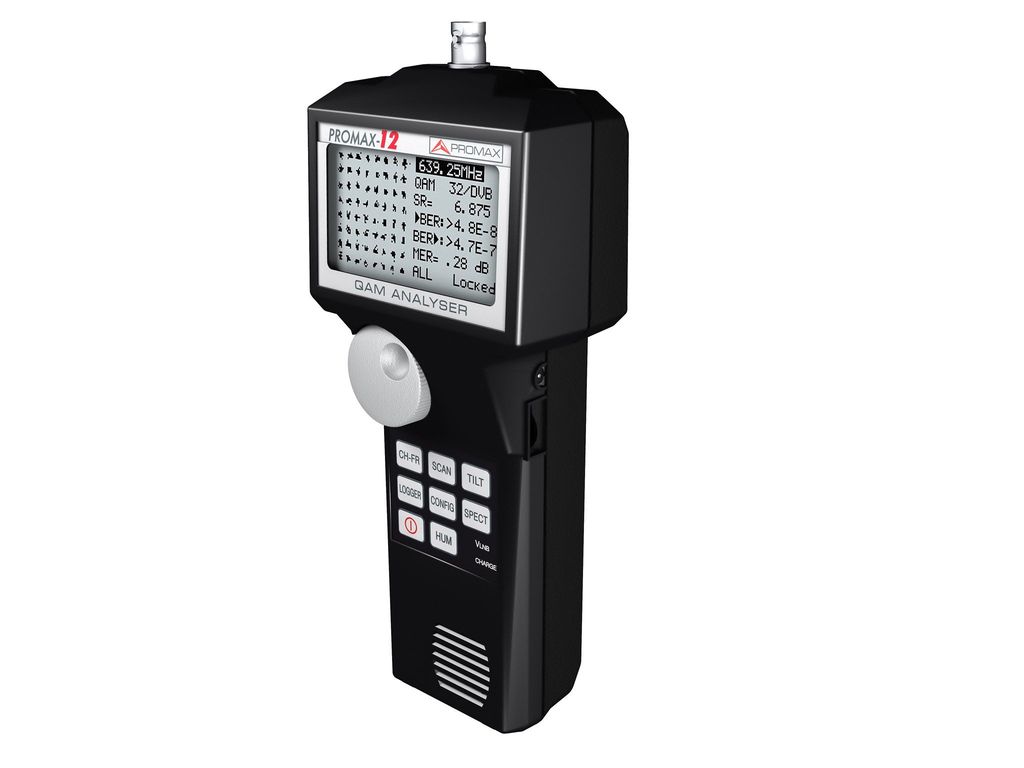

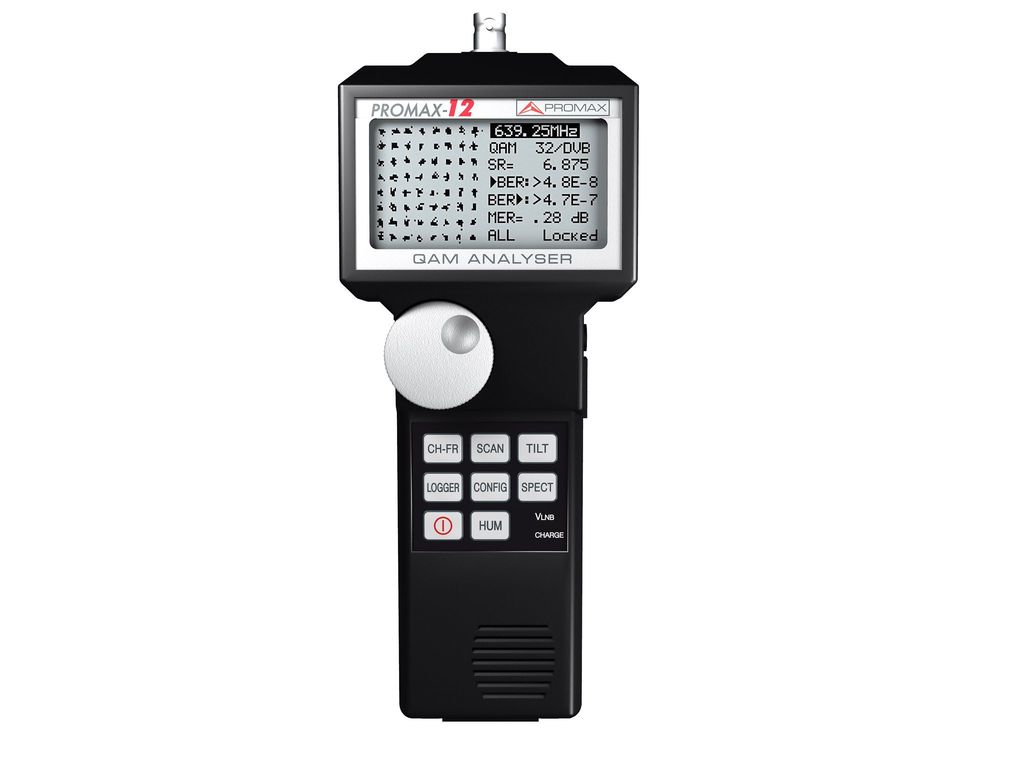

PROMAX 12: Cable TV QAM Analyser
It is s a multistantard instrument, so it can be used in any network in the world. It incorporates the measurements for installation, verification and maintenance of reception and distribution systems for FM radio, MATV, CATV and MMDS.

* FROM 5 TO 1005 MHz
* BER & MER ON QAM DIGITAL SIGNALS
* MULTISTANDARD:  16/32/64/256 QAM ANNEX A/B/C QPSK
* ANALOGUE CHANNELS
* DIGITAL CHANNELS
* BROADBAND POWER DETECTION
* SCAN
* C/N, CSO, CTB, VAC VOLTAGE, HUM
* MAX AND MIN HOLD
* CHANNEL POWER BY INTEGRATION
* TILT
* DATALOGGER
* PRINTING
* CONNECTION TO PC

The PROMAX-12 incorporates the measurements for installation, verification and maintenance of reception and distribution systems for FM radio, MATV, CATV and MMDS, including the sub-band (return path).


PROMAX-12 is a QAM analyser that also enables the measurement of DVB-T (COFDM) signals by installing the OP-012-O option.

Now it includes a new function to measures power level measurement over a complete frequency band, very useful for detecting saturation in the input of some broadband demodulators. PROMAX-12 is a multistantard instrument, so it can be used in any network in the world.

FUNCTIONSLevel meter, Logger, Scan, Tilt, Spectrum analyser, Transient detector, Cable digital analyser
DIGITAL MEASUREMENTSChannel power, C/N, Bit Error Rate /Pre-BER, Post-BER), MER, DVB-QAM constellation
ANALOGUE MEASUREMENTSHUM, Level, C/N, C/A ratio, CSO-CTB intermodulation
INCLUDED ACCESSORIESMains Power Adapter, Mains cable, Soft Carrying bag, F/F Connector Adapter, Rubber Shock Protector.
OPTIONAL ACCESSORIESCar lighter adapter, F/BNC connector adapter, F/IEC connector adapter, Hard transport case, F/F RF cable.
COFDM MEASUREMENT OPTIONOP-012-O option


Standard accessories

included accessories
Mains Power Adapter, Mains cable, Soft Carrying bag,
F/F Connector Adapter, Rubber Shock Protector.


Recommended options

optional accessories
F/BNC connector adapter, F/IEC connector adapter, Hard transport
case,F/F RF cable, PC / printer communication cable, Car lighter
adapter.
