Brand: Ponovo

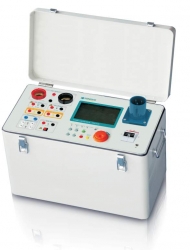

Pimary Injection Current test set 1000A Ponovo T1000

Code: Ponovo T1000



Datasheet PDF, 0.95 Mb

Description

This model is featured with its light weight and 2 minutes output time at 1000A.The LCD display, quick control button and rotating mouse makes it very easy to operate.



  • 2 minutes continuous output at 1000A
  • Flexible control over output, such as manual, ramp, etc
  • Independent Aux DC supply
  • In-built multi-meter facility
  • Typical CT testing functions are also included
  • Weight : 30kg
  • Can test relays and CT
  • Can be used as multimeter
  • Easy to control
  • Can also be controlled via external PC (optional)
  • Advanced high power constant current source with pulse width modulation technology





Main Specifications

AC Current (I1)



Range

1000A/7000VA

Accuracy

0.5%

Load time

120s at 1000A

AC Voltage (U1)



Range

500V/1200VA

Accuracy

0.5%

Load time

continuous

DC Voltage (Udc)



Range

750W

Accuracy

0.5%

Auxiliary DC supply

20-240V

Voltmeter

0-600V ac/dc

Ammeter

0-6A ac/dc

Binary input

2

Binary output

1

Dimension

260*330*500mm

Weight

37kg
