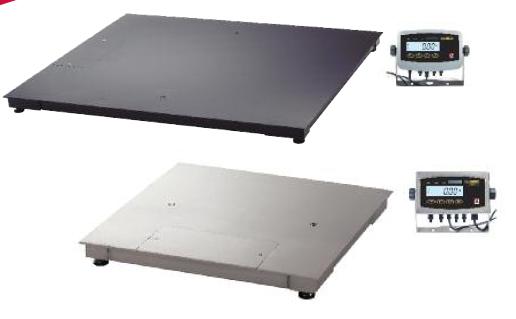

Industrial Paltform Floor Scale Ohaus VF

Code: Ohaus VF



Datasheet PDF, 0.15 Mb

Description

Four popular capacities: 300kg, 600kg, 1,500kg and 3,000kg,

5 sizes: from 800 x 800 mm to 1,500 x 2,000 mm

• Painted mild steel or bead blasted stainless steel fixed deck models, with structural channel bracing that ensures a rigid and durable construction

• Combination floor-pit mount design provides versatility for portable or stationary placement, above or below ground installation

• Four IP68 electro-polished stainless steel load cells, laser-weld hermetically sealed (OIML) - standardized on all models

• Four load cell mounted, swivel-design, self-adjusting stainless steel feet with removable rubber caps

• Top access IP67 dust and water immersion protected stainless steel junction box with heavy duty 5m long cable

• Available 2nd stage verified scale models 1:3000e with OHAUS T51 Series indicators

• OHAUS indicators featuring backlit LCD displays with high-visibility 25mm high digits, 3-color checkweigh LED and configurable beeper, 7 weighing units (kg, g, lb, oz, lb:oz, t, custom), universal switching power supply, RS232 and external input with optional 2nd RS232, RS422/485, AC and CD relay kits

• Available pit frames, mounting plates, and ramps with bottom support

channels that resist bending during heavy loads



Recommended options

MODEL CODE

ITEM NR.

CAPACITY

READABILITY

PLATFORM

VFS-CS30051XW

22018717

300kg

50g

800x800mm

VFS-CS60051XW

22018718

600kg

100g

800x800mm

VFS-DS30051XW

22018719

300kg

50g

1000x1000mm

VFS-DS60051XW

22018720

600kg

100g

1000x1000mm

VFS-DS150051XW

22018721

1500kg

200g

1000x1000mm

VFS-E60051XW

22018722

600kg

100g

1500x1250mm

VFS-E150051XW

22018723

1500kg

200g

1500x1250mm

VFS-E300051XW

22018724

3000kg

500g

1500x1250mm

VFS-ES60051XW

22018725

600kg

100g

1500x1500mm

VFS-ES150051XW

22018726

1500kg

200g

1500x1500mm

VFS-ES300051XW

22018727

3000kg

500g

1500x1500mm

VFS-G150051XW

22018728

1500kg

200g

2000x1500mm

VFS-G300051XW

22018729

3000kg

500g

2000x1500mm

VFS-CS30051XWM

22018743

300kg

100g

800x800mm

VFS-CS60051XWM

22018744

600kg

200g

800x800mm

VFS-DS30051XWM

22018745

300kg

100g

1000x1000mm

VFS-DS60051XWM

22018746

600kg

200g

1000x1000mm

VFS-DS150051XWM

22018747

1500kg

500g

1000x1000mm

VFS-E60051XWM

22018748

600kg

200g

1500x1250mm

VFS-E150051XWM

22018749

1500kg

500g

1500x1250mm

VFS-E300051XWM

22018750

3000kg

1000g

1500x1250mm

VFS-ES60051XWM

22018751

600kg

200g

1500x1500mm

VFS-ES150051XWM

22018752

1500kg

500g

1500x1500mm

VFS-ES300051XWM

22018753

3000kg

1000g

1500x1500mm

VFS-G150051XWM

22018754

1500kg

500g

2000x1500mm

VFS-G300051XWM

22018755

3000kg

1000g

2000x1500mm
