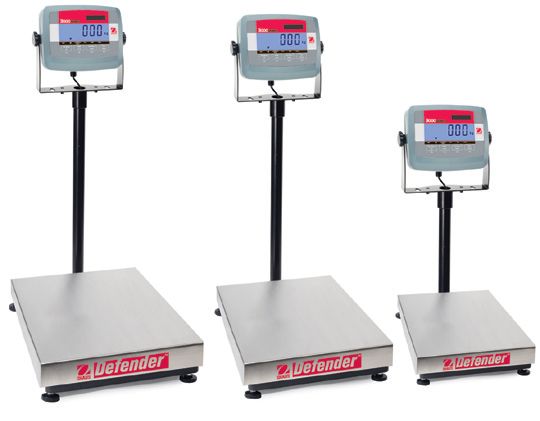

General Purpose Scale with Indicator Ohaus Defender 3000

Code: Ohaus Defender 3000




Datasheet PDF, 0.64 Mb

Description

Two rugged indicator models:

- T31P indicator features a high-impact ABS housing that is reversible for either wall, column or table-top mounting

- T32XW indicator features a 304 stainless steel housing with IP65 dust-tight and washdown protection; it features a flip-down front cover and only 4 sealing screws for ease of servicing

• Two base versions in three sizes:

- 304 stainless steel pan with painted carbon steel frame and aluminum IP67 load cell

- 304 stainless steel pan, frame and IP67 load cell

• Four scale capacity models: 30kg, 60kg, 150kg, 300kg

• Scales with maximum displayed resolutions 1:6000-7500d, Type-approved 1:3000e

• Built-in RS232 bidirectional interface, for printing and data communications

• Internal rechargeable sealed lead-acid battery included



Recommended options

MODEL CODE

ITEM NR.

CAPACITY

READABILITY

PLATFORM

D31P30BR

80250485

30kg (60lb)

5g (0.01lb)

355x305mm

D31P60BR

80250486

60kg (150lb)

10g (0.02lb)

355x305mm

D31P60BL

80250487

60kg (150lb)

10g (0.02lb)

550x420mm

D31P150BL

80250488

150kg (300lb)

20g (0.05lb)

550x420mm

D31P150BX

80250489

150kg (300lb)

20g (0.05lb)

650x500mm

D31P300BX

80250490

300kg (600lb)

50g (0.1lb)

650x500mm

D31P30BR-M

80250491

30kg

10g

355x305mm

D31P60BR-M

80250492

60kg

20g

355x305mm

D31P60BL-M

80250493

60kg

20g

550x420mm

D31P150BL-M

80250494

150kg

50g

550x420mm

D31P150BX-M

80250495

150kg

50g

650x500mm

D31P300BX-M

80250496

300kg

100g

650x500mm



More products OHAUS

INDUSTRIAL PALET SCALE OHAUS VF DEFENDER 5000

• 600kg / 1500kg Capacity
• 100g / 200g / 500g Readability
• Painted mild steel or bead-blasted stainless steel U-frame platform models
• U-frame ensures easy on/off loading of open-bottom pallets and containers
• Maximum safe static load on center: x 2.5 on 600kg model, x 2 on 1,500kg model



INDUSTRIAL PALTFORM FLOOR SCALE WITH INDICATOR OHAUS VE

• 1500kg / 3000kg Capacity
• 500g / 1000g Readability
• three platform sizes: 1m x 1m, 1.25m x 1.25m, 1.5m x 1.5m
• Four x OIML R60 approved IP67 alloy steel load cells
• Two rugged OHAUS indicator models



PRECISION PORTABLE ELECTRONIC BALANCE OHAUS TRAVELER

• 150g/ 300g/ 500g/ 1500g/ 3000g/ 5000g Capacity
• 0.01g/ 0.1g/ 1g Readability
• Weigh-Thru draughtshield for protection and stability
• Easily stackable storage
• Easy to install USB or RS232 interface options



FOOD INDUSTRY PORTIONING SCALE WITH HACCP STANDARD OHAUS FD

• 3kg / 6kg / 15 kg Capacity
• 0.1g / 0.2g/ 0.5g / 1g / 2g / 5g Readability
• All-stainless steel construction
• High resolution weighing cells with advanced electronics provide resolution up to 30,000d
• Checkweighing mode with 3 LED indicator and audible alarm
• Bright backlit LCD display
• Stable weight display within 2 seconds



WEIGHING SCALE OHAUS FIELD TEST

• 16kg Capacity
• 5g Readability
• Low cost, high precision



ANALYTICAL PRECISION OHAUS PIONEER

• 65g/ 110g/ 210g/ 410g/ 510g/ 2100g/ 4100g Capacity
• 0.1mg/ 1mg/ 0.01g / 0.1g Readability
• All glass draught shield with 3 sliding doors on 0.1mg and 1mg models
• Flexibility of available options
• Upfront level indicator


PORTABLE COMPACT COUNTING SCALE FOR GENERAL USE OHAUS EB

• 3kg / 6kg / 15kg / 30kg Capacity
• 0.1g / 0.2g / 0.5g / 1g Readability
• Maximum displayed resolution of 1:30,000
• Durable plastic housing with clear in-use cover
• Stainless steel weighing pan
• High contrast backlit LCD display with prominent 25mm high digits

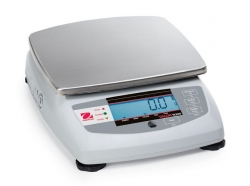

FOOD INDUSTRIAL PORTIONING SCALE CONFORMING HACCP STANDARDS OHAUS VALOR 5000
