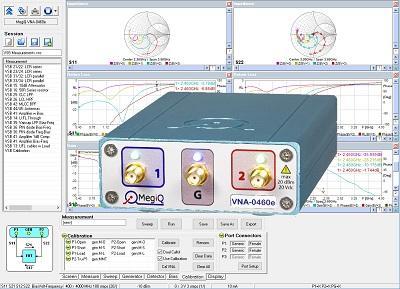

This VNA is ideal for measuring all kinds of micro-circuits like antennas, attenuators, amplifiers etc. Its frequency range includes most popular telecom bands like GSM-GPRS-LTE, Wifi, DECT, GPS, ISM, Zigbee, Bluetooth.

With its small size it can also be used near the antenna inside a large device or installation. It's also ideal for on-site measurements.

The extra Generator port provides an additional signal port that can be used for measuring 3-port devices.

A built-in Bias Generator provides a voltage/current source from -12V to +12V and 100mA. Each of the three ports can be routed to either the bias voltage, ground, or open.

Features:

2-port bidirectional VNA
Measure S11, S12, S21, S22
Frequency 400MHz to 4GHz (6GHz)
Power -30 to +5dBm
Sweep up to 20001 points
Port calibrated
Full 12-term normalization
Parametric sweeps
Match Circuit Calculator
Deembedding functions
Calkit manager
