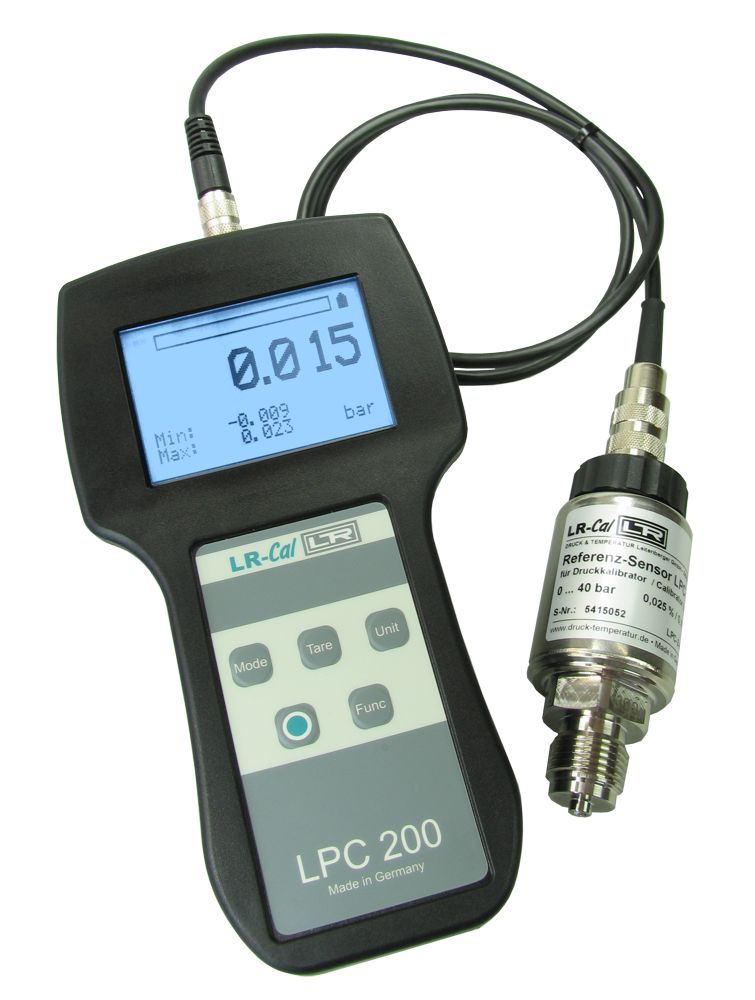

Electronic Precision Pressure Calibrator LR-Cal LPC 200

Code: LR-Cal LPC 200



Datasheet PDF, 0.17 Mb


Description

  • Very simple operation, easily-read display (backlighting selectable)
  • Changeable reference sensors (plug & play)
  • this means, up to 10 pressure ranges with one instrument
  • Ranges from 0...5.8 psi (400 mbar) up to 0...87000 psi (6000 bar)
  • (also vacuum-, compound- and absolute pressure ranges)
  • Accuracy up to 1000 bar: ±0.025% f.s.; up to 6000 bar: ±0.1% f.s.
  • Logging function, pressure rate, min-/max value, Bargraph, Tare
  • Issue calibration certificates with optional
  • PC-Windows®-software LPC-Cal
  • Pressure calibration kit’s, complete with calibration hand pumps as portable pressure source
  • Chargeable Lithium-Ion battery, incl. Charger, USB-interface
  • Switchable pressure unit PSI, bar, mbar, kPa, mmHg, inHg

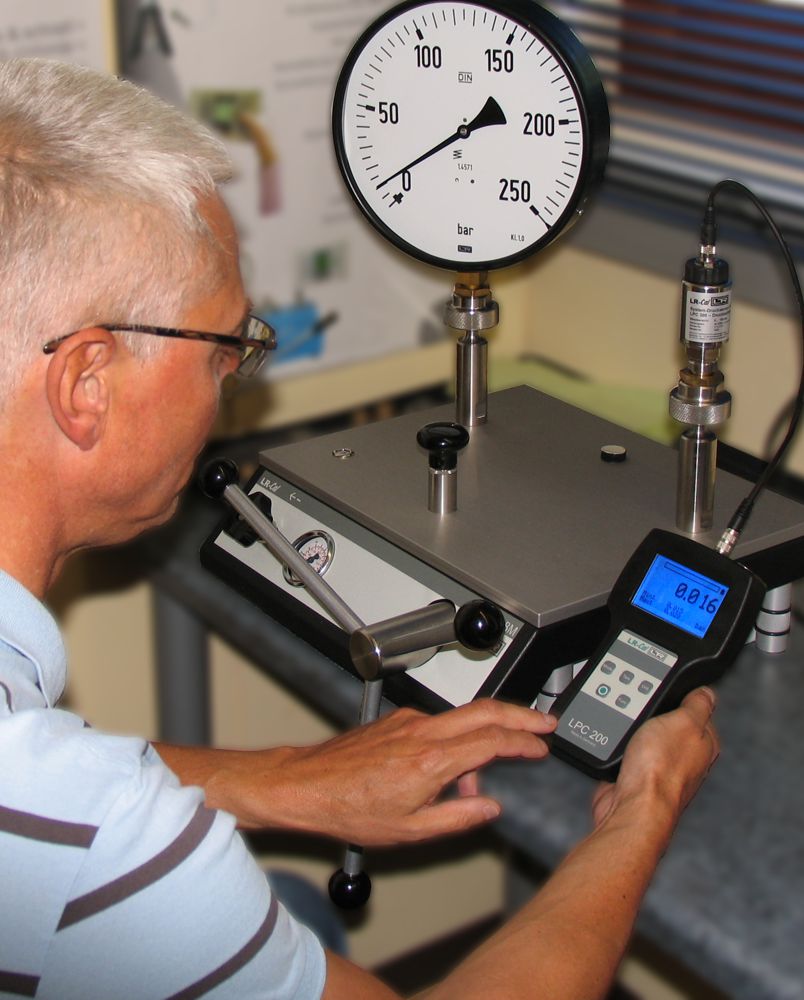

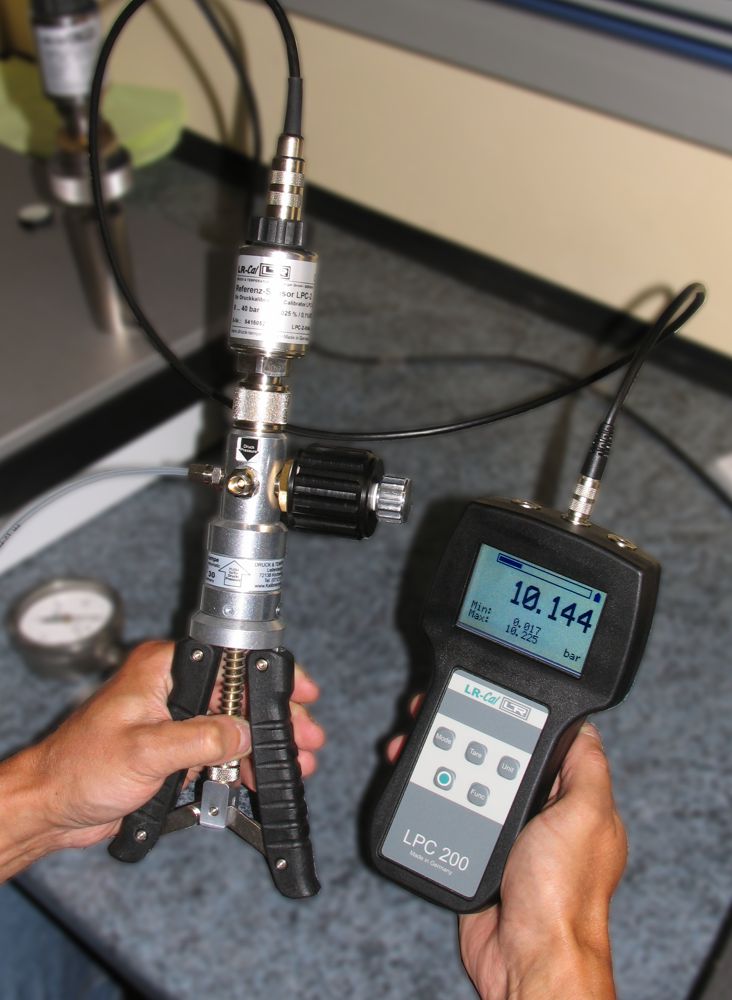

Together with a suitable calibration pressure source like the calibration hand pumps LPP 30

(pneumatic) or LPP 700 / LPP 1000 (hydraulic), the LPC 200 offers a pecision pressure

calibration system, suitable also for use on site, portable. The LPC 200 also opens up other helpful applications, e.g. recording of pressure curves(logging function), leak testing (pressure ratefunction). These useful functions can be easily activated or deactivated by pressing the respective keys.

A factory calibration certificate for each reference sensor certifies the total uncertainty of the measuring chain.

Alternatively, on request, a DKD calibration certificate can be supplied.



Using the optional LPC-Cal software, the logged data, stored in the LPC 200, can be

transferred to a PC via a USB connection, where it can be stored in an Excel® file for

documentation and further evaluation. In addition, LPC-Cal offers the possibility of PCsupported

calibration of pressure measuring instruments using the LPC 200.



More products LR-CAL

ELECTRONIC PRECISION PRESSURE CALIBRATOR LR-CAL LPC 200

• Very simple operation, easily-read display (backlighting selectable)
• Changeable reference sensors (plug & play)
• this means, up to 10 pressure ranges with one instrument
• Ranges from 0...5.8 psi (400 mbar) up to 0...87000 psi (6000 bar)
• Accuracy up to 1000 bar: ±0.025% f.s.; up to 6000 bar: ±0.1% f.s.
• Logging function, pressure rate, min-/max value, Bargraph, Tare
• PC-Windows®-software LPC-Cal


LOW PRESSURE SOURCE GENERATOR FOR VACUUM AND DIFFERENTIAL PRESSURES LR-CAL PC4

• PC4-10 0...10 mbar switch-selectable to 0...1,999 mbar, 10-times Overload
• PC4-100 0...100 mbar switch-selectable to 0...19,99 mbar, 10-times Overload
• PC4-1000 0...1000 mbar switch-selectable to 0...199,9 mbar, 2-times Overload


DOCUMENTING PROCESS PRESSURE CALIBRATOR LR-CAL LPC 300

• precise, high resolution, compact, rigid
• pressure ranges 0/250 mbar to 0/1000 bar
• 0/4 psi to 14500 psi, and vacuum & absolute ranges with accuracy ±0.025% FS
• high pressure ranges up to 0...8000 bar with accuracy ±0.1% FS
• USB- and RS232 interface
• calibration certificate


LOW PRESSURE CALIBRATOR WITH VACUUM AND DIFFERENTIAL PRESSURE GENERATION LR-CAL LCC 100

• generates and measures pressure and vacuum
• pressure up to 1 mbar, 10 mbar, 100 mbar
• and 1000 mbar (vacuum max. -600 mbar)
• Uncertainty up to ±0.1% FS (±1 digit)
• Great adjustment accuracy (0.01% FS)
• Chargeable Li-Ion battery
• Generates pressure by pressing a key
