KEITHLEY 6400 6482 6485 6487 Pico-ammeter Picoammeter

Code: KEITHLEY 6400 6482 6485 6487




Datasheet PDF, 0.31 Mb
Datasheet PDF, 0.82 Mb
Datasheet PDF, 0.8 Mb

Description

Keithley Series 6400 Picoammeters

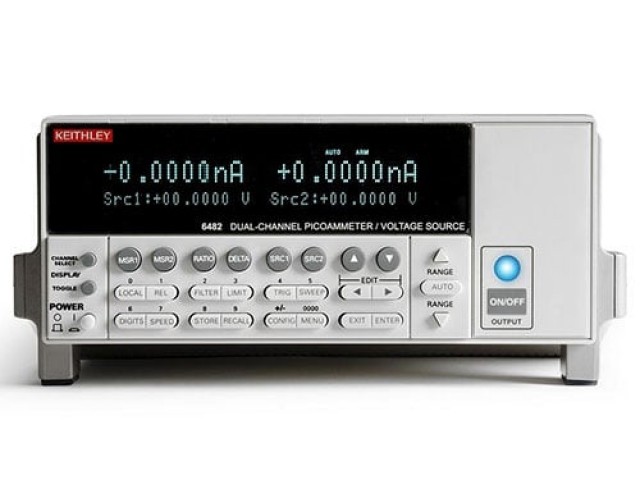

The cost-effective 5½-digit Model 6485 Picoammeter can measure currents from 10fA to 20mA, at speeds up to 1000 readings per second. The Model 6487 Picoammeter/Voltage provides higher accuracy and faster rise times than the 6485, a 500V source, and a damping function for use with capacitive devices. The Model 6482 Dual-Channel Picoammeter/Voltage Source offers higher measurement resolution than the Model 6485 or Model 6487 and dual, independent 30V voltage bias sources.


Features
Benefits
Current resolution as low as 1fA (6482)Allows measuring ultra-low leakage currents in components, dark currents in optical devices, and beam currents in microscopy instrumentation.
Burden voltage as low as 200μVAllows making current measurements with high accuracy, even in circuits with very low source voltages.
Dual-channel measurements (6482)Simplifies analyzing multi-channel devices, monitoring currents in multiple locations on materials, and recording data from multiple sensors at once.
Choose from 0, 1, or 2 built-in voltage sourcesEnsures you can find the voltage bias capabilities your application demands. Perform insulation resistance testing with the 500V source in the Model 6487 Picoammeter /Voltage Source.
Built-in analog outputsAllows transmitting measurement results to devices like DMMs, data acquisition boards, oscilloscopes, or strip chart recorders for signal response and trend analysis.
Measure currents up to 20mASupports measuring currents high enough for applications such as measuring 4-20mA sensor loops.
Up to 1,000 readings per secondOffers the high throughput production testing demands.
Built-in Trigger Link interfaceSimplifies synchronizing with other instruments and voltage sources by combining six independent selectable trigger lines on a single connector for simple, direct control over all instruments in a system.

ModelDescriptionCurrent RangeNumber of ChannelsPC InterfaceResistanceSourceList Price


64852nA - 20mA1GPIB, RS-232--4.160,00 €

64872nA - 20mA1GPIB, RS-232

64822nA - 20mA2GPIB, RS-232-0 - ±30V, each channel9.610,00 €


More products KEITHLEY

PULSE PATTERN GENERATOR 165 MHZ KEITHLEY 3401-F / 3401-R

• 1 mHz - 165 MHz frequency output range
• 1 channel
• 3 ns - 1000 s pulse width range
• 10 V amplitude into 50 O, 20 V into 1 k O



DIGITAL SOURCE METER 6.5 DIGIT AIRBAG TEST SYSTEM KEITHLEY DMM 2000

• 6.5 digit DMM
• Single-instrument solution for continuity and hi-pot type leakage resistance measurements
• Programmable constant V source (50-500V) supports high speed, high resistance measurements
• Programmable constant I source (0-50mA) with dry circuit clamp helps prevent device stress or damage during low resistance measurements



PCI BOARD 8-ANALOG + 32 DIGITAL OUTPUT KEITHLEY KPCI-3130

• 20mA output current without power supply
• 8 analog outputs
• 32 high-current digital I/O lines (user configurable)



2-SLOT SYSTEM DMM, DATA ACQUISITION, SWITCH, DATALOGGER KEITHLEY 2700

• Combines functions of DMM, switch system, and datalogger
• True 6½-digit (22-bit) resolution
• Choice of 12 switch/control plug-in modules
• Up to 200 differential input channels



PCI BOARD DIGITAL I/O 16-CHANNELS OPTICALLY ISOLATED KEITHLEY KPCI-PDISO8A

• 16 optically isolated solid-state relays and digital inputs
• Direct, non-polarized switching and sensing: DC up to 60VDC, AC up to 30Vrms
• High load current capability up to 350mA

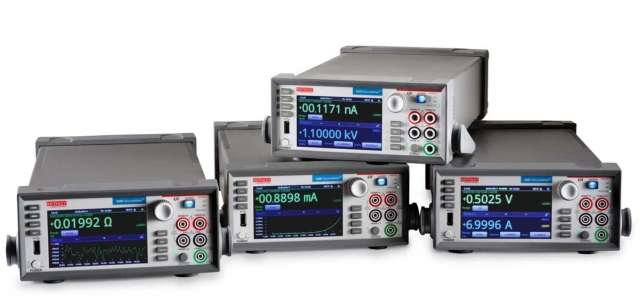

KEITHLEY 2400 2450 2460 2461 2470 SMU SOURCE-METER SMU PRECISION MULTIMETER+SOURCE
