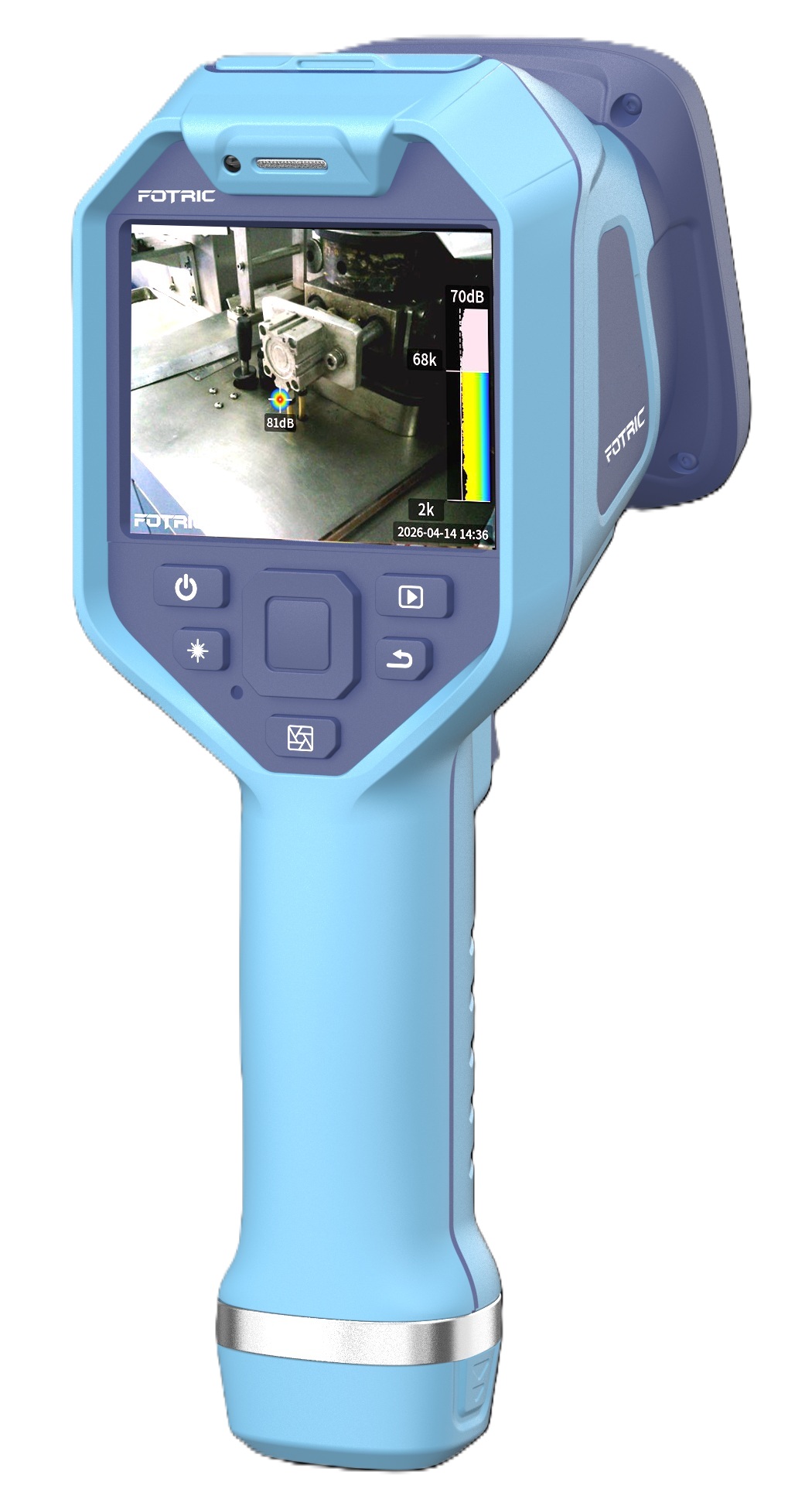

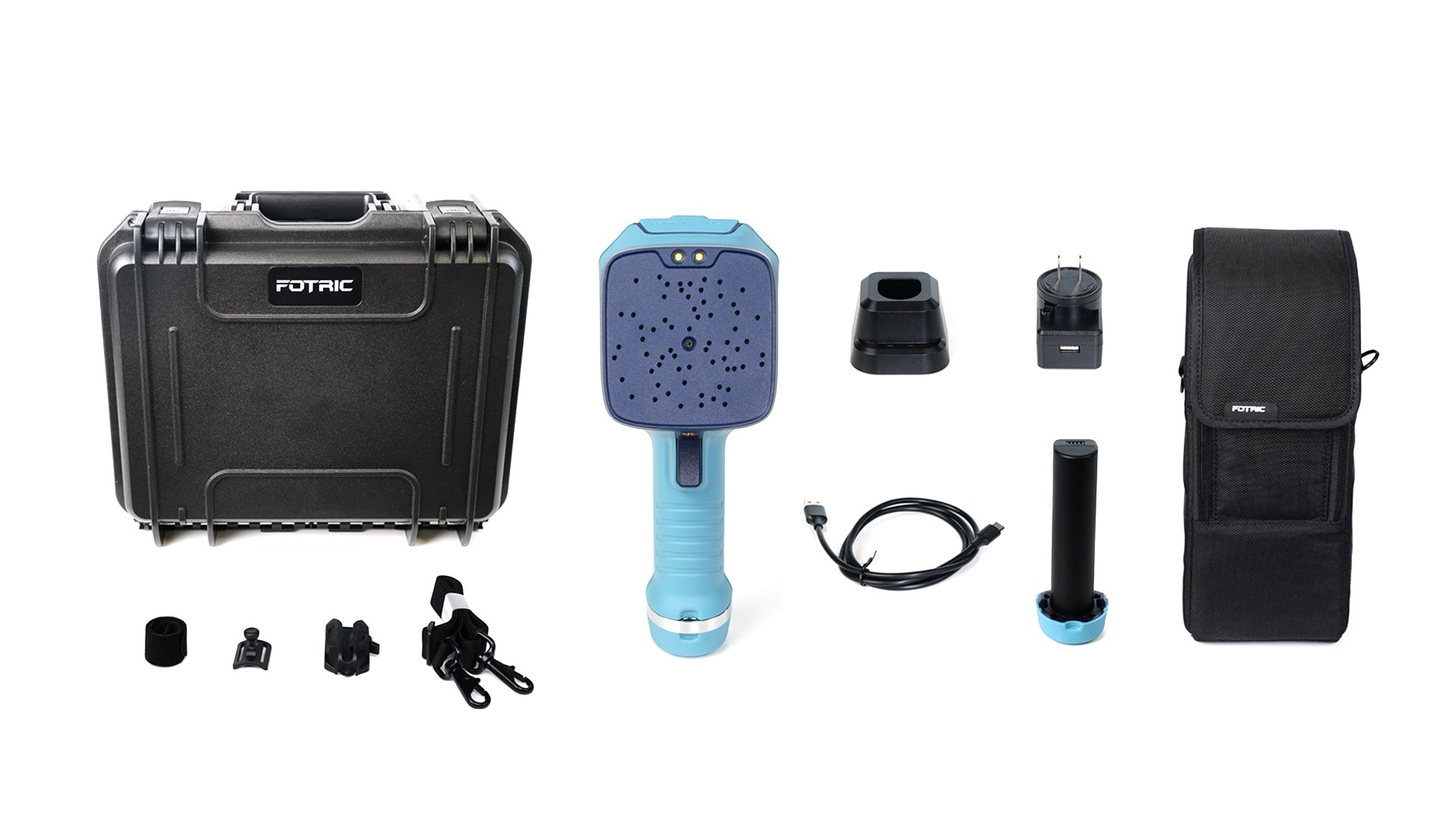

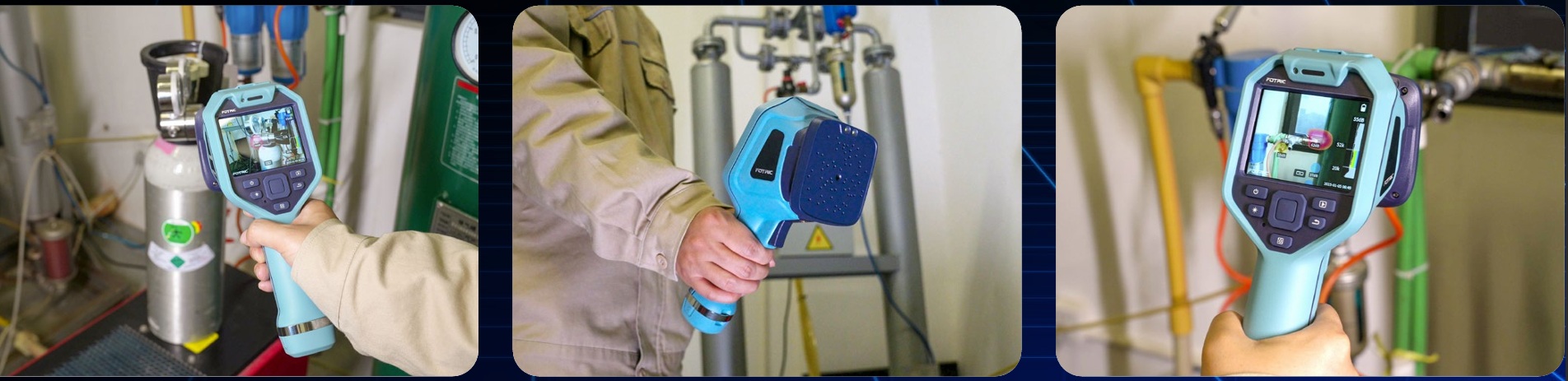

The FOTRIC TD2e Kit acoustic imaging camera transforms inaudible ultrasonic signals into visible sound maps, allowing precise and non-contact detection of leaks, loose components, and abnormal vibrations. With a 64-microphone array, real-time beamforming, and multi-source visualization, it ensures fast, accurate inspections across industrial systems.

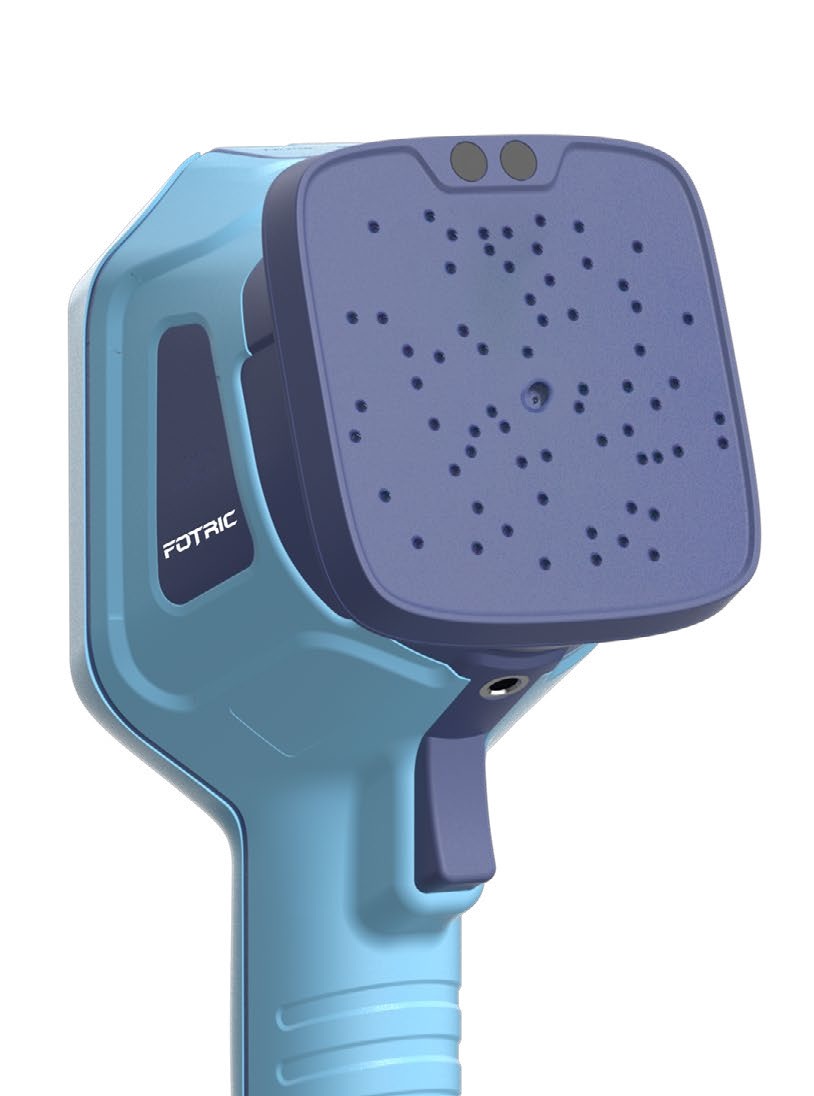

High-density microphone array with 64 MEMS digital microphones
Industrial digital camera: 5 MP, 58° × 45° field of view
≥3 hours of single-battery runtime, removable;
Device rated IP54
Detection distance: 0.3~60m
Positioning frequency range 2k–100kHz
What is Acoustic Imaging?
Limitation of Human Perception
The human ear can only perceive sounds in the range of 20 Hz to 20 kHz. However, hidden faults such as gas leaks, bearing wear, and electrical discharges often emit much higher frequency ultrasound
(>20 kHz) — sounds that are imperceptible to the human ear and beyond the capabilities of traditional stethoscopes or microphones
How does it work?
Microphone Array: Simultaneously captures sound signals from multiple sources to enhance spatial accuracy.
Acoustic Image Generation
Acoustic Image Overlay: Displays sound source locations as a heatmap over the image.
Beamforming Algorithm: Focuses on sound sources from specific directions, filtering out environmental noise.
The FOTRIC TD2e acoustic imaging camera can detect not only audible sound, but also high frequency ultrasonic signals that are beyond the range of human hearing.
This means it can easily capture things like:

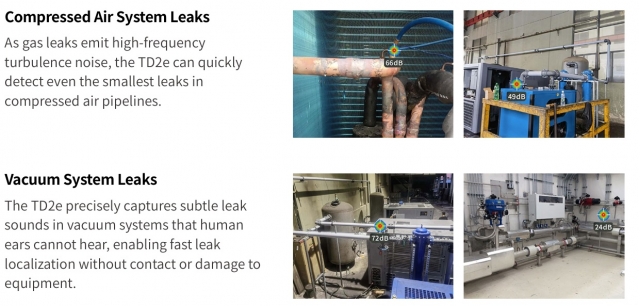

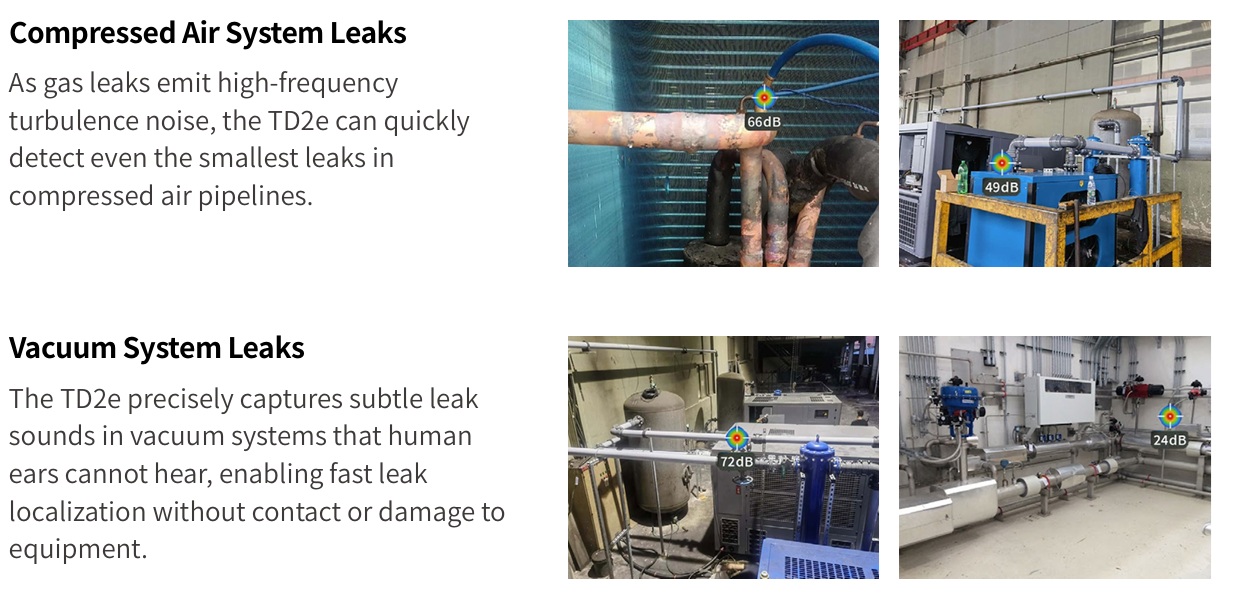

Compressed Air System Leaks
As gas leaks emit high-frequency turbulence noise, the TD2e can quickly detect even the smallest leaks in compressed air pipelines.
Vacuum System Leaks
The TD2e precisely captures subtle leak sounds in vacuum systems that human ears cannot hear, enabling fast leak localization without contact or damage to equipment.

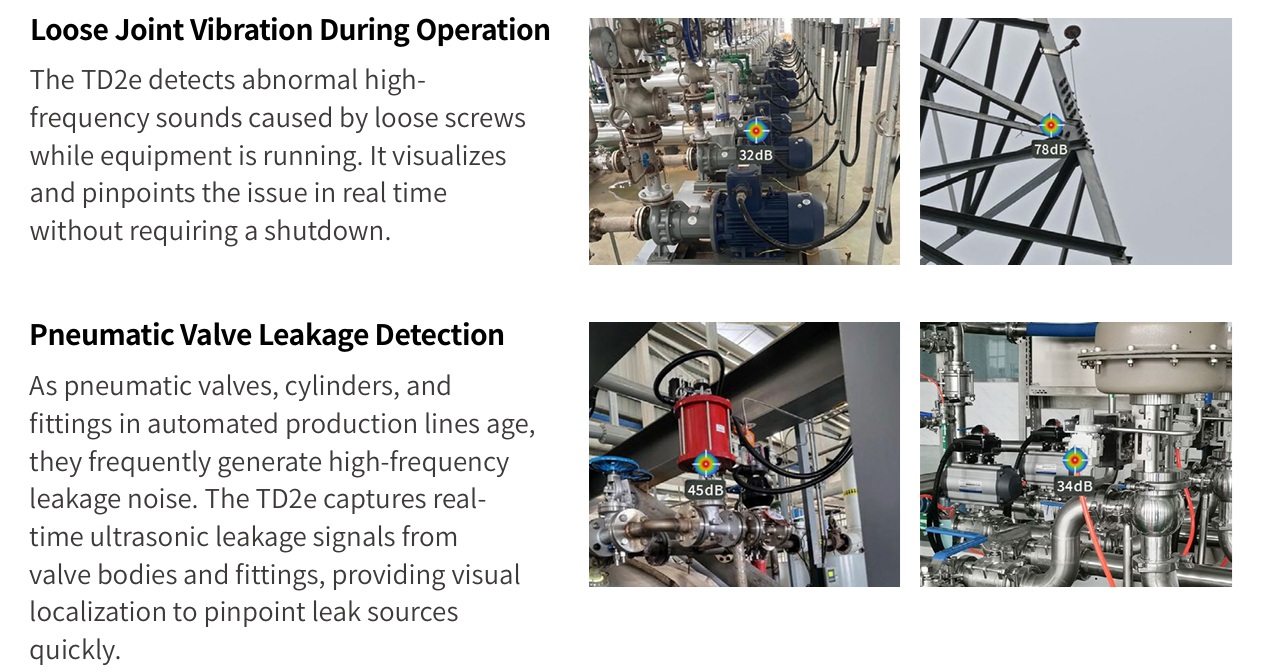

Loose Joint Vibration During Operation
The TD2e detects abnormal highfrequency sounds caused by loose screws while equipment is running. It visualizes and pinpoints the issue in real time without requiring a shutdown.
Pneumatic Valve Leakage DetectionAs pneumatic valves, cylinders, and fittings in automated production lines age, they frequently generate high-frequency leakage noise. The TD2e captures real time ultrasonic leakage signals from valve bodies and fittings, providing visual localization to pinpoint leak sources quickly.
Professional-grade Features

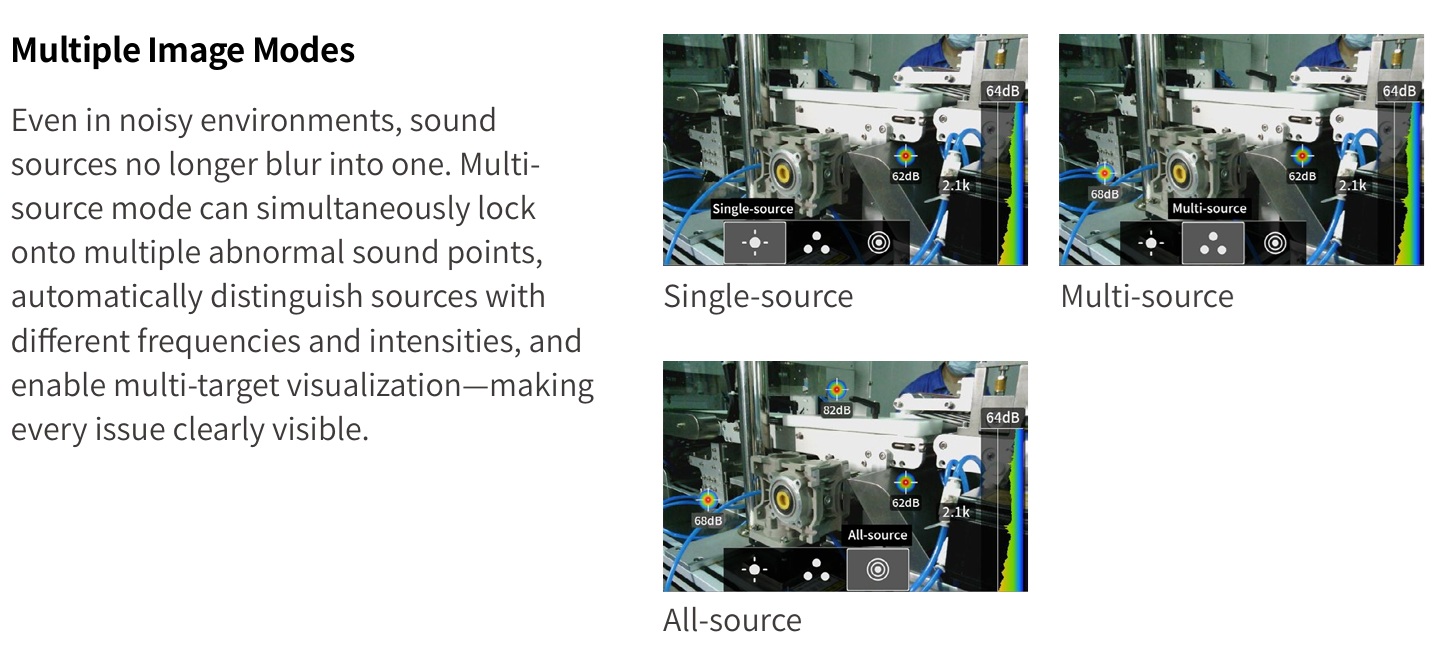

Multiple Image Modes Even in noisy environments, sound sources no longer blur into one. Multi source mode can simultaneously lock onto multiple abnormal sound points, automatically distinguish sources with different frequencies and intensities, and enable multi-target visualization—making never issue clearly visible.

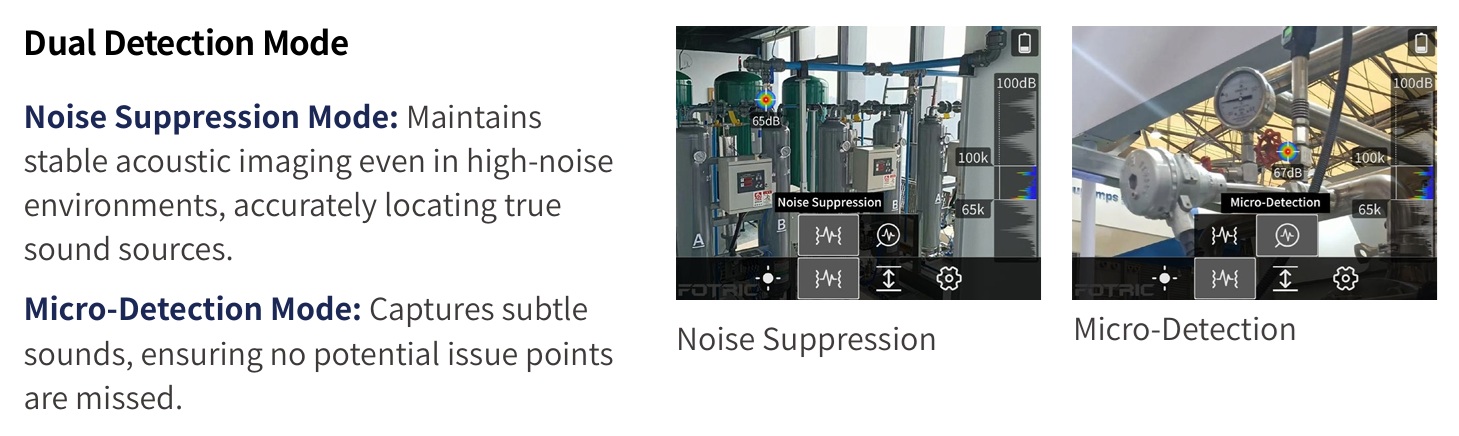

Dual Detection Mode Noise Suppression Mode: Maintains stable acoustic imaging even in high-noise environments, accurately locating true sound sources.
Micro-Detection Mode: Captures subtle sounds, ensuring no potential issue points are missed
Datasheet
PDF, 2.19 Mb
