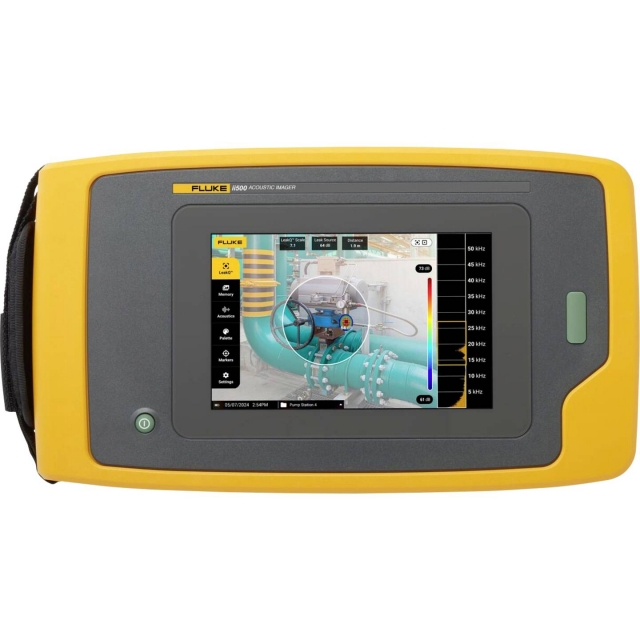

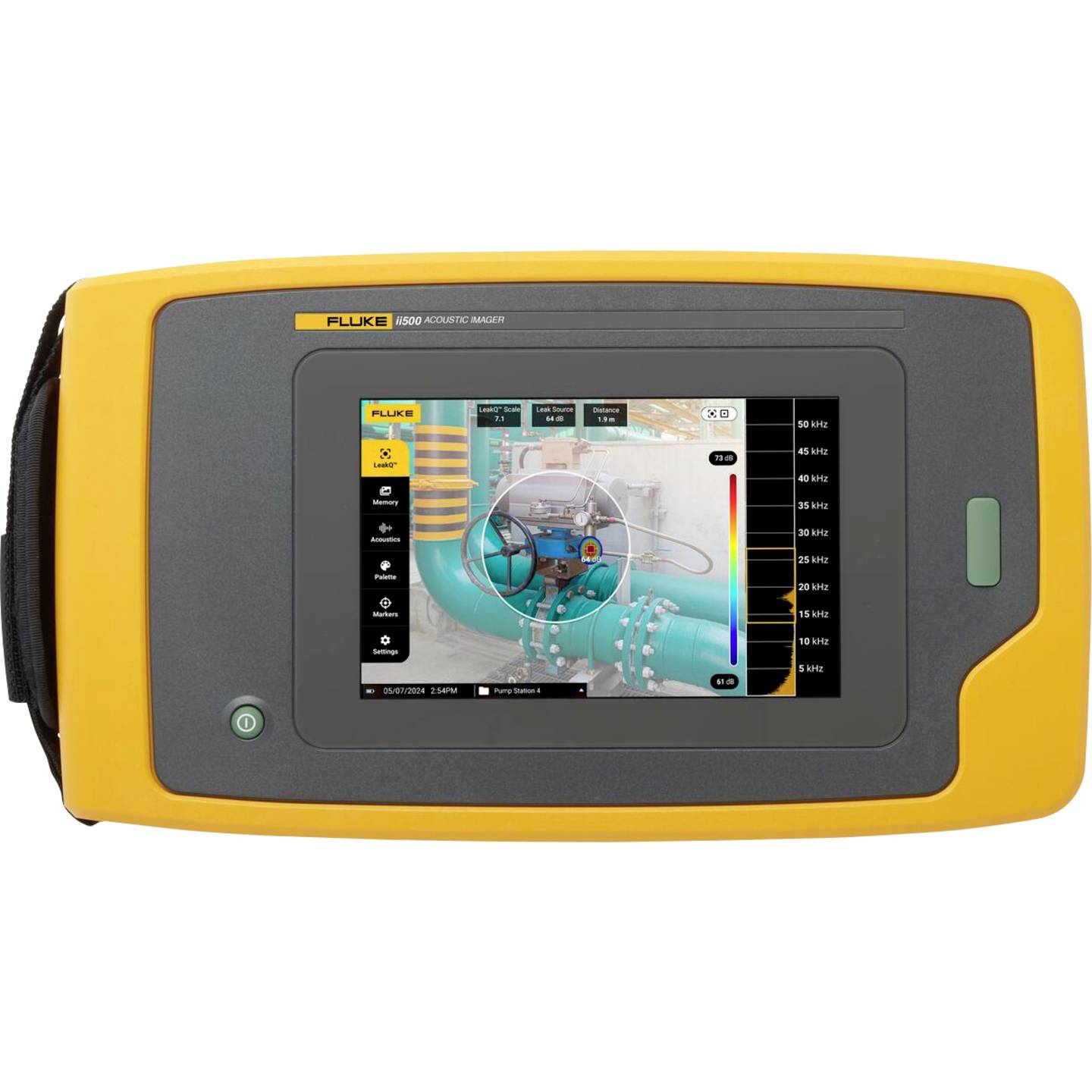

Fluke ii500 Acoustic Camera for Detection and Inspection of compressed gas leaks

Code: ii500 FLK-II500 5609242



Datasheet PDF, 1.99 Mb


Description

Easy, fast, and safe visual detection of compressed gas leaks.
The 7" LCD touchscreen displays a SoundMapâ„¢ over visual images, making it easier to locate leaks quickly.
Intuitive interface requires no training for maintenance teams.

Fluke ii500 Acoustic Imager with LeakQâ„¢: Detect, Locate, and Capture Gas Leaks

The Fluke ii500 Acoustic Imager, equipped with LeakQâ„¢ technology, empowers maintenance teams to detect and locate gas leaks efficiently. Designed for ease of use, it requires no specialized training. Even during peak production periods, teams can effectively identify gas and vacuum leaks. The ii500's advanced acoustic leak detection technology isolates leak sound frequencies, making leaks visible even in noisy environments.

Key Features:

Ready-to-Use: The Fluke ii500 is ready out of the box. Its rugged, ergonomic design ensures easy handling, while the large 7" LCD display allows for clear leak visualization.
Quick Detection: Even users with minimal experience can start detecting leaks within minutes. The tool estimates relative leak size and cost, incorporating a new distance-estimation feature and the 1-10 LeakQâ„¢ severity index.
SoundMapâ„¢ Overlay: The 7" LCD touchscreen overlays a SoundMapâ„¢ on visual images, facilitating rapid leak location identification.
Intuitive Interface: Easily isolate leak sound frequencies and filter out background noise.
Tagging and Organization: Use image and video tagging, annotation, and folders for efficient organization.
Leak Sizing: Prioritize repairs based on relative leak size.
Collaboration: The reporting tool allows sharing of visuals, tagging, and notes with team members and repair personnel.
Visualizing Sound

The Fluke ii500 Acoustic Imager visualizes sounds from small leaks in compressed air, gas, and vacuum systems. Its array of microphones provides an expanded field of view. Designed explicitly for noisy production facilities, the Fluke ii500 Industrial Acoustic Imager (Sonic Industrial Imager) features SoundSightâ„¢ technology, which is simple to learn and implement.

What’s the Best Acoustic Imager for my needs?

The following table highlights the main differences between the Fluke acoustic cameras. Please see the datasheet for a complete comparison of specifications.

Specifications
Key Featuresii500
Sensors
Frequency band2 kHz to 52 kHz
Detection range10.5 to > 50 meters (1.6 to > 164 feet)
Field of view (FOV)63°± 5°
Nominal frame rate25 FPS
Built-in digital camera (visible light)
Field of view (FOV)63°± 5°
FocusFixed lens
ZoomNo zoom
Resolution0.3 MP
Display
Size7" LCD with backlight, sunlight readable
Resolution1280 x 800 (1,024,000 pixels)
TouchscreenCapacitive
Acoustic imageSoundMapTM  image
Image storage
Storage capacity20 GB
(> 5,000 pictures / > 999 videos)
Image formatBlended visual and SoundMapTM  .JPG or .PNG
Video formatBlended visual and SoundMapTM  .MP4
Video lengthUp to 5 minutes
Digital exportUSB-C for data transfer
Acoustic measurements
Measurement range (typical)15.4 to 115.2 dB SPL (± 1 dB SPL 2 kHz)
5.6 to 102.5 dB SPL (± 2 dB SPL 19 kHz)
28.4 to 131.1 dB SPL (± 1 dB SPL 35 kHz)
41.8 to 133.1 dB SPL (± 3 dB SPL 52 kHz)
Classification and quantification
LeakQTMLeak size scale (1-10)
PDQ ModeTM–
MecQTM–
Auto max/min dB gainAuto
Frequency band selectionUser selectable through user-made presets or manual entry
Battery
BatteryRechargeable and field replaceable Li-ion battery
Battery life6 hours
Battery charging time3 hours
Battery charging systemExternal (Bay charger)
Software
Ease of useIntuitive user interface
Acoustics: Show dB scaleOn/Off
Acoustics: Min/Max dBManual/Auto
Acoustics: Profiles–
Acoustics: High frequency–
Acoustics: Multiple sourcesSingle source
Palette: Colors3: Grayscale, Ironbow, and Blue-Red
Palette: Overly transparencyYes: 1-100 %
Grayscale modeYes
Centerpoint markersOn/Off
Trend graphsFrequency and dB scale
SpotmarkersdB level reading at center point of image
Leak valuesLeakQTM  scale (1-10)
Master admin menu–
AnnotationAsset name; Asset ID; Asset type; Leak type; Gas type; Pressure
Photo notesUp to 4 photos notes for reference
Asset inspection status–
Asset IDText input and automatic QR code based asset ID identification
Actions annotation–
Other–
General specifications
Tripod holder / connector–
USB1 x USB-C
Wireless–
Operating Temperature-10 to 45 °C (14 to 113 °F)
Storage Temperature-20 to 70 °C (-4 to 158 °F) without batteries installed
Relative humidity10 to 95 % non-condensing
Size (H x W x L)186 mm x 322 mm x 68 mm (7.3 inches x 12.7 inches x 2.7 inches)
Weight (battery included)2.1 kg (4.6 pounds)
Ingress Protection (IP)IP40
Warranty2 year
Fluke Premium CarePremium Care Standard2
Self-diagnostic notificationArray-health test to identify when microphone array needs attention
Supported languagesDutch, English, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
RoHS


Standard accessories

Models: Fluke ii500 Acoustic Imager
FLK-II500
Fluke ii500 Acoustic Imager

Part#: 5609242


Includes:

Fluke ii500 Acoustic Imager
AC power supply and battery pack charger (including universal AC adapters)
Rugged lithium-ion smart battery pack
USB cable
Rugged, hard carrying case
Adjustable hand strap and neck strap
Sensor array protection cover
