600 A AC current measurement with fixed jaw
600 V AC and DC voltage measurement
True-rms ac voltage and current for accurate measurements on non-linear signals
6000 O resistance measurement
1000 µF capacitance measurement
State of the art signal processing allows for use in noisy electrical environments while providing stable readings
CAT IV 300 V, CAT III 600 V
Large, easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement
Safety conformance EN/IEC 61010-1:2001; 600V CAT III, 300V CAT IV
Three-year warranty
Soft carrying case

Standard accessories

Coated instruction card
Safety information sheet
Soft carrying case
TL75 test leads
Two AA Alkaline batteries

Recommended options

TL223 SureGrip™ Electrical Test Lead Kit
TL71 Test Lead Set
TL224 SureGrip™ Silicone Test Lead Set
AC72 Alligator Clip Set
AC285 SureGrip™ Alligator Clip Set
AC220 SureGrip™ Alligator Clip Set
AC87 Heavy Duty Bus Bar Clips
AC89 Heavy Duty Insulation Piercing Test Clip
TL75 Hard Point Test Lead Set
TP1 Slim Reach Test Probe (flat blade)
Fluke MeterCleaner Wipes
H3 Holster (330 Series)
C33 Soft Carrying Case
C1600 Gear Box for Meter and Accessories
C550 Tool Bag
LVD2 Volt Light
L206 Deluxe LED Hat Light
LVD1 Volt Light

More products FLUKE

FLUKE 190-504 190-504/S HANDHELD SCOPEMETER OSCILLOSCOPE 4X500 MHZ

• 4-channels isolated 500MHz
• CAT III 1000V / CAT IV 600V safety rated
• Dedicated 5000 Count digital multimeter in two-channel models
• Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
• IP-51 rated for dust and drip proof to withstand harsh environments
• Isolated USB ports for memory devices and PC connectivity

CURRENT CLAMP METER AC/DC TRUE-RMS 2000 A FLUKE 355

• 2000 A AC + DC true-rms, 1400 A AC, and 2000 A DC
• large 58 mm (2.3 in) jaw capacity
• 1000 V AC + DC true-rms, 600 V AC, and 1000 V DC
• Accurately measure frequency up to 1 kHz
• Resistance to 400 Kohms

INFRARED THERMOMETER WITH CONTACT THERMOCOUPLE FLUKE 566/ FLUKE 568

• Measure -40 °C to 800 °C /-40 °F to 1472 °F (568) or -40 °C to 650 °C/-40 °F to 1202 °F (566)
• Easily access advanced features with the soft-key buttons and dot-matrix display
• Measure smaller objects from further away, with a distance-to-spot ratio of 50:1 (568) or 30:1 (566)
• Compatibility with all standard miniconnector Type-K thermocouples allow you to preserve your thermocouple investments

FLUKE 88V/A DELUXE AUTOMOTIVE KIT DIGITAL MULTIMETER 4.5 DIGIT

• 4.5 digit high resolution mode for precise measurements
• 20,000 count
• 0.1% dc accuracy
• Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
• Conductance for coil testing
• Magnetic hanger (included with kit) for easy set-up and viewing while freeing your hands for other tasks

FLUKE 87V HANDHELD DIGITAL MULTIMETER 4.5 DIGIT

• 4.5 digit
• 20,000 count resolution for precise measurements
• 0.05% basic accuracy
• True-rms ac voltage and current for accurate measurements on non linear signals
• Selectable filter for accurate voltage and frequency measurements on motor drives
• Built in thermometer lets you carry one less tool (TC probe included)

FLUKE 190-204 190-204/S HANDHELD SCOPEMETER OSCILLOSCOPE 4X200 MHZ

• 4-channels isolated 200MHz
• CAT III 1000V / CAT IV 600V safety rated
• Dedicated 5000 Count digital multimeter in two-channel models
• Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
• IP-51 rated for dust and drip proof to withstand harsh environments
• Isolated USB ports for memory devices and PC connectivity

FLUKE CNX 3000 WIRELESS DIGITAL MULTIMETER

• AC and DC voltage measurements to 1000V
• AC and DC current with 0.01 mA resolution
• Continuity, resistance, diode test, capacitance and frequency measurements
• MIN/MAX Recording
• CAT III 1000 V, Cat IV 600V; IP54

PROCESS MULTIMETER FLUKE 787

• 0 to 1000 V DC/AC Voltage measure
• 0 to 1 A Current measure
• 0 to 20 mA, 4 to 24 mA Current source
• DMM and loop calibrator in one tool

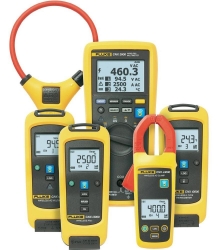

WIRELESS MEASUREMENT SYSTEM FLUKE CNX 3000 SERIES

• Fluke CNX 3000 Wireless Multimeter
• Fluke CNX v3000 AC Wireless Voltage Module
• Fluke CNX i3000 iFlex AC Wireless Current Module
• Fluke CNX a3000 AC Wireless Current Clamp Module
• Fluke CNX t3000 K-Type Wireless Temperature Module

DIGITAL CONTACT THERMOMETERS SERIES FLUKE 50 II

• Relative time clock on MIN, MAX, and AVG provides a time reference for major events
• Electronic Offset function allows compensation of thermocouple errors to maximize overall accuracy
• Measures J, K, T, and E-types of thermocouples
• Readout in �C, �F, or Kelvin (K)
• Data Logging up to 500 points of data with user adjustable recording interval(Fluke 53 II and Fluke 54 II)
