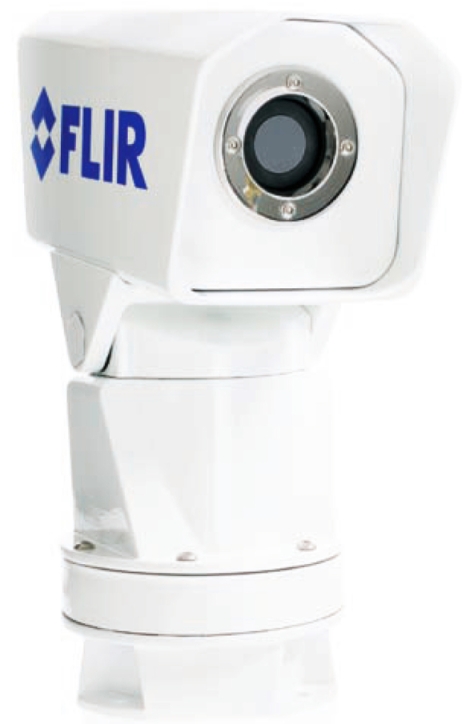

Flir Navigator II Thermal Camera for Maritime Navigation Applications
OBSOLET PRODUCT ( * OUT OF USE )

Code: Flir Navigator II




Description

FLIR Navigator II



The Navigator II is an economic, fixed mounted thermal imager. It provides crisp, clear thermal imagery in total darkness, light fog, and smoke. It features the same thermal imaging technology found in many of FLIR's most sophisticated marine systems, but is packaged for users who have navigation as their primary application. Unlike other night vision systems that require low amounts of light to generate an image, the Navigator II needs no light at all.





The Navigator II comes at an extremely affordable price. As from now on, price is no longer an object to use thermal imaging on board of your vessel.

The Navigator II provides crisp, clear thermal imaging, 320 x 240 pixels. This allows the user to see more detail and detect more and smaller items.

The Navigator II is equipped with a 19 mm wide angle lens. Not only does it give you an extremely wide field of view (36°), it also eliminates the need for stabilization of the system.

The Navigator II is an extremely rugged system. Its vital core is well protected, IP66 rated, against humidity and water. The Navigator II can be cleaned with a hose just like any other equipment. The Navigator operates between -25°C and +55°C.

Extremely lightweight, the Navigator II can be installed at any position on board. They can be mounted at an optimal observation point providing maximum field of view.

The Navigator II is extremely easy to integrate on board of a yacht. The images from the Navigator’s 320 x 240 pixels detector can be displayed on virtually any existing multifunction (i.e. chart plotter) display that accepts composite video.





Navigator II Specifications



IMAGING PERFORMANCE

Detector type

Focal Plane Array (FPA), uncooled microbolometer 320 x 240 pixels

Spectral range

7.5 to 13µm

Field of view

36° (H) x 27° (V) with 19 mm lens

Spatial resolution (IFOV)

2 mrad

Thermal sensitivity

100 mK at +25°C

Image frequency*

7.5Hz (NTSC) or 8.3 Hz (PAL)*

Focus

Fixed

Image processing

Digital Detail Enhancement (DDE)





IMAGE PRESENTATION

Video output

NTSC or PAL composite video

Connector types

BNC (1) provides video output
BNC to RCA adapter included





POWER

Requirements

12 V DC +30% / -10%

Consumption

3 W nominal, 30 W peak





ENVIRONMENTAL SPECIFICATIONS

Operating temperature range

-25°C to +55°C

Storage temperature range

-50°C to +80°C

Automatic window defrost

Yes

Humidity

100% relative humidity salt spray

Sand/dust, icing

Mil-Std-810E

Encapsulation

IP66

Shock

IEC 60068-2-27 and Mil-Std-810

Vibration

Mil-Std-810E





PHYSICAL CHARACTERISTICS

Camera Weight

3.0 kg

Camera Size

18.8 cm tall x 10.2 cm wide x 18.5 cm deep

Shipping weight (camera + packaging)

5.0 kg

Shipping size (camera + packaging) (L x W x H)

36 cm x 41 cm x 21 cm





  • 30 Hz NTSC or 25 Hz PAL available. Subject to approval of the US Department of Commerce for use outside the USA.

    The Navigator is backed up by two years of full warranty


Standard accessories

STANDARD PACKAGE

Thermal imager with 7.6 m of cable and power switch - Operator manual



More products FLIR

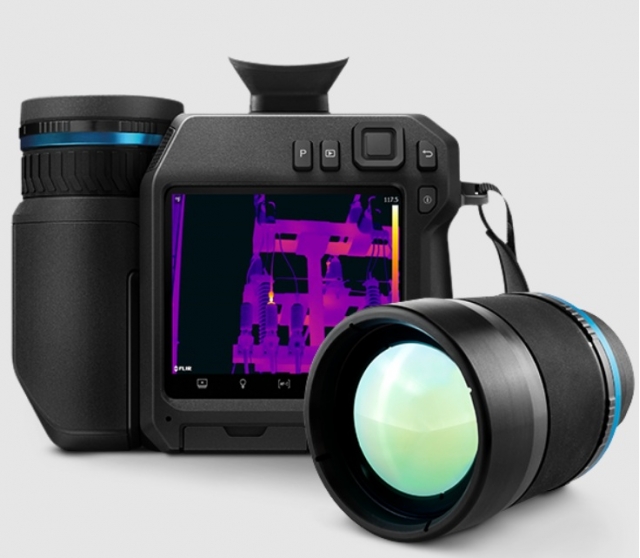

FLIR T840 INFRARED CAMERA

• 464 × 348 thermal resolution
• Measures temperatures up to 2000°C (3632°F)
• 1-Touch Level/Span adjustable contrast

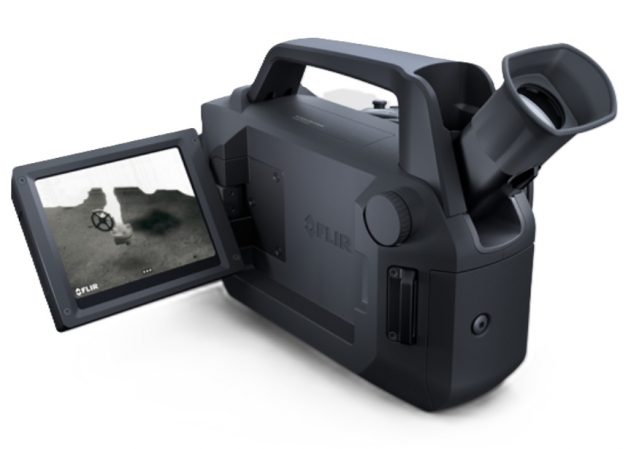

FLIR G346 INFRARED CAMERA FOR EMISSION DETECTION OF CARBON MONOXIDE NITROUS OXIDE N2O

• The FLIR G346 is an innovative Optical Gas Imaging (OGI) camera
• used to detect carbon monoxide (CO), nitrous oxide (N₂O) and other dangerous and environmentally harmful gases in steel plants and industrial manufacturing facilities

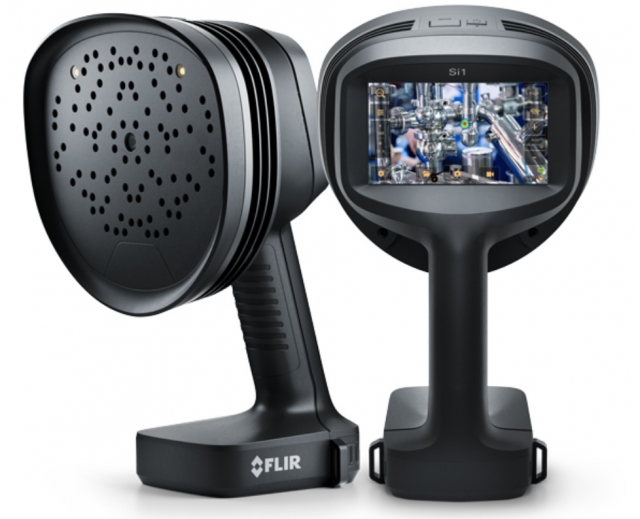

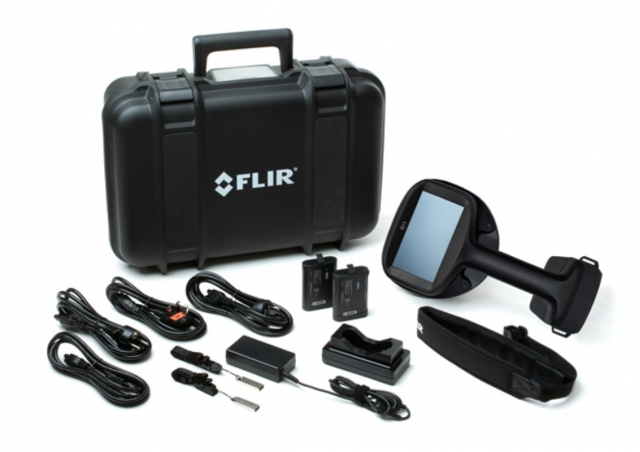

FLIR SI2-LD ACOUSTIC CAMERA FOR AIR LEAK DETECTIONS AND MECANIC FAULTS BEARING

• Detects, locates, and measures compressed air and gas leaks;
• including bearing fault detection, from up to 200 m (656 ft) away
• Built-in measurement and cost analysis for industrial gases including ammonia, hydrogen, CO2, methane, helium, and argon
• One-handed operation with automatic tuning, 8x zoom, and a 12 MP digital camera
• Mechanical fault mode, automatic selection, and optimization of filters simplifies finding critical mechanical issues, such as bearing
• faults

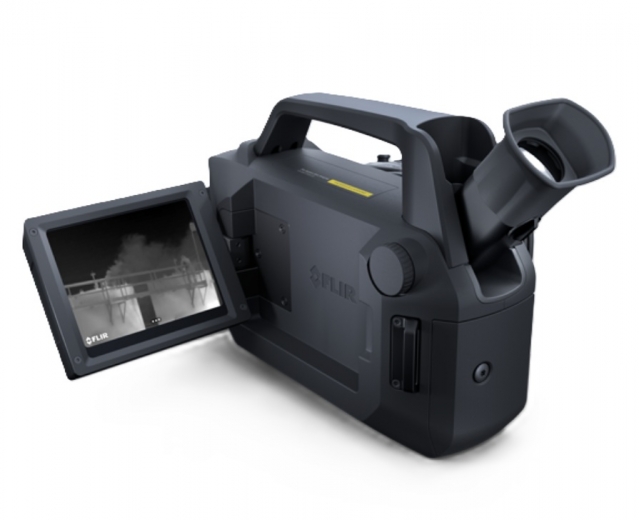

FLIR GX320 G620 GX620 OPTICAL IMAGING INSPECTION CAMERA FOR HIDROCARONS GAS EMISSINO METHANE VOC PETROL

• The FLIR Gx320, G620, and Gx620 are innovative Optical Gas Imaging (OGI) cameras
• designed to detect hydrocarbons, methane (CH₄), and other Volatile Organic Compound (VOC) emissions from multiple stages of the oil and gas supply chain, as well as other industrial markets

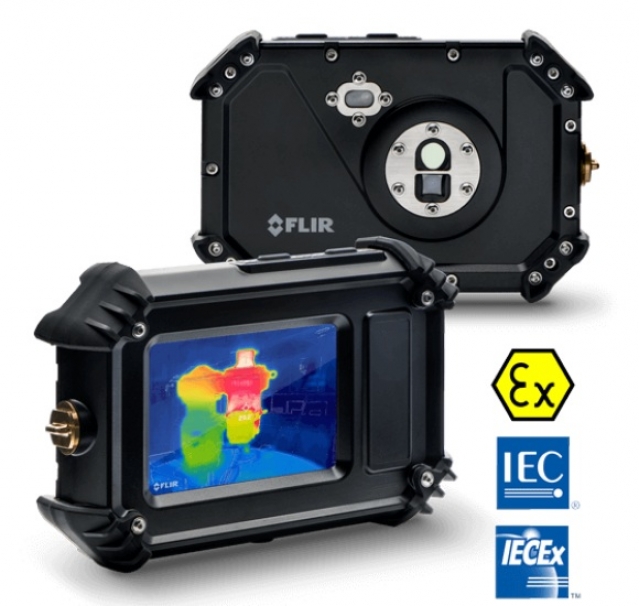

FLIR CX5 COMPACT INFRARED CAMERA WITH ATEX EXPLOSION PROOF FOR HAZARDOUS LOCATION

• Flir C5 features + ATEX housing
• 160 × 120, max temp. 400°C (752°F)
• 1-Touch Level/Span adjustable contrast



FLIR I65 INFRARED THERMIC CAMERA WITH APP AND LTE

• App-Enabled Thermal Imaging Camera with LTE
• 480 × 640 thermal resolution
• <40 mK NETD

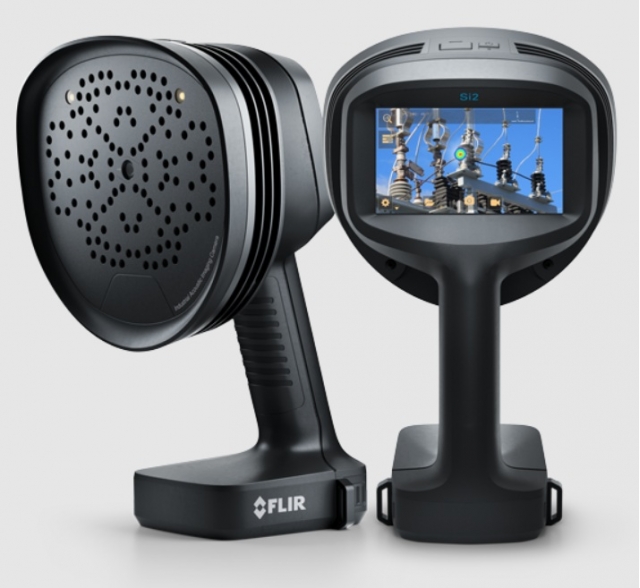

FLIR SI2-PD ACOUSTIC CAMERA FOR PARTIAL DISCHARGE DETECTION

• Detectează, localizează, clasifică și evaluează defectele de descărcare parțială (PD) de la până la 200 m (656 ft) distanță
• Identifică PD de 30 de ori mai mici ca niciodată
• Evaluarea severității problemelor PD, bazată pe cameră și pe software, și clasificarea tipului de PD oferă cel mai bun suport decizional din clasa sa
• Operare cu o singură mână cu reglare automată, zoom 8x, o cameră digitală de 12 MP și clasificare IP54

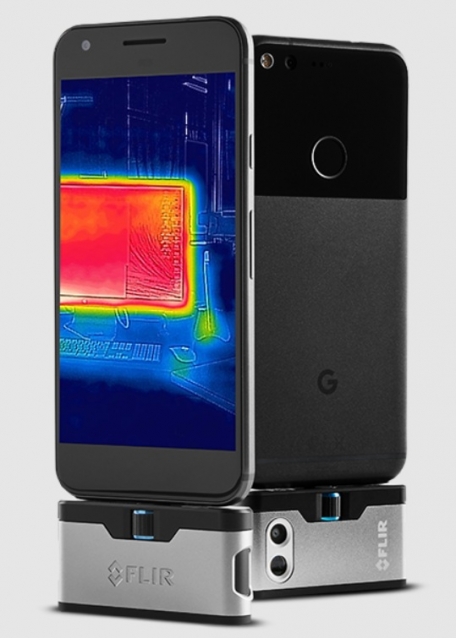

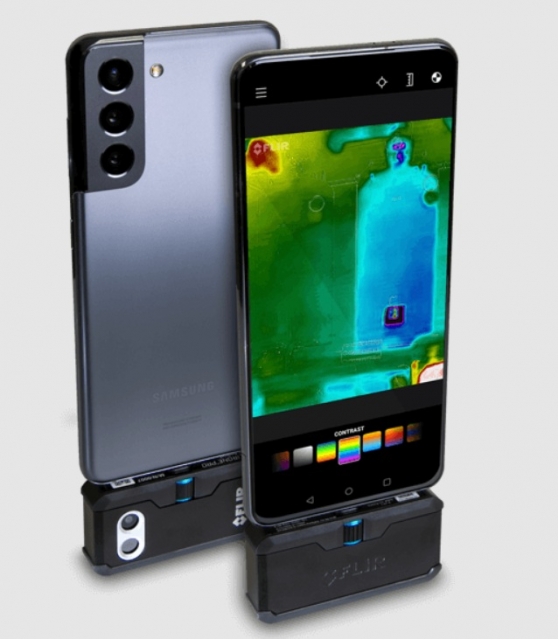

FLIR ONE PRO THERMAL CAMERA FOR SMARTPHONE

• 160 × 120 native resolution, 480 × 360 super resolution
• Measure temperatures up to 400°C (752°F)
• Flir OneFit adjustable height connector

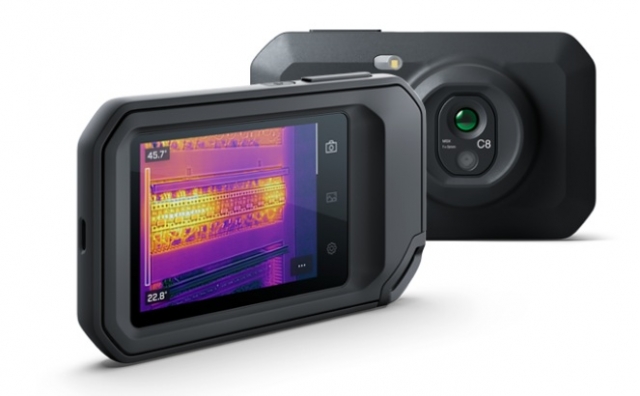

FLIR C8 COMPACT INFRARED CAMERA

• 320 × 240 thermal resolution
• Measures temperatures up to 450°C (842°F)
• 1-Touch Level/Span adjustable contrast

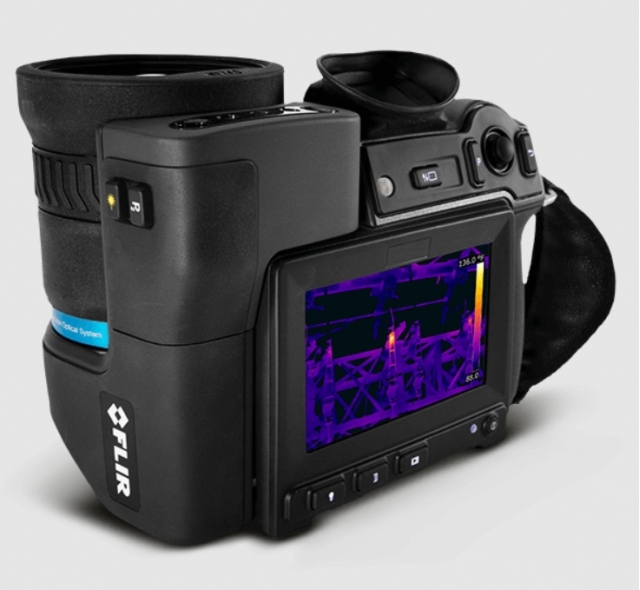

FLIR T1020 HD THERMAL INFRARED CAMERA 1024X768
