Flir M-Series Thermal Camera for Maritime Navigation Applications
OBSOLET PRODUCT ( * OUT OF USE )

Description

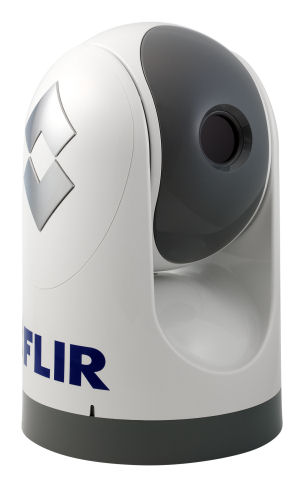

FLIR M-Series

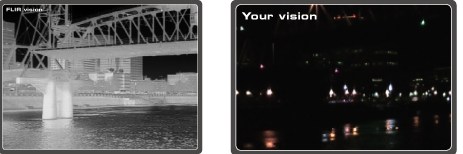

M-Series Premium Multi-Sensor systems combining a thermal imaging and a low light camera The M-Series combines a thermal imaging camera with a low light camera. It provides crisp, clear thermal imagery in total darkness and light fog or smoke. Packaged in a small, ultra-compact gimbal it is designed for the most demanding maritime applications. The FLIR M-Series  is a perfect tool for night time navigation, shipboard security, man overboard situations, anti-piracy and many other applications. The FLIR M-Series is the standard for maritime thermal imaging systems against which all others are compared.

Thermal imaging camera and ultra-low light camera
The M-Series is equipped with both a thermal imaging camera and a low light camera.


Easy-to-use Pan/Tilt system
The M-Series come standard with a remote Joystick Control Unit (JCU) to operate the Pan/Tilt. Additional JCUs, which can be used to control the M-Series from different locations on board of a vessel, are optionally available. The JCU is the primary method of control for the M-Series camera. It can be used to move the camera (pan or tilt), electronically zoom the camera in and out, switch between the thermal imaging and low light camera, adjust the image quality, and access the on-screen menus.

The M-Series control panel is fully sealed for use in a maritime environment. Just like the camera itself it meets IP66 standards. The control knob provides precise proportional speed control. Use it to have the M-Series look in the exact direction you want. The JCU Puck functions like a joystick - it can be moved left or right, or fore and aft, and it can be rotated in either direction. It can also be pressed down (like a mouse click) or pulled up. It is used to move the Pan/Tilt position of the camera and to navigate through the on-screen menus.

FLIR M-Series

 M-Series systems use cutting-edge Ethernet connectivity for easy installation, control, and interface with other on-board electronics. The rugged, waterproof gimbal enclosure provides a continuous 360° pan and +/-90° tilt field of regard for horizon-to-horizon visibility.

M-Series thermal night vision systems are available with a variety of resolution and performance options:

       Their thermal night vision cameras come in either 320 × 240 standard resolution, or 640 × 480 high-resolution format; higher resolution provides improved image detail and range performance.

       All M-Series thermal cameras come with a 2× e-zoom function that lets you see farther at night; the high-resolution option provides an additional 4× e-zoom for even greater reach.

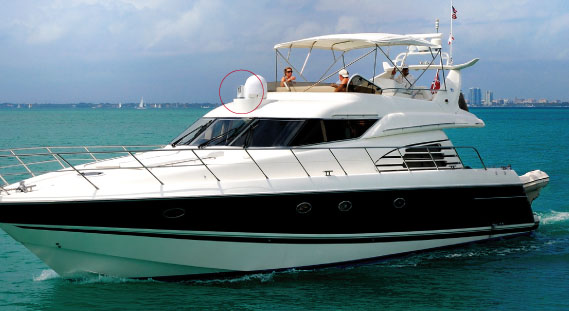

       Installers can mount all M-Series gimbals in either ball-up or ball-down orientation.

       The dual-payload M-Series incorporates an extreme lowlight micro-lux TV camera for improved visibility during twilight hours, and when operating in areas with some ambient light like intracoastal waterways and harbor entrances.

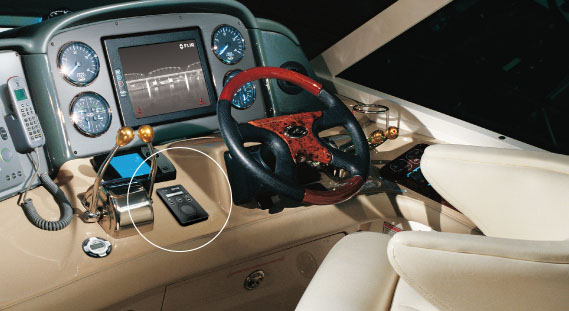

Joystick Control Unit
The ergonomic M-Series controller provides ready access to all critical system functions and smooth, effortless control, even in rough seas.

       Heated LCD Screen - Provides instant display of system status.

       User-programmable "hot key" - Lets operators have instant access to commonly-used functions.

       Home - A programmable feature that lets operators define a Home position as a reference they can use when navigating for long periods.

       Color - Different display settings let the operator choose between two black and white or three color display schemes that are easy on the eyes and help operators see better.

       Scene - Provides a variety of pre-set gain and level adjustments so that operators can get the best image quality possible throughout a wide range of conditions.

       Joystick - The sealed 8-way control knob provides precise control even in rough seas.

       Ethernet connectivity - Lets you install multiple control stations around your vessel so you can control M-Series from anywhere you want on board.

FLIR M-Series

Thermal Imaging Specifications	M-625L	M-625XP	M-324L	M-324XP
Sensor Type	640 × 480 VOx Microbolometer	640 × 480 VOx Microbolometer	320 × 240 VOx Microbolometer	320 × 240 VOx Microbolometer
FOV	25° × 20° (NTSC)	25° × 20° (NTSC)	24° × 19° (NTSC)	24° × 19° (NTSC)
Focal Length	25 mm	25 mm	19 mm	19 mm
E-Zoom	2× & 4×	2× & 4×	2×	2×
Image Processing	FLIR DDE	FLIR DDE	FLIR DDE	FLIR DDE
Daylight Imaging Specifications
Detector Type	1/2" Interline Transfer Lowlight CCD	N/A	1/2" Interline Transfer Lowlight CCD	N/A
Lines of Resolution	768 (H) × 494 (V)	N/A	768 (H) × 494 (V)	N/A
Minimum Illumination	100 µlx (@ f/1.4)	N/A	100 µlx (@ f/1.4)	N/A
FOV	Matched to IR	N/A	Matched to IR	N/A
System Specifications
Size	178 mm dia. × 284 mm ht.
Weight	~ 9 lb
Pan/Tilt Coverage	360° Continuous Pan, +/-90° Tilt
Video Output	NTSC or PAL
Connector Types	BNC with BNC-to-RCA adapter included for video out
Power Requirements	12 VDC to 24 VDC (-10%/+30%)
Power Consumption	25 W nominal; 50 W max
Environmental
Operating temperature range	-25°C to +55°C
Storage temperature range	-40°C to +85°C
Automatic Window defrost	Standard
Sand/dust	Mil-Std-810E
Water Ingress	IPx6
Shock	15 g vertical, 9 g horizontal
Vibration	IEC 60945; MIL-STD-810E
Lightening Protection	Standard
Salt Mist	IEC60945
Wind	100 knot (115.2 mph)
EMI	IEC 60945
Range Performance
Standard accessories Standard Package Camera head with 50 cm pigtails for power, analog video, and Ethernet; Joystick Control Unit; Operator Manual Warranty 2 Year Accessories Dual Station JCU; Low Smoke, Zero Halogen Ethernet Cables; Standard cat 5e Ethernet cables; Top-down mounting riser     More products FLIR FLIR E6 INFRARED THERMAL CAMERA • FLIR E6 160 x 120 pixels • Display: 3" color LCD • On-board 640 x 480 Digital Camera • Easy-to-use, weighs only 1.2lbs • 2% accuracy • File format: Radiometric jpg   FLIR SI1-LD ACOUSTIC CAMERA FOR COMPRESSED AIR LEAK DETECTION • Automatically detects compressed air and vacuum leaks from up to 130 meters (427 feet) away • Noise suppression technology ensures uninterrupted use in noisy industrial environments, improving accuracy and usability.   FLIR ONE PRO THERMAL CAMERA FOR SMARTPHONE • 160 × 120 native resolution, 480 × 360 super resolution • Measure temperatures up to 400°C (752°F) • Flir OneFit adjustable height connector   FLIR E8 INFRARED THERMAL CAMERA • FLIR E8 320 x 240 pixels • Display: 3" color LCD • On-board 640 x 480 Digital Camera • Easy-to-use, weighs only 1.2lbs • 2% accuracy • File format: Radiometric jpg   FLIR TG298 INFRARED CAMERA • 160 × 120 thermal resolution • -25°C to 1080°C (-13°F to 1976°F) • Interpret images with MSX®, which enhances thermal images with crisp visual details   FLIR SI2-LD ACOUSTIC CAMERA FOR AIR LEAK DETECTIONS AND MECANIC FAULTS BEARING • Detects, locates, and measures compressed air and gas leaks; • including bearing fault detection, from up to 200 m (656 ft) away • Built-in measurement and cost analysis for industrial gases including ammonia, hydrogen, CO2, methane, helium, and argon • One-handed operation with automatic tuning, 8x zoom, and a 12 MP digital camera • Mechanical fault mode, automatic selection, and optimization of filters simplifies finding critical mechanical issues, such as bearing • faults   FLIR SI2-PRO ACOUSTIC CAMERA FOR PARTIAL DISCHARGE DETECTION, PRESSURIZED LEAK DETECTION AND MECHANICAL FAULT DETECTION • Mechanical fault detection for early identification of bearing problems, preventing costly downtime • Quantify leak rate and cost of industrial gas and compressed air leaks, to prioritize repair and calculate savings • On-camera and in-software severity assessment and type classification of partial discharge (PD) issues • Automatic frequency tuning, 8x zoom, 12 MP digital camera, • IP54 rating, and a QR code reader   FLIR E4 INFRARED THERMAL CAMERA • FLIR E4 80 x 60 pixels • Display: 3" color LCD • On-board 640 x 480 Digital Camera • Easy-to-use, weighs only 1.2lbs • 2% accuracy • File format: Radiometric jpg   FLIR T640 T620 INFRARED THERMOVISION CAMERA 640 X 480 PIXELS • 640x480 pixel resolution • Large bright 4.3 inch LCD screen • High quality visual camera • MPEG-4 video • FLIR Thermal Fusion • Touch screen • Wifi   FLIR ONE INFRARED THERMOVISION CAMERA FOR MOBILE PORTABLE TELEPHONE ANDROID IPHONE • 80 × 60 thermal resolution • 240 × 180 super resolution • Measure temperatures up to 120°C (248°F) • Flir OneFit adjustable height connector   Contact • GDPR data • Terms of use • Cookies policy • Privacy policy • Delivery and Payment • How to order? Copyright © DISTEK TEST 2010 - 2026 ⇧ Top
