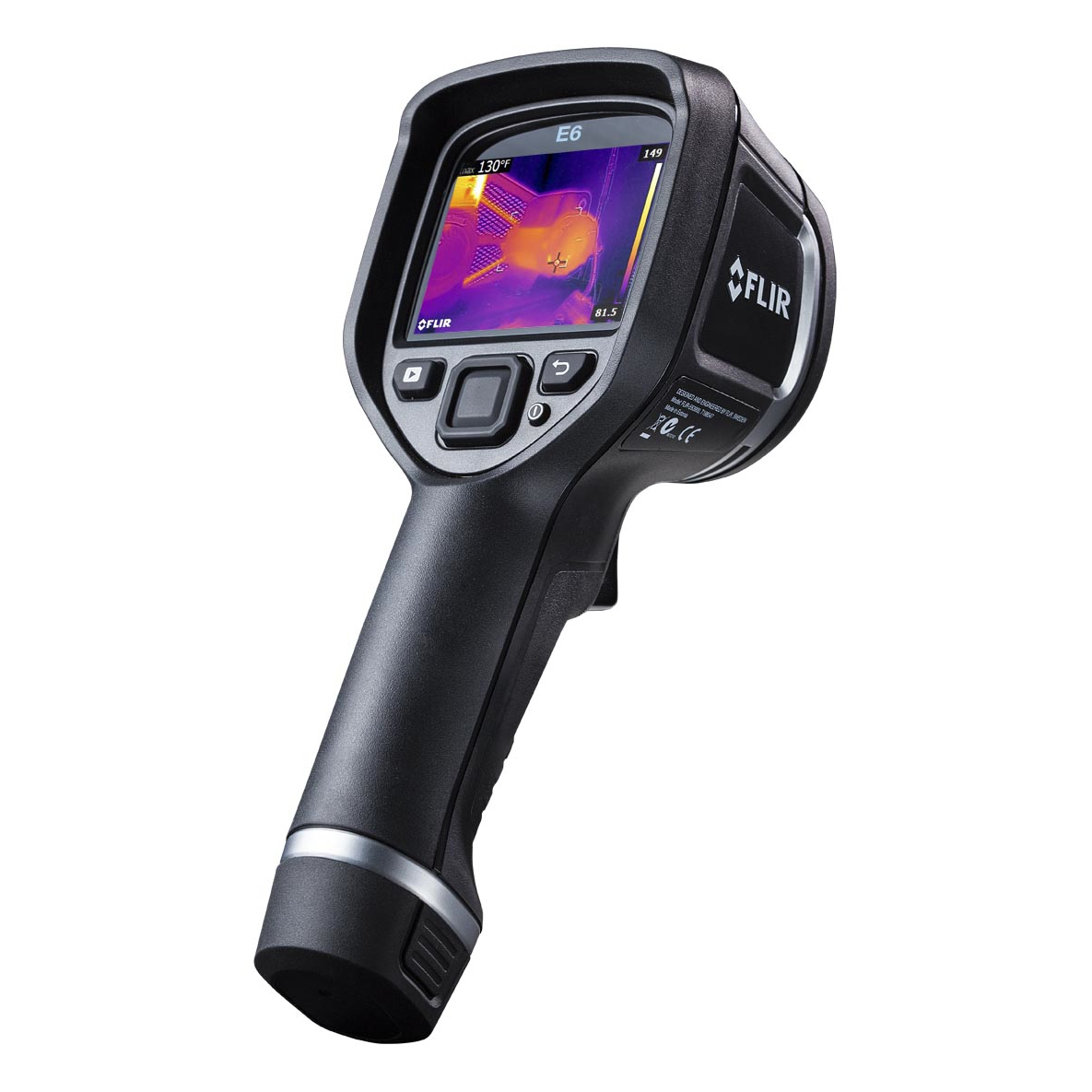

Flir E6 Infrared Thermal Camera
OBSOLET PRODUCT ( * OUT OF USE )

Code: Flir E6



Datasheet PDF, 0.51 Mb

Description

FLIR E4  80 x 60 pixels

FLIR E5  120 x 90 pixels

FLIR E6 160 x 120 pixels

FLIR E8  320 x 240 pixels



  • Display: 3" color LCD
  • On-board 640 x 480 Digital Camera
  • Easy-to-use, weighs only 1.2lbs
  • 2% accuracy
  • File format: Radiometric jpg
  • Swappable Li-ion Battery with 4 hour life
  • Spot Measurement mode
  • Simultaneous storage of IR/Visual/MSX images
  • Picture in Picture image (E5, E6 and E8)
  • Area Box Measurement mode (E5, E6 and E8)



FLIR E4

FLIR E5

FLIR E6

FLIR E8

Thermal image quality: 80x60 pixels

Thermal image quality: 120x90 pixels

Thermal image quality: 160x120 pixels

Thermal image quality: 320x240 pixels

Thermal sensitivity: 0.15°C

Thermal sensitivity: 0.10°C

Thermal sensitivity: 0.06°C

Thermal sensitivity: 0.06°C

IR image, visual image, MSX®, thumbnail gallery

IR image, visual image, MSX®, thumbnail gallery

IR image, visual image, MSX®, picture in picture, thumbnail gallery

IR image, visual image, MSX®, picture in picture, thumbnail gallery

Center spot

Center spot, area with max./min.

Spotmeter, area with max./min., color alarm; blue below / red above set temperature

Spotmeter, area with max./min., color alarm; blue below / red above set temperature



Easy to use, point-and-shoot thermal imaging cameras



FLIR Ex-Series cameras are point-and-shoot thermal imaging cameras that give you access to a new dimension in inspection capability. A FLIR Ex-Series camera is an affordable replacement for a spot pyrometer. It provides a thermal image with temperature information on every pixel. The combined image storage of the new MSX®, thermal and visual formats make the cameras incomparably easy to use.





Outstanding ease-of-use
The cameras are extremely easy to understand and operate, designed for entry-level users. The cameras are intuitive and come with a full manual.



Fully automatic
FLIR Ex-Series produce instant, point-and-shoot JPEG thermal imagery with all required temperature data included.



Focus free
The fixed focus-free lens makes using the FLIR Ex-Series a snap.



Compact and lightweight
FLIR Ex-Series weighs only 575g, and is easy to store in a belt pouch.

Visual camera
Visible light camera makes observing and inspecting faster and easier.



Reporting and analysis software included
FLIR Tools software is available for free download for all Ex-Series users.



Measure temperatures
Measures temperatures up to +250°C and detects temperature differences as small as 0.06°C (FLIR E6 / FLIR E8).



Measurement functions
Spotmeter, area with max./min., color alarm; blue below / red above set temperature.*

Picture-in-Picture (PiP)
With the PiP function it is easy to locate areas of interest.*



Multi Spectral Dynamic Imaging (MSX®)
The innovative MSX® feature produces an image more rich in every detail than ever before.



Multi Spectral Image storage
Combined image storage including MSX®, thermal, PiP and visual.



Standard accessories

  • FLIR thermal imaging camera
  • hard transport case
  • FLIR Tools™ download card
  • user documentation CD-ROM
  • printed documentation
  • battery (FLIR E8 2X)
  • power supply/charger with EU, UK, US and Australian plugs
  • USB cable
  • battery charger (FLIR E8 only)
