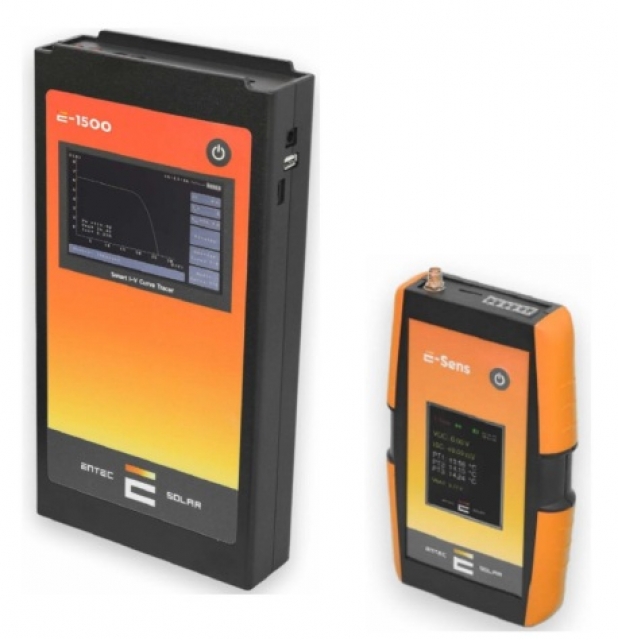

The smallest, lightest, and fastest capacitive I-V tracer up to 1,500V on the market. In 2021, it was the first tracer in the world to incorporate up to two albedo reference cells for measuring bifacial modules. With an input range of 1,500V and 35A, it can measure any combination of photovoltaic modules and strings.
Drastically reduce the time spent on O&M, commissioning, and quality control with Entec Solar’s E-1500 I-V curve tracer, all while maintaining excellent measurement accuracy and robustness for measuring very high-efficiency modules.
The fastest I-V curve tracer on the market. It can measure up to 200 curves per hour.
Unmatched accuracy of 0.5% at peak power and up to 3% in the final result under standard measurement conditions (EMC).
4-point measurement for improved accuracy and to avoid errors in voltage drop in the wiring.
Display and control via color touch screen or mobile phone app.

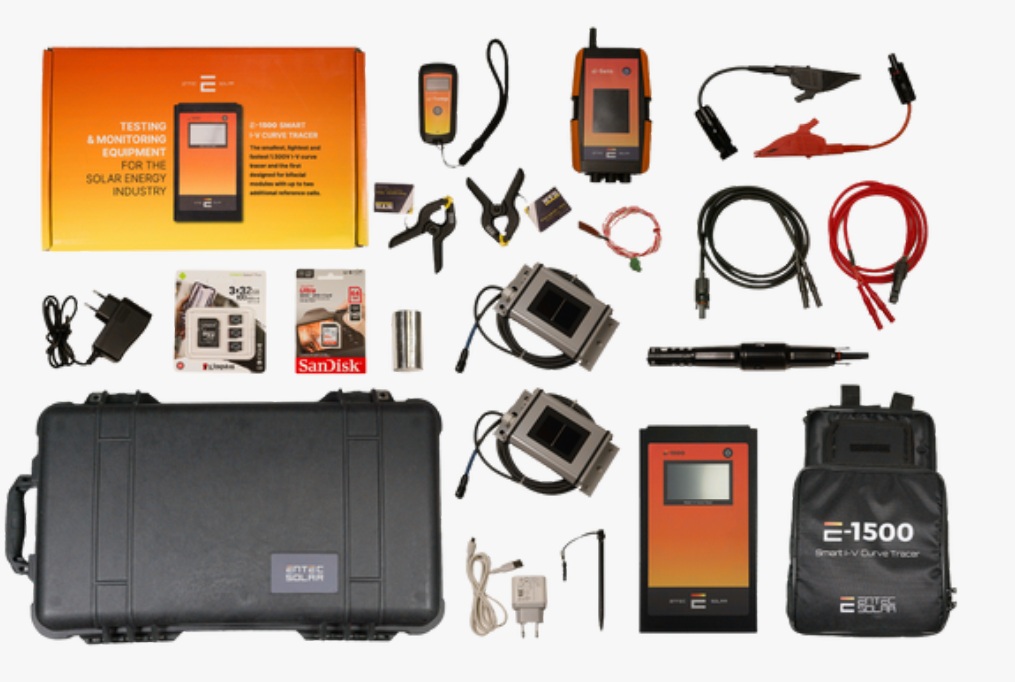

Records measurement data and the barcode of the module under test in a single file using the barcode reader accessory.
Compact and lightweight equipment for easy handling.

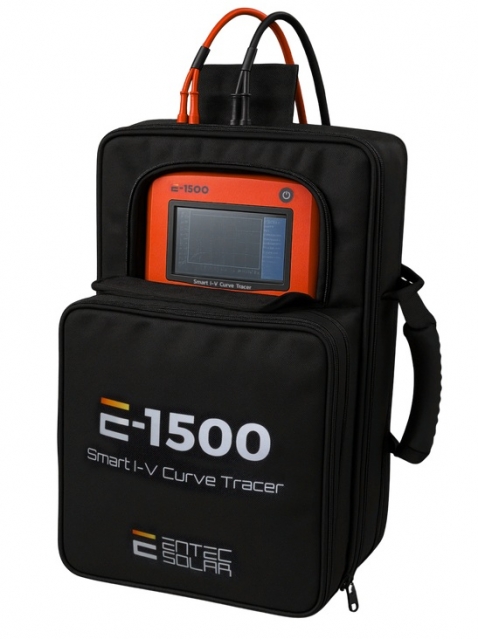

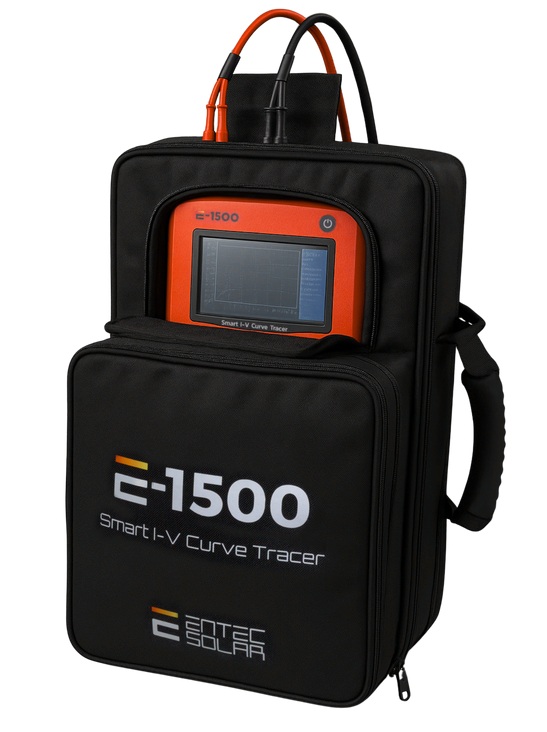

Optional carrying backpack and automatic measurement to keep your hands free during measurements and increase your work rate.
Versatile and configurable measurement of radiation and cell temperature conditions using E-Sens, E-Temp, and Pt1000.
Automatic extrapolation of curves to CEM using the E-Sens, equipped with wireless communication up to 200 meters, in accordance with the IEC-60891 standard.
Measures I-V curves of modules or strings up to 1500V and 35A in accordance with the IEC-61829 standard.
The only one in the world that allows temperature measurement using an infrared thermometer (E-Temp).
FeatureValue
Input voltage range0-1500 V
Input current range0.1 – 20 A (up to 35 A optional)
Accuracy±0.3% ± 2 digits (V & I) ± 0.5% ± 0.1 W (P)
Resolution22.5 mV
0.5 mA
Measurement time30-200 ms (typical)
Full cycle duration≤ 4 sg
I-V curve points200
Operating temperature-10 to +65ºC
Battery life10 hours continuous use (over 2000 I-V curves)
• The smallest, lightest, and fastest capacitive I-V tracer up to 1,500V/ 35A on the market
• The fastest I-V curve tracer on the market. It can measure up to 200 curves per hour.
• Unmatched accuracy of 0.5% at peak power and up to 3% in the final result under standard measurement conditions (EMC).
• 4-point measurement for improved accuracy and to avoid errors in voltage drop in the wiring.
Datasheet
PDF, 2.12 Mb
