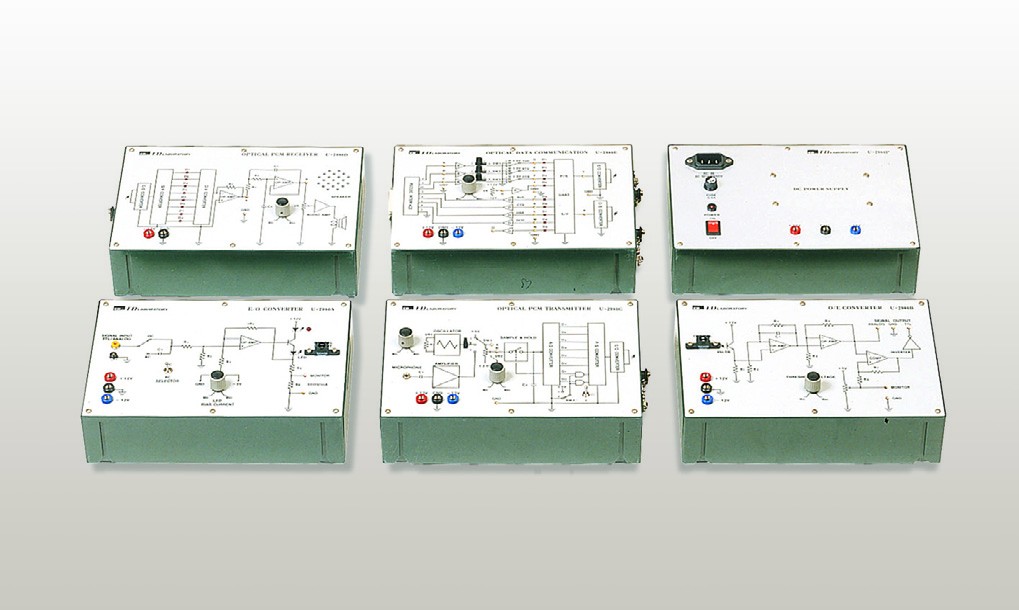

Optical Communication Trainer ED-2980

Code: ED-2980




Datasheet PDF, 0.52 Mb

Description

EXPERIMENTS

  • E/O Converter Related Experiments :
    • Input and output characteristics of an LED
    • Input and output characteristics of an E/O Converter
    • Intensity modulation principles
    • Frequency characteristics of an E/O Converter
  • O/E Converter Related Experiments :
    • Input and output characteristics of an O/E Converter
    • Overall frequency characteristics of an E/O and O/E combined
    • Maximum transmission rate characteristics of an O/E Converter
  • Optical PCM Communications :
    • A/D Converter experiments
    • PCM communications experiments using an Oscillator
    • Voice transmission experiments
  • Optical Data Communications :
    • Input and output characteristics of RS-232C interface
    • Parallel/Serial and Serial/Parallel conversion experiments
    • Optical communications using personal computer

Features:

  • E/O and O/E conversion and characteristics
  • Optical PCM communication(trasmission&reception)
  • Optical Data communications using personal computer
  • DC power supply, a roll of fiber cable and the microphone included as peripherals
