Flexible Manufacturing System ED-FMS1

Code: ED-FMS1




Datasheet PDF, 1.07 Mb

Description

SYSTEM CONFIGURATION

  • Supply Process
    • Pallet supplier (size of pallet : 200(W) x 10(H) x 200(D)mm
    • PTP robot(place to place robot)
    • Material supplier and magazine
  • Inspection Process
    • Dimension measuring meter(measuring the thickness)
    • Load’g/unload’g rotative cylinder
    • Small conveyor
    • Loadless cylinder(load’s device) and gripper
    • 2nd material supplier and magazine
  • Processing Process
    • 180° rotative arm cylinder
    • Gripping device
    • Drilling processor
    • Device of eliminating the chip
    • Tap processor
    • Transmitting slide
    • Classifying and assembling process
    • 180° rotative arm cylinder
    • 4 dividing indexing table
    • Separator
    • Rotative cylinder, parts supplier and magazine(3set)
    • Screw Fastener and Screw Supplier
  • Storing Process
    • Rotative cylinder(Vacuum type)
    • Automatic warehouse loader
    • Storing cell(3 x 4)
    • Conveyor for releasing the finished products
    • Main Conveyor


More products ED

BASIC ELECTRICITY & ELECTRONICS TRAINER ED-2000E

• 14 experimental boards with mounting rack and storage cabinet
• Analysis of DC and AC circuits
• Electromagnetics experiments



DC SERVO TRAINER ED-4400B

• Analog feedback loop & DC servo system
• Modularized by the function of servo circuits
• Overload protection for the servo amp's and power supply's output



MINI MPS (MODULAR PRODUCTION SYSTEM) ED-9160

• Organization of various control elements in complexity for applied technology
• Total of 6 processes comprising supply, Sensor, Stopper, Absorption & Transfer, Conveyor and Loading
• Built-in control elements covering mechanics, electricity, and electronics
• Control circuit for simple and high speed data transmission in the USB type


DC MOTOR/AC GENERATOR MG-5214

• DC motor’s load characteristics
• DC motor’s loss and efficiency
• Alteration of the motor’s rotative directions
• Motor’s speed and torque

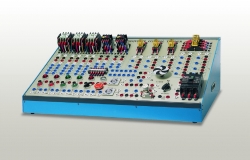

SEQUENCE CONTROL TRAINER ED-4010
