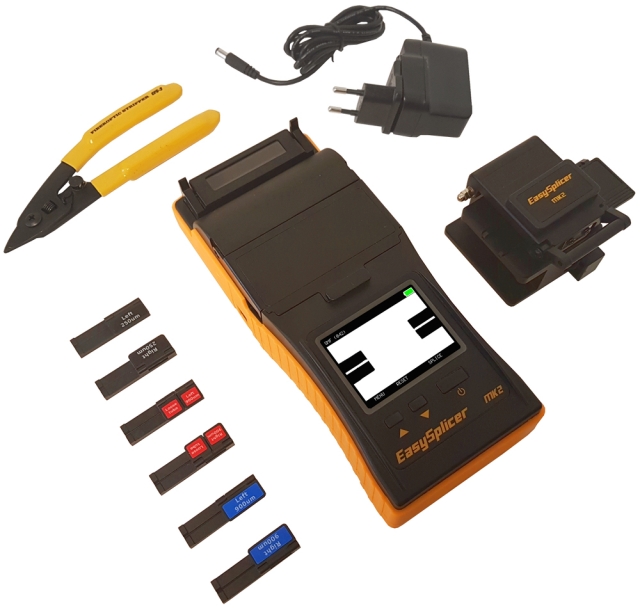

EasySplicer Optical Fiber Fusion Splicer complete KIT SBFS1 EazySplicer
OBSOLET PRODUCT ( * OUT OF USE )

The EasySplicer is a swedish made Fusion Splicer, designed for working

daily with fiber optic installations.

Its small and handy to bring along to any kind of work. The

construction is made very rugged and even if splicing should take

place under good conditions (indoors) it is still designed to be

used out in the field.

The design of the EasySplicer differs a bit from other Fusion Splicers

as it is made with focus on the installer/user. Many of the Splicers

on the market are, even if very competent, difficult to use and

require a lot education before they can be operated.

The EasySplicer is very easy to learn how to use. It doesn�t take

more than an hour for anyone to learn how to use the Splicer

and start working with it.

The EasySplicer operates with three buttons only and mostly the user

only have to use the main button to perform the splicing.

Still, the precision of the unit is extremely high. It makes typical

splicing with a loss of 0,03 dB (Singlemode). After splicing it pull tests

the splice and makes a loss estimation of the splice were it also tells if

something is wrong. Such information is also provided before splicing

(like; Bad fiber and Dirty fiber ).

The battery-pack inside the unit is small but very powerful. The

unit can perform some 60 splices before it needs to be recharged.

Extra battery-packs can also be sold separately (and easily be

exchanged in the unit by the installer).

The EasySplicer is constantly calibrating itself for environment changes

(like; moisture). This can also be done manually, for ex. when

starting the work of the day. Calibration is very easily performed

(within seconds) and makes sure that the splicing is made perfect.

The EasySplicer is using the V-grove method for splicing (same as

Ribbon-splicers are using) which has made it possible to keep the

size small of the unit. It also makes this unit extremely costeffective.

The EasySplicer is one of the most inexpensive splicers on

the market, yet with a performance of 4-5 times more expensive

units.
