* Professional instrument for measuring loss and finding faults in Fiber networks
* OTDR (Optical Time-Domain Reflectometer)
* Measure distance from 0 to 60 km, in resolution of 1m
* Measure dB loss with a resolution of 0.01 dB
* Auto mode for super easy operation (and Expert mode for Experts).
* 4.3 inch, multi color LED, touch screen
* Comes in sturdy Carrying-case with launch cable and 4x adapter cables.
* VFL, OPM and OLS, two wavelength, 1310nm and 1550nm
* RJ45 Cable tracker and distance readout (up to 300m)
* Affordable and extremely useful for the fiber network installer !

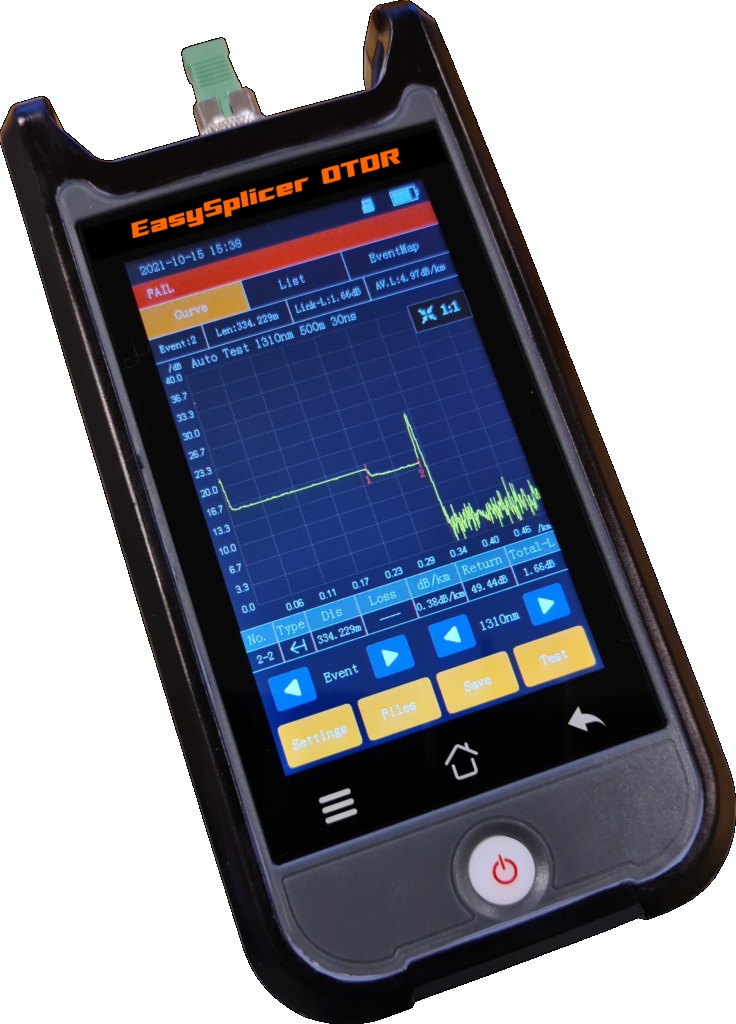

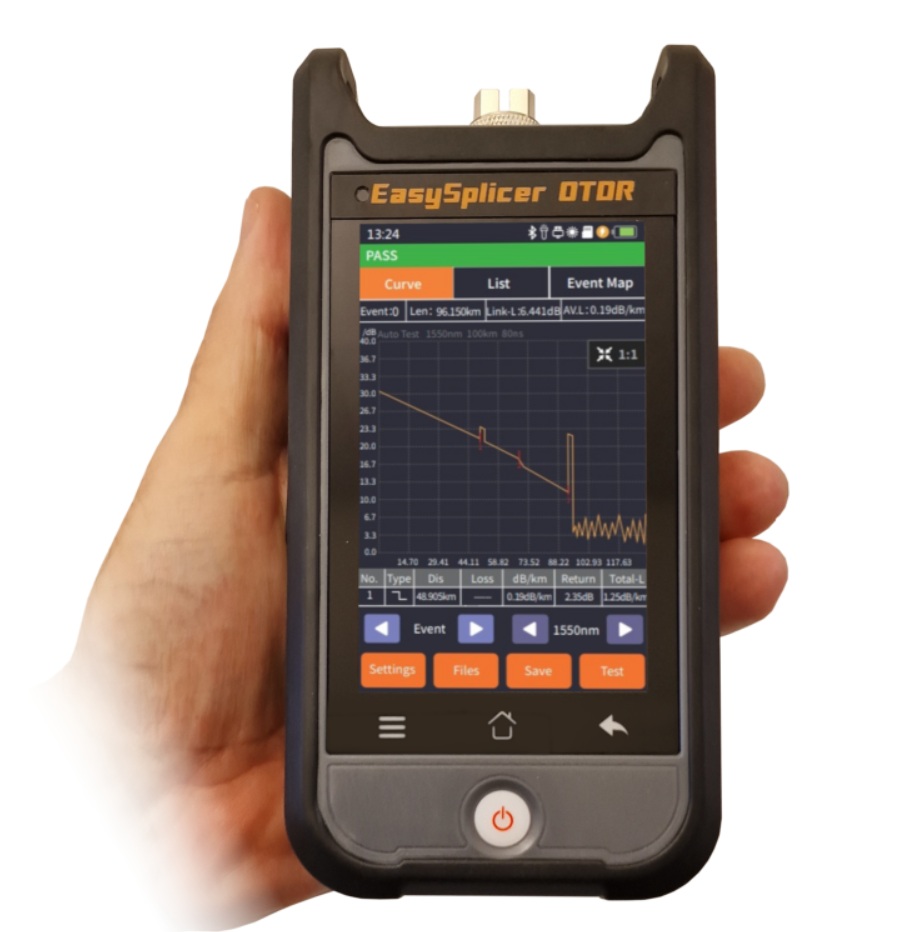

EasySplicer OTDR is designed with the basic fiber network installer in mind. It is very easy to use with an Auto function which can be started over and over again. This function generate a signal sweep in the fiber cable measuring loss and detecting connected devices and faults (like bends and cracks). The result is displayed on the 4.3” multicolor touch display. All measured values are stored internally or on Micro SD card.
The instrument is very easily operated even for the inexperienced user. With a simple press on the touch screen the unit performs a "Auto mode measurement” calculating length of cable, loss (in dB), finds connected devices and faults (if any), along the way (up to 100km). There is also an "Expert mode” in which the user can setup the network parameters more in detail. But apart from being an OTDR the instrument also got integrated:
* OLS Optical Lights Source, transmitting 1310nm or 1550nm.
* OPM Optical Power Meter for measuring loss (dB) in the range of 800nm - 1700nm.
* VFL Visual Fault Locator. Easy visual way of finding faults/loss in a fiber cable.
* RJ45 Cable tracker. Tracker device in conjunction with the instrument will assist in detecting leads, finding errors and check length in standard RJ45 cable (Cat5, Cat6).

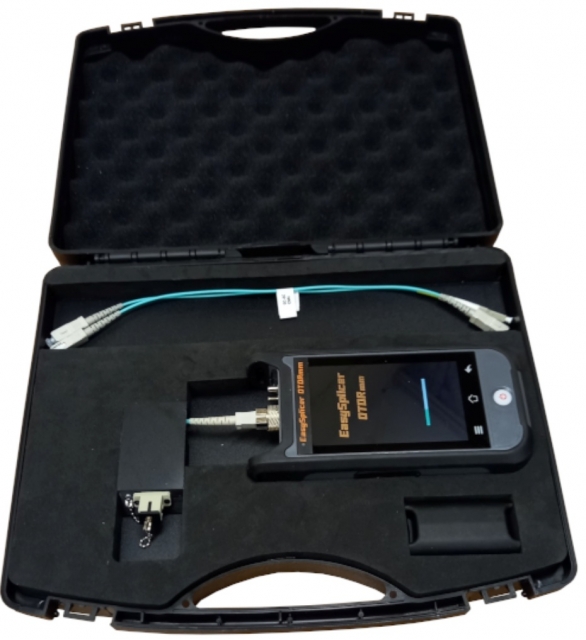

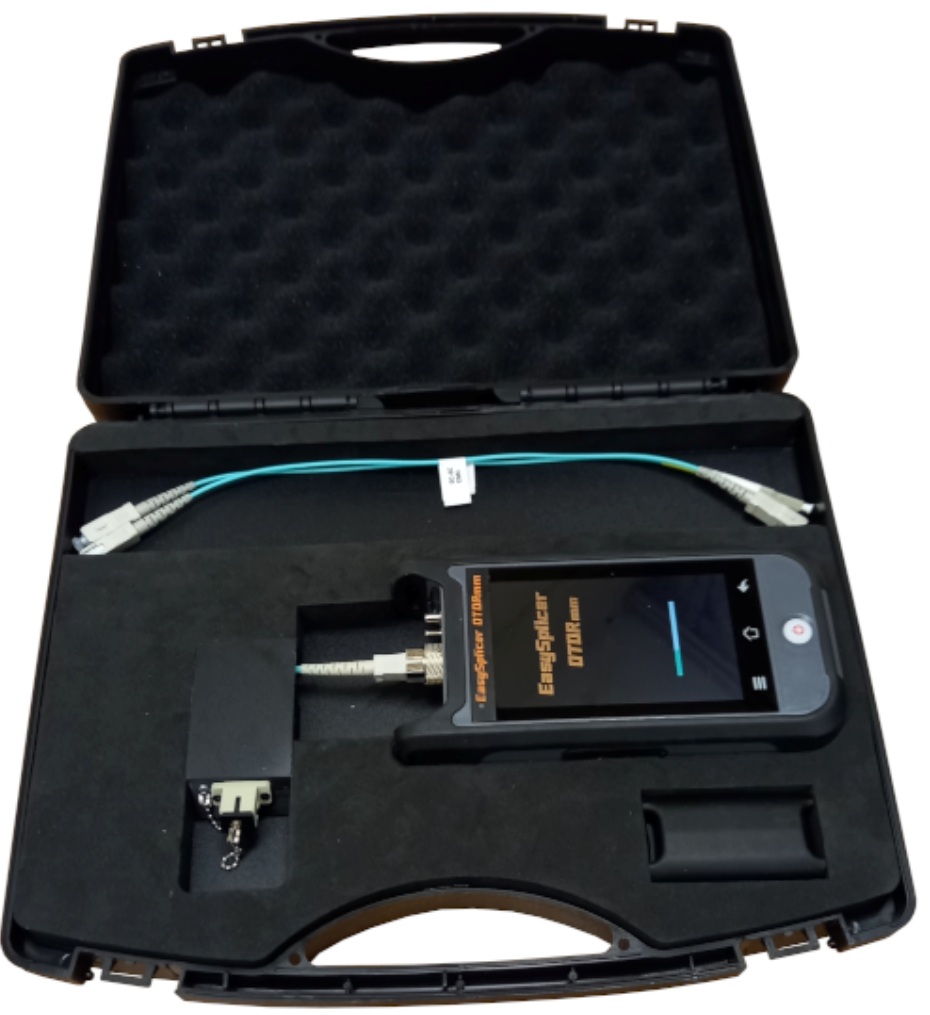

Small and compact size. The instrument, adaptercables and launchcable (500m) fits in the handy and sturdy carrying-case. The EasySplicer OTDR can easily be fully operated from the carrying-case (to avoid dirt/moisture to interfere with the testing)
Technical specification
Single Mode version:
Main connection SC/APC + 500m Singlemode launch cable
Wavelength 1310nm and 1550nm
Dynamic Range 24/22dB, Event Blind Zone 2.5m (0m with launch cable)
ATT Blind Zone 8m (0m with launch cable)
Test Range: 500m/1km/2km/4km/8km/16km/32km/64km/100km

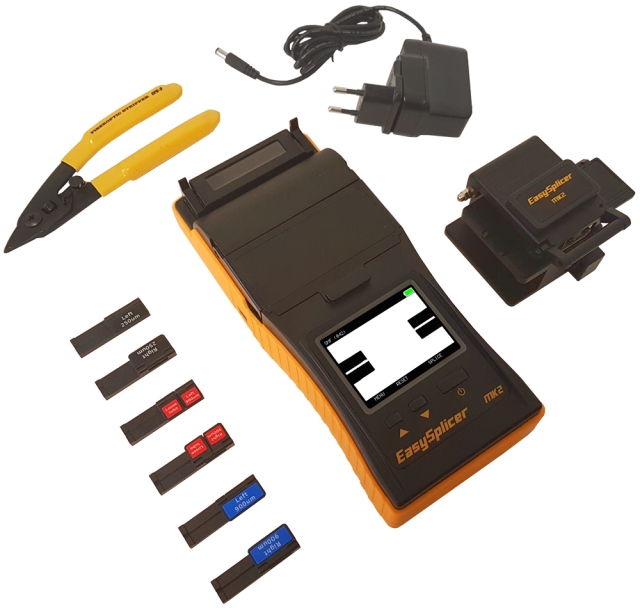

• Fusion splicing made easy and affordable with the EasySplicer mk2.
• For both Singlemode and Multimode fibers.
• Splicing time of less then 7 seconds.
• Loss estimation.
• Pull test of performed splices.
• Built in oven.
• Easy to use and to carry along.
• Perfect for the FTTH installer.
• Professional instrument for measuring loss and finding faults in Fiber networks
• OTDR (Optical Time-Domain Reflectometer)
• Measure distance from 0 to 60 km, in resolution of 1m
• Measure dB loss with a resolution of 0.01 dB
• Auto mode for super easy operation (and Expert mode for Experts).
• OLS OPM OFL integrated
EasySplicer OTDR SM
PDF, 0.59 Mb
