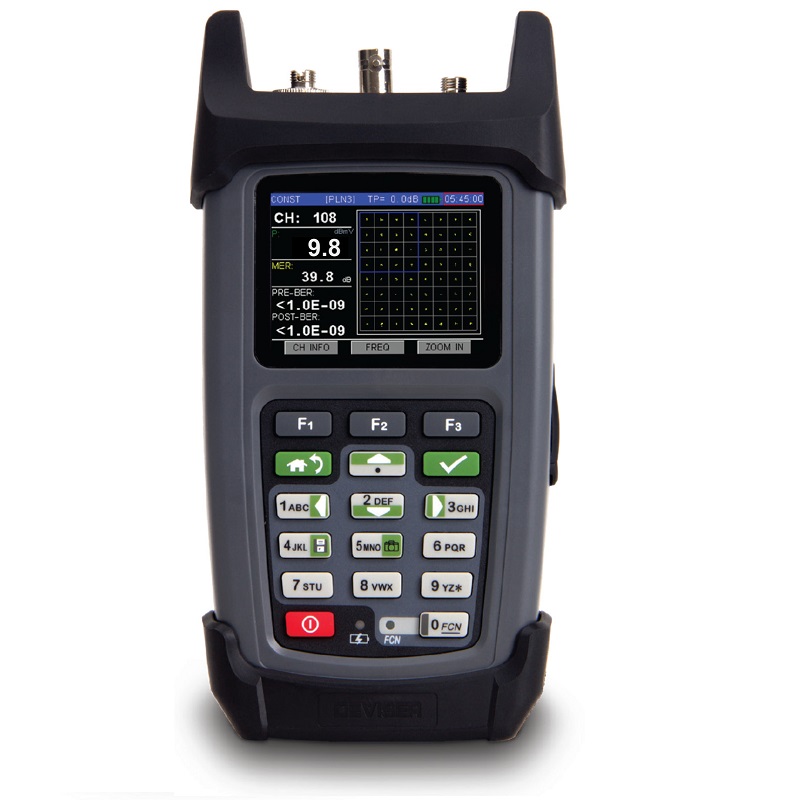

The DS2460T-ISDB is a multifunction instrument, which supports analog signals. Its ruggedized design, which includes a chassis protector, combined with icon display GUI and programmable preset pass/fail limits, provides increased efficiency and productivity for all levels of technicians. Other features, such as return path & forward spectrum scan, 12 favorite tilt frequencies, AC line voltage test, HUM and DC voltage measurements, combined with complete data logging and management software, make this unit a versatile tool for cable installations.

Features:

5MHz ~ 1220MHz simple and fast spectrum analysis
5 ~ 1052MHz (Analog TV), 44MHz ~ 1052MHz (ISDB-TB)
ISDB-TB measurement: Average Power, MER, CBER, VBER, and Constellation
Analog TV measurement: Level, V/A, HUM and C/N
Automatic channel plan generation; supports up to 20 custom channel plans
Achieve faster testing and ease data interpretation with Pass/Fail auto testing
"Toolbox" management software enables user to quickly configure the unit
Use USB Micro B 2.0 port for PC communication
Ethernet port supports Ping function
