Laser diode 635 nm
Laser class 2M
Working range with laser receiver 425 m (radius)
Accuracy
± 0.05 mm/m horizontal
± 0.1 mm/m vertical
Self-levelling range ± 5°
Dust and splash protection IP55
Rotation speed 150, 300, 600 rpm
Power supply
1 x 7.2 V (2600 mAh)
(NiMH batteries)
Operating time (max.) 15 h
Tripod connection 5/8"
Length 159 mm
Width 162 mm
Height 203 mm
Weight 2.5 kg

Standard accessories

LD400 laser receiver with bracket (F 034 069 000)
RC700 remote control (F 034 069 A00)
Laser glasses (1 608 M00 7N5)
2 magnetic targets (1 608 M00 8NB)
V-Mount (F 034 092 CN2)
1 x NiMH battery pack (1 608 M00 1N9)
Charger with EU/UK power cable (1 608 M00 2NE)
2 x 1.5 V LR6 (AA)
1 x 9 V 6LR61 Block
Hard carry case (1 608 M00 05P)

More products CST BERGER

Brand: CST berger

THEODOLITE DGT10 BOSCH CST BERGER

• Accuracy of 5 arc seconds (DGT10)
• Easy and precise angle measurement
• Large, dual-sided display with lighting
• Comprehensive range of accessories
• Robust/IP54

Brand: CST berger

TOTAL STATIONS CST305R BOSCH CST BERGER

• Accuracy of 5 arc seconds (CST305R)
• Pre-installed, high-performance software
• Large, dual-sided display
• Internal memory of 15,000 points
• Working range up to 300 m without a prism and up to 5,000 m with a triple
• prism

Brand: CST berger

HIGH-PERFORMANCE LINE LASER XLP34 - BOSH CST BERGER

• Self-levelling
• 1 horizontal laser line plus 2 vertical laser lines arranged at a 90° angle
• Downward plumb beam, upward plumb point

Brand: CST berger

TOTAL STATIONS CST302R BOSCH CST BERGER

• Accuracy of 2 arc seconds (CST302R)
• Pre-installed, high-performance software
• Large, dual-sided display
• Internal memory of 15,000 points
• Working range up to 300 m without a prism and up to 5,000 m with a triple
• prism

Brand: CST berger

HIGH-PERFORMANCE LINE LASER XLP34PKG - BOSH CST BERGER

• Self-levelling
• 1 horizontal laser line plus 2 vertical laser lines arranged at a 90° angle
• Downward plumb beam, upward plumb point

Brand: CST berger

THEODOLITE DGT2 BOSCH CST BERGER

• Accuracy of 2 arc seconds (DGT2)
• Easy and precise angle measurement
• Large, dual-sided display with lighting
• Comprehensive range of accessories
• Robust/IP54

Brand: CST berger

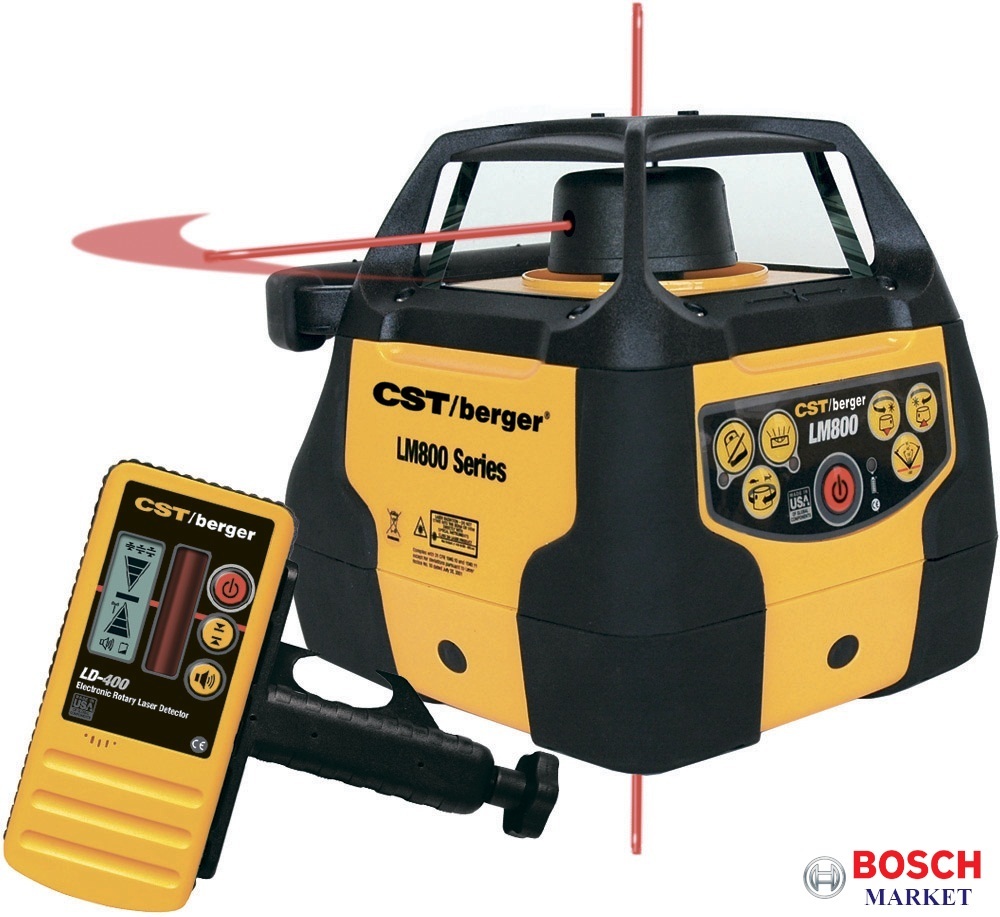

ROTATION LASERS LM800DPI - BOSH CST BERGER

• Dual-slope capable in both horizontal and vertical positions
• Exceptionally high accuracy
• Exceptionally long range

Brand: CST berger

PIPE LASER LMPL20 - BOSH CST BERGER

• Long-range remote control and large display
• Dual-slope capability of ± 10% in horizontal position using keypad and remote control
• Exceptionally high accuracy and long working range

Brand: CST berger

ROTATION LASERS ALHVG - BOSH CST BERGER

• Exceptionally high visibility due to green laser beam
• Exceptionally high accuracy, long range, robust and waterproof
• Dual-slope capable in both horizontal and vertical positions

Brand: CST berger

ROTATION LASERS ALGRD - BOSH CST BERGER

• Digital display for exact setting of grades
• Dual-grade capability of ± 10% in both horizontal and vertical positions using
• keypad and remote control
• Exceptionally high accuracy, long range, robust and waterproof
