TV Analyzer for Analogue, Digital, Terrestrial, Cable, High Definition Satellite & Mobile TV Promax US TV EXPLORER II
OBSOLET PRODUCT ( * OUT OF USE )

Code: Promax US TV EXPLORER II




Datasheet PDF, 4.53 Mb

Description

The TV EXPLORER range has changed forever the concept of the field strength meter. From now on, meters will be smaller, lighter weight and much more easy to use than in the past. Just press one key and the instrument measures and decodes the signal under test.

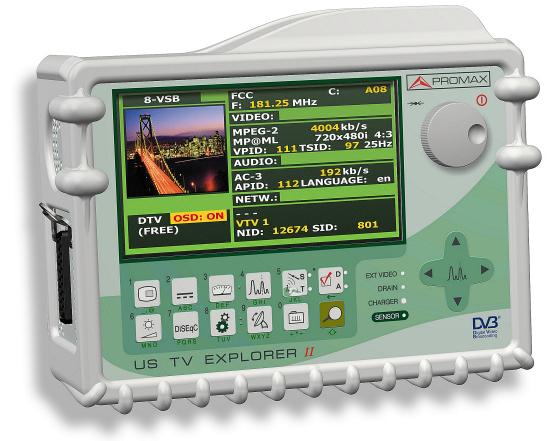

The new US TV EXPLORER II (for North America) continues with this philosophy and hits again with innovating features. At a first glance the instrument unveils an impressive 6,5" screen with 16:9 panoramic format and transflective technology.

However, US TV EXPLORER II introduces many new features. It allows measuring of High Definition satellite DVB-S2 signals. It covers Cable TV return path and 1 GHz. It can display the constellation diagram for DVB-S/S2 and QAM. Allows automatic measurements through the DATALOGGER function with a massive 1 GB internal memory.





COVERING

Terrestrial, satellite, cable (QAM annex A and annex B)

FUNCTIONS

Spectrum analyser / Measurements / Signal decoding

MEASUREMENTS
  ANALOGUE
  DIGITAL
   8VSB
   DSS QPSK
   DVB-S QPSK
   DVB-S2 8PSK
   QAM (16/32/64/128/256)

Simultaneous display of all the measurements
Level, Video/Audio, C/N
Power, C/N, Channel identification
MER, SER, VBER, Noise margin
MER, CBER, VBER, Noise margin
MER, CBER, VBER, Noise margin
MER, CBER, LBER
BER, MER, Noise margin

TUNING

By channel or frequency (IF or direct in satellite)

EXPLORER FUNCTION

Channel searching and channel tables generation

AUTO ID FUNCTION

Signal type automatic identifying

AUTO ADJUSTMENT FUNCTION

Reference level auto adjustment

CONSTELLATION DIAGRAM

DVB-S / DVB-S2 and QAM

DISPLAY

6.5" transflective LCD TFT visible under sunlight
16:9 format

UTILITIES

Automatic measurements
Measurements reports
Satellite IF test

ADVANCED FUNCTIONS

Video recording and playing
1GB internal memory
Screen capture: specrum / constellation
Internet automatic updates
USB interface (for updates and data transfer)
Cable TV return path measurements (5 MHz)
Cable TV 1 GHz
PkTools software included
Transport case included

DIMENSIONS & WEIGHT

230 x 161 x 76 mm / 2.5 kg approx.



Recommended options

OP-006-K  8VSB Constellation for US TV EXPLORER II



OP-005-19  Rack mount option for TV EXPLORER range



OP-009-D  DDP option



OP-009-T  DVB-T2 option for TV EXPLORER HD



OP-009-OP  Selective OPM for FTTh (TV EXPLORER HD / HD+ / HD LE). PC or APC. Factury built-in



PA-009-OP  Selective OPM for FTTh (TV EXPLORER HD / HD+ / HD LE). PC or APC.  Upgrade at calibration center



OP-009-OS  5-2500 MHz Optical to RF converter  (TV EXPLORER HD / HD+ / HD LE). PC or APC. Factory built-in



PA-009-OS  -2500 MHz Optical to RF converter  (TV EXPLORER HD / HD+ / HD LE). PC or APC.  Upgrade at calibration center



OP-009-PS  Selective OPM for FTTh and 5-2500 MHz Optical to RF converter (TV EXPLORER HD / HD+ / HD LE). PC or APC. Factory built-in



PA-009-PS  Selective OPM for FTTh and 5-2500 MHz Optical to RF converter (TV EXPLORER HD / HD+ / HD LE). PC or APC. Upgrade at calibration center
