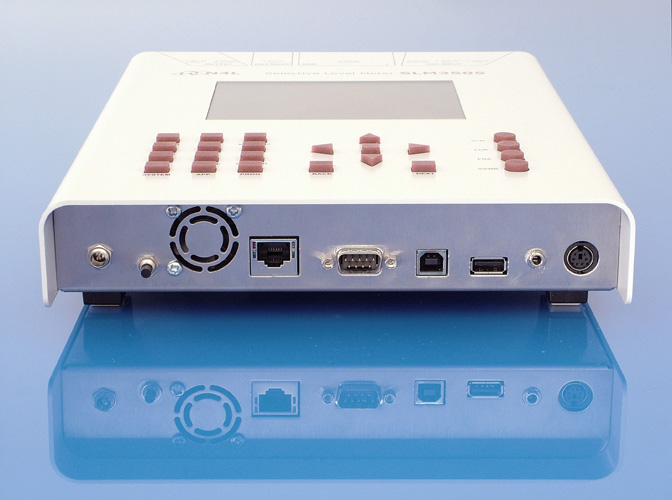

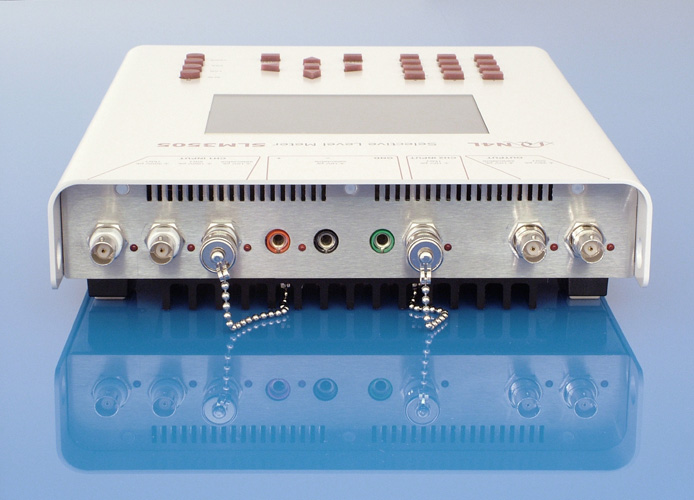

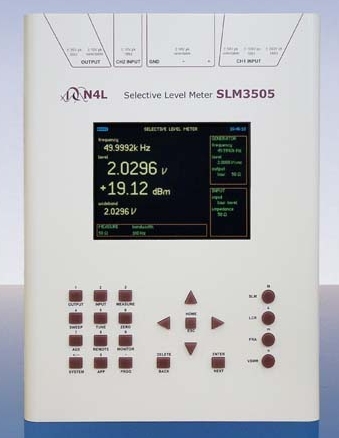

Precision Portable Selective Level Meter 5Hz..5MHz N4L SLM3505

Code: N4L SLM3505



Datasheet PDF, 0.34 Mb


Description

  • Frequency range 5Hz to 5MHz
  • Low and High level generators

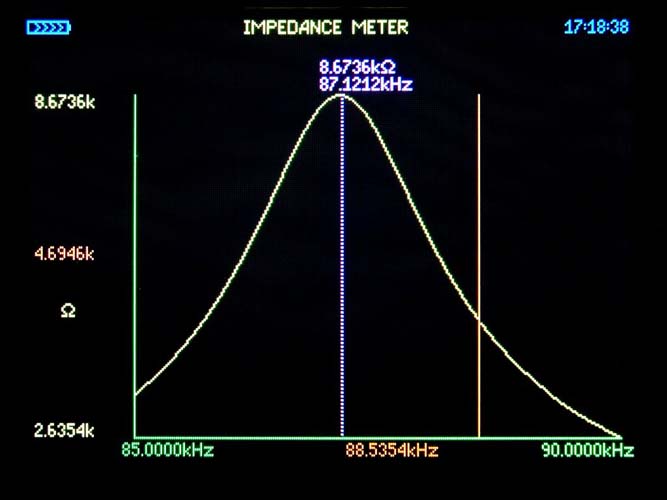

  • Impedance analyzer
  • Oscilloscope mode
  • Mains / 12 volt dc / internal battery operation
  • Selectable inputs up to 300 Vpk
  • Dual frequency SLM mode
  • VSWR Meter
  • Line trap/tuner test
  • Supplied complete with rugged flight case


Comparison Chart





SLM1700
Economy

SLM2200
Isolated HV input

SLM3505
Colour portable

Measurement
channels:

Frequency range

10mHz to 1MHz

10mHz to 2MHz

5Hz to 5MHz

Inputs

2

2

1 x 10Vpk 1MO
1 x 10Vpk with
(3 x selectable O)
1 x 100Vpk 50O
1 x 300Vpk 1M O
1 x unbalanced pair

Input design

Single ended differential floating to ±100V

±500V pk isolated

±300Vpk isolated

Generator:

Low level

10V pk

10V pk

10Vpk

Hi level





2W into 50O (35Vpk)

Waveforms

sine, triangle, square, sawtooth, DC

sine, triangle, square, sawtooth, FSK,
harmonics DC

sine, square, triangle, white noise

Functions:

Selective Level Meter

x

x

x

RMS Voltmeter

x

x

(ac only)

Signal generator

x

x

x

Impedance analyzer

x



x

Oscilloscope

x

x

x

VSWR





x

Hardware:

Display

Mono LCD

Electroluminescent

Colour LCD

Data storage memory

124k

124k

1GB

USB memory stick port





x

RS232

x

x

x

GPIB

x

x



LAN

x



x

USB comms





x

Universal Line Power

x

x

Via Adaptor

Internal battery operation





x

12 Volt external power input





x
