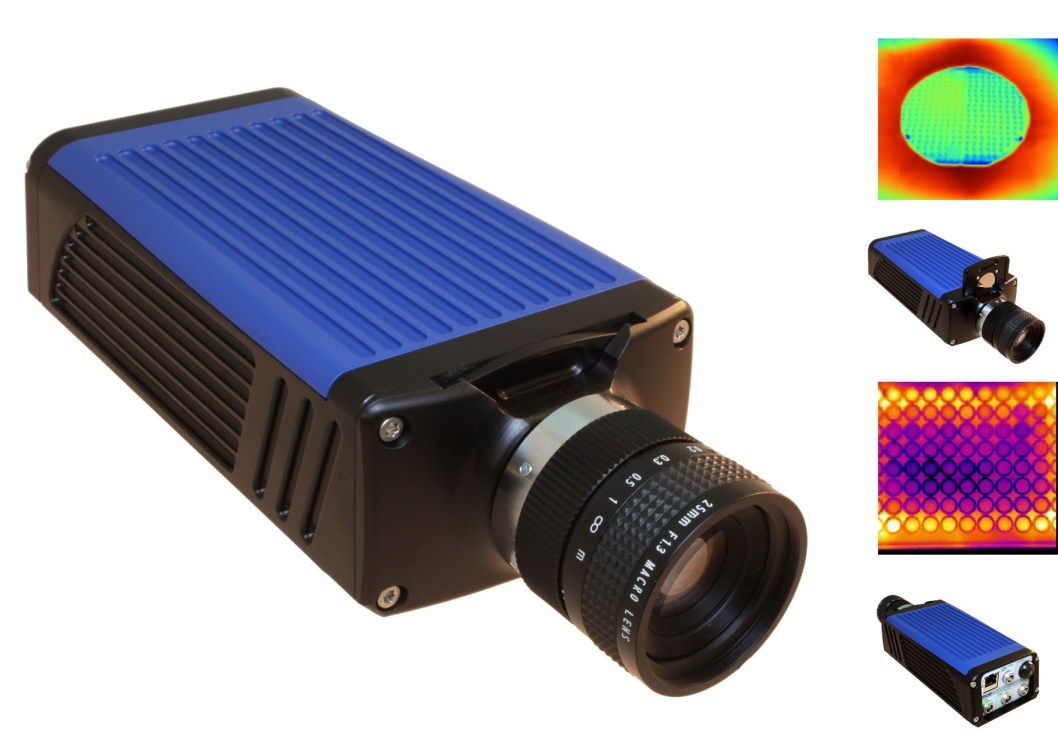

Flir SC2500 Near Infrared Camera with Extended Wavelength from 0.9..1.7 µm
OBSOLET PRODUCT ( * OUT OF USE )

Code: Flir SC2500




Description

Near IR Camera with Extended Wavelength from 0.9 µm to 1.7 µm



The FLIR SC2500 provides extraordinary sensitivity in the shortwave region of the infrared spectrum. It's unique embedded filter holder makes this camera a highly versatile instrument for a wide range of applications.

Typical applications are laser beam profiling, drug concentration evaluation, seeing through blood and paint, performing spectral data collection of chemicals, food inspections, furnace temperature measurements, …



Choice of detector
Equipped with a InGaAs (Indium Gallium Arsenide) detector, the SC2500 operates in the 0.9 to 1.7 micrometer waveband (optional 0.4 - 1.7µm).



High sensitivity
The SC2500 series offers an extremely high sensitivity and a low noise operation.



Ultra high frame rate with windowing
The SC2500 produces crisp images at a full frame rate of 340 Hz, 15 kHz with windowing. This allows capturing 14-bit data at high speed



Accurate non-temperature measurement
The FLIR SC2500 provides accurate non-contact temperature measurements. The camera is able to be calibrated for temperatures up to 3.000°C.



Spectral tuning capabilities
The SC2500 features a removable one inch filter. This allows selecting spectral sub-bands to adapt the system’s response to the specific application.



Easy integration in other instruments
The fully removable C-Mount interface makes the camera easy to be integrated into complex optical instruments such as interferometers or spectrometers.





Imaging performance

Sensor type

InGaAs (VisGaAs optional)

Spectral ranges

0.9 - 1.7 µm (0.4 - 1.7 µm optional)

Waveband

NIR

Pixel Resolution

320x256

Pixel Pitch

30µm

Dynamic Range

14 bit





Measurement

Camera Temp Calibration

Yes

Standard Camera Calibration Range

400ºC up to 3000ºC





Interfaces

Digital Data Output

GigE

Analog Video

Composite

Command & Control

GigE

FPA Windowing

Arbitrary Size and Location

Analog Input

Lock-In only





Focus

Motorised Focus

No

Auto Focus

No

Built-in IRIG-B timing

No

Triggering Options

Yes





Functions

SDK Support

Yes

Ambient Drift Compensation

Yes

Temp. Measurement Accuracy

+/-1% or +/-1°C

Digital Full Frame rate

340 Hz full frame up to 15 kHz with windowing

Lab View Compatibility

Yes

Matlab Compatibility

Yes





Optics

f/#

Lens dependent

Filter Options

One filter holder

Available optics

6mm - 77°x 65° (F/1.4)
12mm - 44°x 36° (F/1.4)
16mm - 33°x 27° (F/1.4)
25mm - 22°x 17° (F/1.6)
35mm - 16°x 12° (F/1.6)
50mm - 11°x 8.8° (F/2)
75mm - 5.5°x 4.4° (F/2.5)
100mm - 5.5°x 4.4° (F/2.8)
300mm - 1.8ºx 1.5º (F/4.5)
1000mm - 0.55ºx 0.44º (F/10)
