Flir Orion SC7000 Multispectral Infrared Camera
OBSOLET PRODUCT ( * OUT OF USE )

Code: Flir Orion SC7000




Description

The FLIR SC7000 Orion Series are infrared multispectral imagers capable of producing IR sub-band images at video rates within the SW-MWIR or LWIR region. Infrared radiation from the scene under investigation is collected through a front lens, designed to offer minimal aberration across the full IR wavelength range.



Configurable filter wheel setup to match different type of analysis
The Orion integrates a high speed 2x4 position filter wheel. It is inserted between the lens and the focal plane. The rotation of this filter wheel is driven synchronously with the     FPA clocking, such that a single image snap shot is obtained for each particular filter position.



Versatile system with traditional thermal imaging camera mode
The Orion SC7000 is capable of capturing up to 400 frames per second in 320 x 240 pixels, each high quality image being captured in snap-shot mode. The integration time is variable by software and can be different for each filter. An image is captured for each given position of the filter wheel, providing true multispectral imaging. The Orion SC7000 Series can also be used as a normal IR camera at full speed by removing or stopping the filter wheel. In addition to image acquisition, ALTAIR software also processes the acquired image data.







FLIR Orion SC7000 Specifications





ORION 7200-7500 / 7900VL

ORION 7600

Imaging performance

Sensor type

InSb / MCT

InSb

Pixel Resolution

320x256

640x512

Pixel Pitch

30µm

15µm

Spectral ranges

1.5 - 5.1 µm for InSb (BB)

1.5 - 5.1 µm for InSb (BB)



7.7 - 11.5 µm for SC7900VL









Measurement

NETD

<20mk for InSb / <25mk for MCT

<20mk

Standard Camera Calibration Range

5ºC to 300ºC for InSb 5ºC to 150ºC for MCT

5ºC to 300ºC for InSb

Optional Camera Calibration Range

-20°C to 300ºC / -20ºC to 150ºC
5ºC to 1500ºC / 5ºC to 150ºC
up to 2500ºC / up to 1.500°C
up to 3000ºC (for InSb only)

-20°C to 300ºC
5ºC to 1500ºC
up to 2500ºC
up to 3000ºC

Digital Full Frame rate

InSb: 170 Hz - 380 Hz full frame
up to 11 kHz - 31.8 KHz with windowing
MCT: 230 Hz full frame
up to 25 kHz with windowing
Limited to 400Hz in ORION mode

InSb: 100 Hz full frame
up to 3.425 kHz with windowing
Limited to 400 Hz in ORION mode







Interfaces

Available optics

SWB 25mm - 22°x 17° - 27mm - 20°x 16° in SWB
50mm - 11°x 8.8°
100mm - 5.5°x 4.4°
200mm - 2.75°x 2.2°
MWB & LWB
12mm - 44°x 36°
25mm - 22°x 17°
50mm - 11°x 8.8°
100mm - 5.5°x 4.4°
200mm - 2.75°x 2.2°
Close up x1 - 9.6x7.7mm
Close up x3 - 3.2x2.6mm
Close up x1 - 9.6x7.7mm Working distance 300mm (not available in LWB)

SWB
12mm - 44°x 36°
25mm - 22°x 17°
50mm - 11°x 8.8°
100mm - 5.5°x 4.4°
200mm - 2.75°x 2.2°
Close up x1 - 9.6x7.7mm
Close up x3 - 3.2x2.6mm
Close up x1 - 9.6x7.7mm WD 300mm



General

Imaging performance

Waveband

MW

Dynamic Range

14 bit, 16 bit with TRE

Camera Temp Calibration

Yes

Ambient Drift Compensation

Yes

Temp. Measurement Accuracy

+/-1% or +/-1°C

Hypercal / CNUC Functionality

Yes



Interfaces

Analog Input

Yes

Analog Video

Composite or S-Video

Digital Data Output

GigE, Camera Link

Command & Control

GigE, Camera Link

FPA Windowing

Arbitrary Size and Location

f/#

f/3.0 for InSb and f/2.0 for MCT

Filter Options

High speed 8 filters wheel with rotation driven synchronously with FPA clocking. 400 Hz max.



Focus

Motorised Focus

Optional

Auto Focus

Optional

Built-in IRIG-B timing

Optional

Triggering Options

Yes

SDK Support

Yes

Lab View Compatibility

Yes

Matlab Compatibility

Yes



More products FLIR

FLIR GF77 GAS EMISSION CAMERA FOR METHANE, SULFUR HEXAFLUORIDE (SF6), ETHYLENE, AMMONIA

• Detect Gas Leaks at Substations and More
• The FLIR GF77 is a groundbreaking uncooled optical gas imaging camera
• with interchangeable lens options that detect methane, sulfur hexafluoride (SF6), ethylene, ammonia, and other gas emissions.



FLIR TG165-X

• 80 × 60 thermal resolution
• -25°C to 300°C (-13°F to 572°F)
• Interpret images with MSX®, which enhances thermal images with crisp visual details



FLIR G304 INFRARED CAMERA FOR DETECTION OF HYDROFLUOROCARBON, REFRIGERANT, AND OTHER INDUSTRIAL GASES IN PRODUCTION FACILITIES AND CHEMICAL PLANTS

• The FLIR G304 is an innovative Optical Gas Imaging (OGI) camera
• used to detect possible hydrofluorocarbon, refrigerant, and other industrial gases in production facilities and chemical plants.



FLIR G346 INFRARED CAMERA FOR EMISSION DETECTION OF CARBON MONOXIDE NITROUS OXIDE N2O

• The FLIR G346 is an innovative Optical Gas Imaging (OGI) camera
• used to detect carbon monoxide (CO), nitrous oxide (Nâ‚‚O) and other dangerous and environmentally harmful gases in steel plants and industrial manufacturing facilities

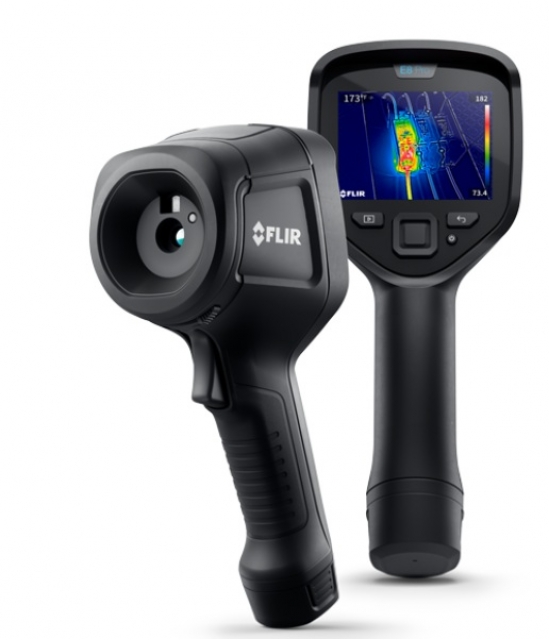

FLIR E8 PRO THERMAL CAMERA

• 320 × 240 thermal resolution
• Measures temperatures up to 550°C (1022°F)
• <40 mK thermal sensitivity for maximum clarity and accuracy



FLIR E5-PRO THERMAL INFRARED CAMERA

• 160 × 120 thermal resolution
• Measures temperatures up to 400°C (752°F)
• <60 mK thermal sensitivity

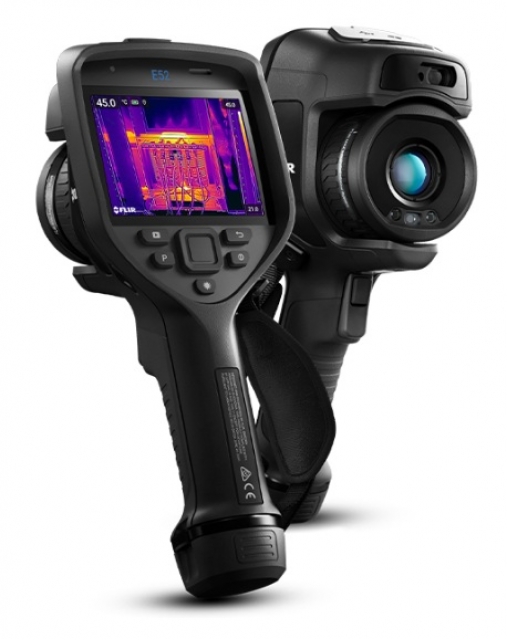

FLIR E52 THERMAL CAMERA 240X180PXL

• 240 × 180 thermal imaging
• Measures temperatures up to 550°C (1022°F)
• 1-Touch Level/Span adjustable contrast


FLIR C3-X COMPACT INFRARED CAMERA

• 128 × 96 thermal resolution
• Measures temperatures up to 300°C (572°F)
• Automatic level/span



FLIR G343 INFRARED CAMERA FOR CARBON DIOXIDE EMISSIONS CO2

• The FLIR G343 is an innovative Optical Gas Imaging (OGI) camera
• used to visualize possible carbon dioxide (COâ‚‚) gas leaks in complex systems including enhanced oil recovery, carbon capture systems, and hydrogen-cooled power generators.

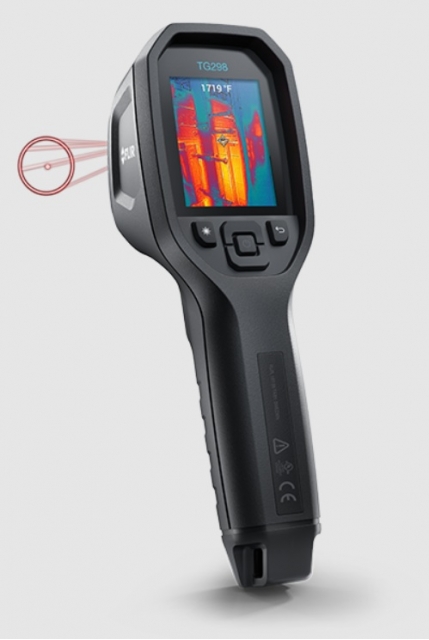

FLIR TG298 INFRARED CAMERA
