The HF-Series are rugged handheld thermal imaging cameras that can be used for firefighting applications. Thermal imaging cameras do not need any light whatsoever to create a crisp image. And maybe even more important for firefighters, they can also see through smoke. With a thermal imaging camera you can remotely assess the effectiveness of ongoing firefighting activities, assist with the direction of extinguishing activity even in smoke filled areas outside, find your way around in the ever-growing smoky environment due to extinguishing efforts and/or in areas already extinguished but filled with residual smoke. A thermal imaging camera will also give you useful information about parts of a fire that are still hot. These areas need to be extinguished again in order to prevent spontaneous recombustion.

The HF-Series are extremely affordable units. From now on, every fire-fighter can be equipped with a thermal imaging camera.

The HF-Series produce thermal images of 320 x 240 pixels on which the smallest of details can be seen. Advanced internal camera software delivers a crisp image without the need for user adjustments.

The HF-324 is equipped with a 19 mm lens providing a 24° field of view. It offers an excellent combination of range performance and situational awareness. For longer range performance, the HF-324 can be equipped with a 2X extender which offers a 12° field of view.
Users that want to see farther can choose for the HF-307. Equipped with a 65 mm lens, providing a 7° field of view.

A 2X digital zoom allows you to have an even closer look at the situation when necessary.

Weighing 660 grams, batteries included, the H-Series are extremely compact and extremely light systems.
They are ideal for go-anywhere operations, in all circumstances. They are IP67 rated and operate between -20°C and +60°C.

Ergonomic and easy-to-use, the HF-Series are fully controlled with just 5 buttons on top of the unit. Conveniently placed, all buttons are right underneath your fingertips.

Both the HF-324 and HF-307 are available in different versions.
The standard version of the HF-Series contains a lot of features that are useful for firefighters. It will help them see through smoke in practically all weather conditions.

The Pro version of the HF-324 and HF-307 comes with a number of useful features such as:
-   Image storage for evidence gathering
-   Video storage
-   USB2 connection
-   Real-time clock

FLIR HF-Series

HF-324

HF-307

IMAGING PERFORMANCE

Detector type

Focal plane array, uncooled Vanadium Oxide (VOx) Microbolometer: 320 x 240 pixels

Spectral range

7.5 to 13.5 µm

Field of view

24° (H) x 18°(V) with 19 mm lens

7° (H) x 5°(V) with 65 mm lens

Field of view with 2X extender

12.0° (H) x 9°(V) with 19 mm lens

Thermal sensitivity

<50 mK at f/1.0 at +25°C

Image frequency

8.3 Hz Pal / 7.5 Hz NTSC

Focus

HF-324: Fixed - HF-324 with 2X extender and HF-307: Manual

Electronic zoom

Image processing

Digital Detail Enhancement (DDE)

IMAGE PRESENTATION

Viewfinder

Built-in display - Color QVGA LCD

Video output

NTSC or PAL composite video; RCA jack

Image Polarity

White hot / black hot; selectable

POWER

Requirements

4 AA Batteries; rechargeable NiMH, non rechargeable Li-Ion or Alkaline

Battery life

> 5 hours on NiMH batteries - 120 hours in stand-by with NiMH batteries

ENVIRONMENTAL SPECIFICATIONS

Operating temperature range

-20°C to +60°C

Storage temperature range

-40°C to +75°C

Humidity non condensing

5% to 95%

Encapsulation

IP67

Drop

Operational after 1 meter drop onto concrete

PHYSICAL CHARACTERISTICS

HF-324

HF-324 with extender

Camera weight incl. Lens and batteries

660 grams

970 grams

Camera size (L x W x H)

240 mm x 85 mm x 60 mm

265 mm x 85 mm x 75 mm

Shipping weight (camera + packaging)

2 kg

Shipping size (camera + packaging) (L x W x H)

420 mm x 155 mm x 250 mm

Shipping weight (2X extender + packaging)

The 2X extender is being shipped in a separate box of approx. 1 kg

PRO Version only

IMAGE STORAGE

Format

Standard JPEG - 1 GB SD-card

Storage functions

Single image

VIDEO STORAGE

Format

MPEG4 - 1 GB SD-card

Storage functions

9Hz, full frame up to limit of SD-card, approx. 8 seconds / MB

INTERFACES

SD-card

1 slot

USB2

Image transfer to PC

PHYSICAL CHARACTERISTICS (PRO)

HF-324 Pro

HF-324 with extender Pro

Camera weight incl. Lens and batteries

660 grams

970 grams

Camera size (L x W x H)

240 mm x 85 mm x 60 mm

265 mm x 85 mm x 75 mm

Shipping weight (camera + packaging)

3 kg

Shipping size (camera + packaging) (L x W x H)

420 mm x 265 mm x 250 mm

Standard accessories

Standard Package:

HF-307 or HF-324 handheld thermal imaging camera, 4 rechargeable batteries, hot shoe charging and video output attachment, Video output cable, AC charger, lanyard, manual Extra for Pro Version: 1 GB SD-card, USB cable, carrying bag

Recommended options

Optionally available:

2X extender ring (for HF-324 only), pelican case upgrade

More products FLIR

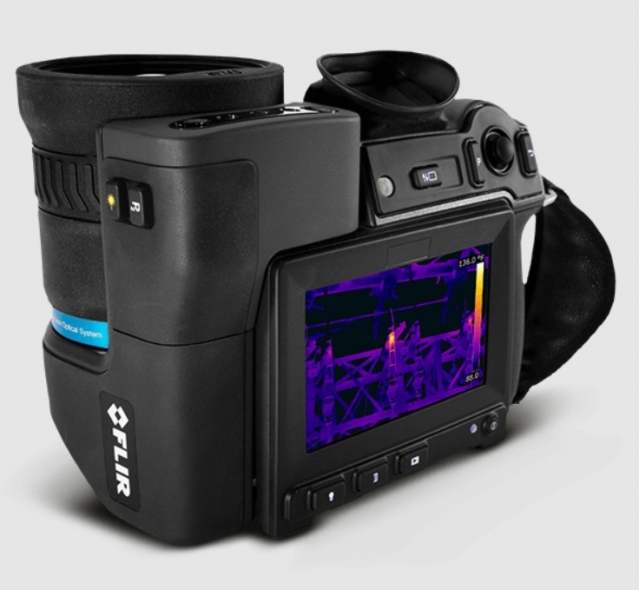

FLIR T1020 HD THERMAL INFRARED CAMERA 1024X768

• 1024 × 768 thermal resolution
• Measures temperatures up to 2000°C (3632°F)
• <20 mK NETD

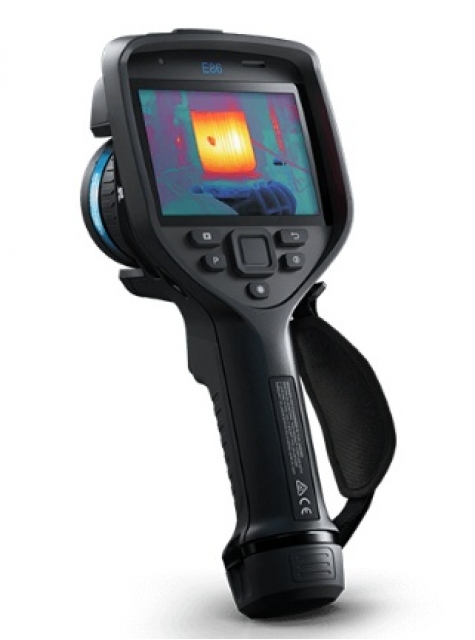

FLIR E86 INFRARED CAMERA 464X348

• 464 × 348 thermal imaging
• Measures temperatures up to 550°C (1022°F)
• Laser-assisted autofocus

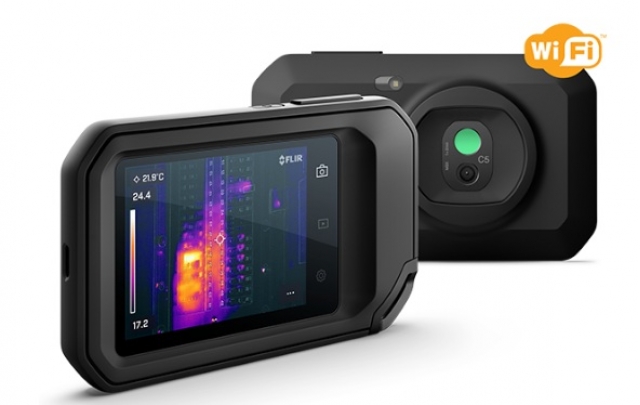

FLIR C5 COMACT INFRARED CAMERA

• 160 × 120 thermal resolution
• Measures temperatures up to 400°C (752°F)
• 1-Touch Level/Span adjustable contrast

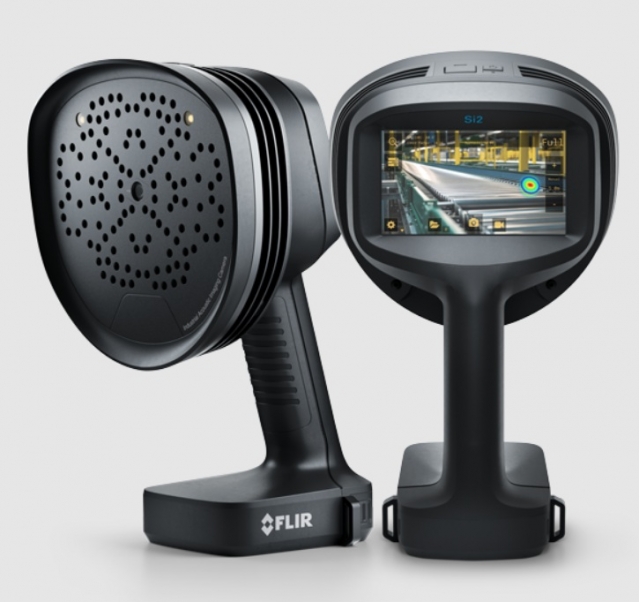

FLIR SI2-LD ACOUSTIC CAMERA FOR AIR LEAK DETECTIONS AND MECANIC FAULTS BEARING

• Detects, locates, and measures compressed air and gas leaks;
• including bearing fault detection, from up to 200 m (656 ft) away
• Built-in measurement and cost analysis for industrial gases including ammonia, hydrogen, CO2, methane, helium, and argon
• One-handed operation with automatic tuning, 8x zoom, and a 12 MP digital camera
• Mechanical fault mode, automatic selection, and optimization of filters simplifies finding critical mechanical issues, such as bearing
• faults

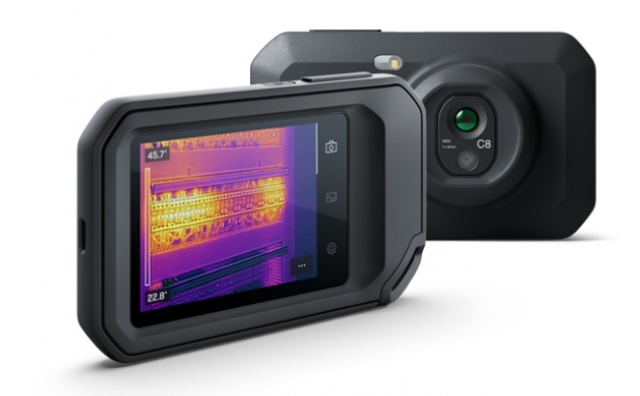

FLIR C8 COMPACT INFRARED CAMERA

• 320 × 240 thermal resolution
• Measures temperatures up to 450°C (842°F)
• 1-Touch Level/Span adjustable contrast

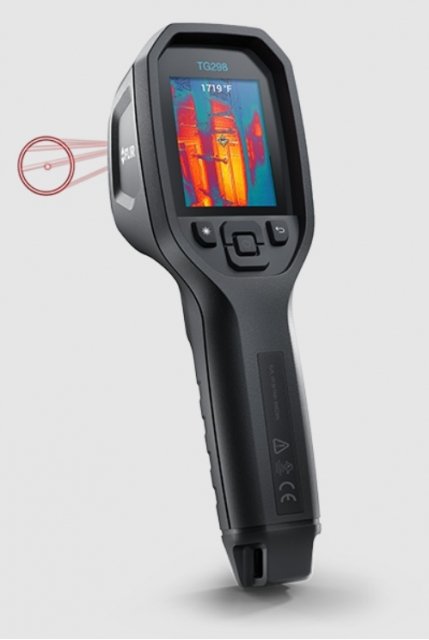

FLIR TG298 INFRARED CAMERA

• 160 × 120 thermal resolution
• -25°C to 1080°C (-13°F to 1976°F)
• Interpret images with MSX®, which enhances thermal images with crisp visual details

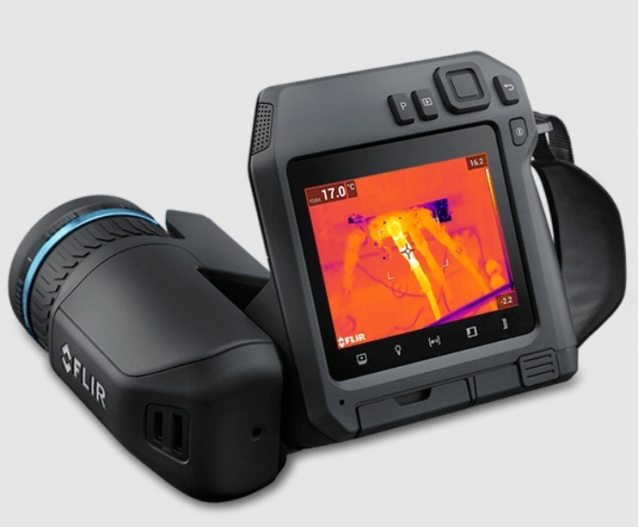

FLIR T540 INFRAED CAMERA

• 464 × 348 thermal resolution
• Measures temperatures up to 1500°C (2732°F)
• 1-Touch Level/Span adjustable contrast

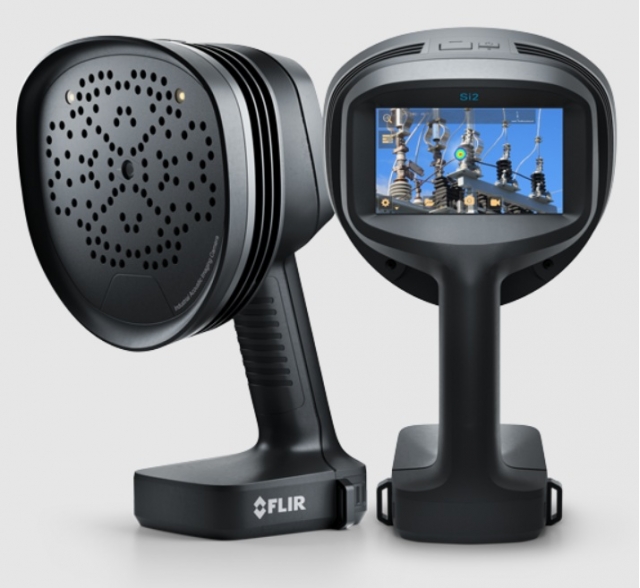

FLIR SI2-PD ACOUSTIC CAMERA FOR PARTIAL DISCHARGE DETECTION

• Detectează, localizează, clasifică și evaluează defectele de descărcare parțială (PD) de la până la 200 m (656 ft) distanță
• Identifică PD de 30 de ori mai mici ca niciodată
• Evaluarea severității problemelor PD, bazată pe cameră și pe software, și clasificarea tipului de PD oferă cel mai bun suport decizional din clasa sa
• Operare cu o singură mână cu reglare automată, zoom 8x, o cameră digitală de 12 MP și clasificare IP54

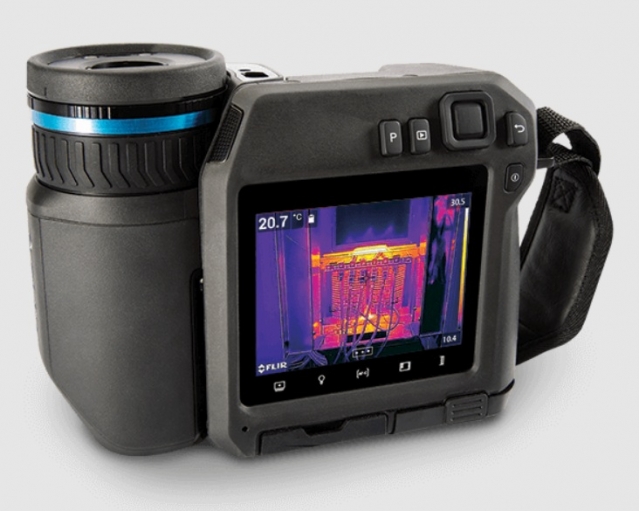

FLIR T560 INFRARED CAMERA FOR PROFESSIONAL

• 640 × 480 thermal resolution
• Measures temperatures up to 1500°C (2732°F)
• 1-Touch Level/Span adjustable contrast

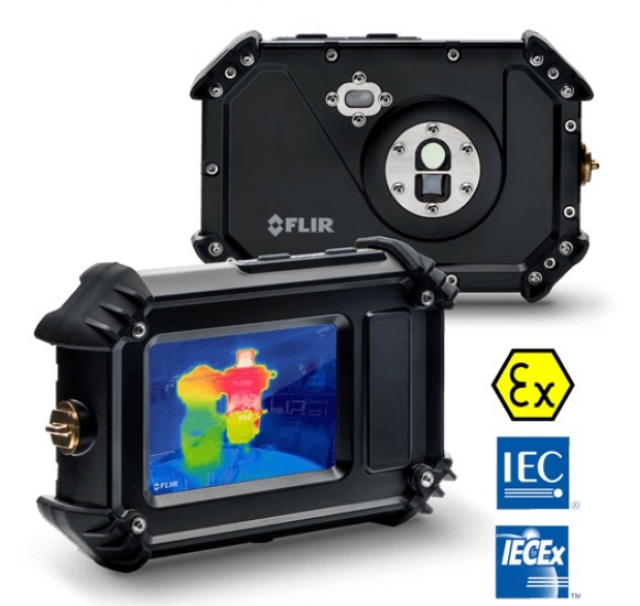

FLIR CX5 COMPACT INFRARED CAMERA WITH ATEX EXPLOSION PROOF FOR HAZARDOUS LOCATION
