Logarithmic Periodic Dipole Antenna 400MHz..2.5GHz Aaronia HyperLOG 4025

Code: Aaronia HyperLOG 4025



Datasheet PDF, 0.5 Mb

Description

  • Compatible with any Spectrum Analyzer brand
  • Design: Directional Logarithmic-Periodic
  • Frequency range: 400MHz to 2,5GHz
  • Max. input power: 100W AM (400MHz)
  • Nominal impedance: 50 Ohm
  • VSWR: <1:2 (typ.)
  • Gain: 4dBi (typ.)
  • Antenna factor: See data sheet graph
  • RF connection: SMA (f) or N (see optional adapter)
  • Tripod connection: 1/4"
  • Calibration points: 211 (10MHz-steps)
  • Dimensions (L/W/D):(590x360x30) mm
  • Weight: 1200gr
  • Warranty: 10 years



Highlights:

  • Includes exhaustive calibration data (on CD)
  • Special designed radome for perfect antenna protection
  • Gold coating for stable performance
  • Wide bandwidth
  • Coverage of various mobile radio frequency ranges
  • Suitable for field-strength and EMC measurements due to high precision
  • Compact and sturdy design
  • Can be used in the lab and for open-field application





Examples for possible analysis and measurements within frequency range (400MHz - 2,5GHz):

  • ISM434
  • LTE800
  • ISM868
  • GSM900
  • GSM1800
  • GSM1900
  • DECT
  • UMTS
  • WLAN
  • Microwave
  • WiFi
  • Bluetooth
  • etc.


Standard accessories

  • HyperLOG 4025 directional EMC measurement antenna
  • Typical calibration data with 211 calibration points (10MHz steps!) on CD
  • Large aluminum carrying case with foam protection
  • Pistol grip with mini tripod function
  • Aaronia SMA tool set with over-torque protection


More products AARONIA

EMI/ EMC SPECTRUM ANALYZING GAUSSMETER 1HZ..30MHZ AARONIA SPECTRAN NF5030

• Frequency range: 1Hz to 1MHz (30MHz)
• Magnetic field (Tesla): 1pT to 2mT (typ.) expandable up to a amount of Tesla with PBS1
• Magnetic field (Gauss): 10µG to 20G (typ.) (only with option 006)
• Only with Option 009, 24bit resolution: 10nG to 20G (typ.) (Gauss)
• Electric field: 0,1V/m to 20kV/m (typ.)
• Resolution (RBW): 0,3Hz to 1MHz (1-3-10 step)
• Units: V, V/m, T, G, A/m


ACTIVE BICONICAL EMC BROADBAND ANTENNA 30MHZ..1GHZ AARONIA BICOLOG 30100X

• Compatible with any Spectrum Analyzer brand
• Design: Biconical (radial isotropic)
• Frequency range: 30MHz to 1GHz
• Max. Output power: 100mW AM
• Nominal impedance: 50 Ohm
• Gain: 1dBi to 41dBi


AARONIA MDF 9400 MAGNETIC FIELD TRACKING ANTENNA 9KHZ..400MHZ

• Compatible with any Spectrum Analyzer brand
• Design: Loop
• Frequency Range: 9kHz - 400MHz (1MHz - 40MHz with max. +/- 0,3dB deviation)
• Max. input level: 5W (usable as transmitting antenna)
• Conversion factor: 1 (0 dB A/m is 0dBm)
• Impedance: 50 Ohm
• RF connector: SMA (female)


AARONIA OMNILOG 90200 OMNI-DIRECTIONAL ISOTRPIC RADIAL ANTENNA 700MHZ..2.5GHZ

• Design: Omni-Directional (radial isotropic)
• Frequency range: 700MHz to 2,5GHz
• Max. input power: 40W AM (800MHz)
• Nominal impedance: 50 Ohm
• Gain: -2Bi to 2dBi (typ.)
• Antenna factor: See data sheet graph
• RF connection: SMA (m) or N (see optional adapter)


ACTIVE EMC BROADBAND ANTENNA + PREAMPLIFIER 700MHZ..2.5GHZ AARONIA HYPERLOG 7025X

• Compatible with any Spectrum Analyzer brand
• Design: ACTIVE directional Logarithmic-periodic
• Frequency range: 700MHz to 2,5GHz
• Nominal impedance: 50 Ohm
• VSWR: <1:2 (typ.)
• Gain: 44dBi (typ.)


BROADBAND RF ANTENNA FOR TESTING 380MHZ..10GHZ AARONIA HYPERLOG 30100

• Compatible with any Spectrum Analyzer brand
• Design: Directional Logarithmic-Periodic
• Frequency range: 380MHz to 10GHz
• Max. input power: 100W AM (400MHz)
• Nominal impedance: 50 Ohm
• VSWR: <1:2,5 (typ.)
• Gain: 5dBi (typ.)


YAGI DIRECTIONAL BROADBAND ANTENNA 700MHZ..4GHZ AARONIA HYPERLOG 7040

• Compatible with any Spectrum Analyzer brand
• Design: Logarithmic-Periodic (LogPer)
• Frequency range: 700MHz to 4GHz
• Max. input power: 50W AM (800MHz)
• Nominal impedance: 50 Ohm
• VSWR: <1:2 (typ.)
• Gain: 4dBi (typ.)


BICONICAL RADIAL ISOTROPIC BROADBAND ANTENNA 50MHZ..700MHZ AARONIA BICOLOG 5070

• Compatible with any Spectrum Analyzer brand
• Design: Biconical (radial isotropic)
• Frequency range: 50MHz to 700MHz
• Max. input power: 5W AM (100MHz)
• Nominal impedance: 50 Ohm
• Gain: -18dBi (@100MHz)

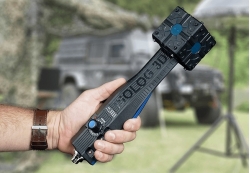

AARONIA ISOLOG 3D RF ISOTROPIC TRACKING ANTENNA ARRAY 9KHZ..40GHZ
