Environment Testers | 3M QUEST

Particulates Counter and Air Quality Analyzer for monitoring CO,CO2, VOC, Temperature and Relative humidity 3M EVM-7

Code: 3M EVM-7

Datasheet

PDF, 11.06 Mb

Description

3M™EVM 7 Environmental Monitor Kit, with CO, CO2, and PID Sensors 1 kit/cs

3M ID 70071580123 UPC# 00051131486034 3M Product Number EVM-7/CO

The EVM-7 monitors both particulates and air quality in one compact instrument. The EVM-7 provides a lower cost of ownership by combining three instruments into one.

Benefits

Kit includes base model with Particulate sensor, PID (PPM) sensor, CO2 sensor, CO sensor, (2) 37 mm gravimetric filter cassettes and standard accessories.
Simultaneous measurement of particulate, CO, CO2, VOC, Temperature and Relative Humidity concentrations
Dial-in rotary impactor
90 degree light scattering photometer
Built-in sampling pump for gravimetric analysis

Suggested Applications

Work Site Monitoring
Air Quality Assessment
Military Site Evaluation
Construction / Mining Site Monitoring
Regulatory Compliance
Time-History Assessment
Industrial Fence Line Monitoring
Industrial Hygiene Surveys
Toxicology & Epidemiology Studies

This durable, easy-to-use model provides simultaneous worksite monitoring of: particulate mass concentrations (0.1-10 um), select volatile organic compounds, select toxic gases, carbon dioxide, relative humidity, temperature and air velocity (with purchase of optional accessory).

Specifications

Battery Life	8 hours
Data Logging	User Selectable Intervals
Measurement Parameters	Level, Min, Max, Avg, STEL, TWA
Net Weight	18 Ounce
Power Source	Lithium-Ion
Product Type	Particulate and Air Quality Monitor
Recommended Application	Health & Safety Testing
Recommended Industry	Automotive, Construction, Food & Beverage Manufacturing, Manufacturing, Metal Production & Fabrication, Military Maintenance, Repair and Operation (MRO), Mining, Oil & Gas, Pharmaceutical, Transportation
Sensors Available	Included Sensors: Relative Humidity, Temperature, CO2, CO, Particulates, PID ppm Available Sensors
Standards/Approvals	CE, RoHS

Standard accessories

The EVM-7/CO includes

base model with PID (ppm) Sensor,
CO2 Sensor,
CO Sensor,
two 37mm Gravimetric Filter Cassettes (for pump protection; one in unit and one spare),
53-263 12V DC Universal Input Power Supply,
53-575 USB Cable,
100-456 Silicone Dielectric Grease for Impactors,
74-080 PID Cleaning ,
74-090 10 pack Pump Protection Filters,
74-720 Dust Zero Calibration Filter Assembly,
74-726 Toxic Calibration Adapter and
74-718 Storage Case.

Recommended options

3M™EVM 7 Environmental Monitor Kit, with CO, CO2, and PID Sensors 1 kit/cs

3M™EVM 7 Advanced Particulate and Air Quality Monitor Kit 1 kit/cs

3M™ EVM 4/CO Indoor Air Quality Monitor Kit, with CO Sensor 1 kit/cs

3M™ EVM 4 Indoor Air Quality Monitor Kit 1 kit/cs

3M™ EVM 3 Particulate Air Quality Monitor Kit 1 kit/cs

More products 3M QUEST

SP-SE-1-1/1-AC3 70071621075 3M SOUNDPRO SOUND LEVEL METER

• Accurately measures, documents and displays noise exposures to support hearing conservation
• Octave band analysis capability enables environmental noise monitoring, noise enforcement, and noise control evaluation
• Large displays with menu-driven interface
• Available in Class/Type 1 and Class/Type 2 models
• Removable SD memory card plus optional data logging
• Management Software DMS (optional) for
• advanced reporting and analysis

3M NOISEPRO NP-DLX-AC3 70071624525 NOISE DOSIMETER

• personal noise dosimeters
• industrial hygiene and safety professionals monitor noise
• empower worker self-management of noise exposure
• compact, yet rugged IP-65 casing, intrinsic safety certifications

3M™ ORGANIC VAPOR ETHYLENE OXIDE FORMALDEHYDE MONITOR

• 3M™ Organic Vapor Monitor
• 3M™ Ethylene Oxide Monitor
• 3M™ Formaldehyde Monitor

3M™ EDGE-4 10EG4-D-AC3 70071624442 NOISE DOSIMETER KIT FOR PERSONAL SECURITY

• Edge EG4 personal noise dosimeter offers advanced technology
• packaged in a cable-free,
• compact frame for a lighter,
• more ergonomic way to monitor noise levels.
• weighs 3 ounces and features a contoured shoulder mount.

3M NOISEPRO NP-CBL 70071579356 NOISE DOSIMETER

3M EDGEDOCK-1 EG5-D 70071579463 NOISE DOSIMETER

• Edge eg5 personal noise dosimeter series offers advanced technology
• packaged in an intrinsically safe
• cable-free
• compact frame for a lighter
• more ergonomic way to monitor noise levels
• Measurement Range: 70 to 140 Decibel

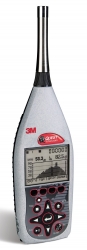

SP-SE-1-1/3 70071579992 3M SOUNDPRO SOUND LEVEL METER
